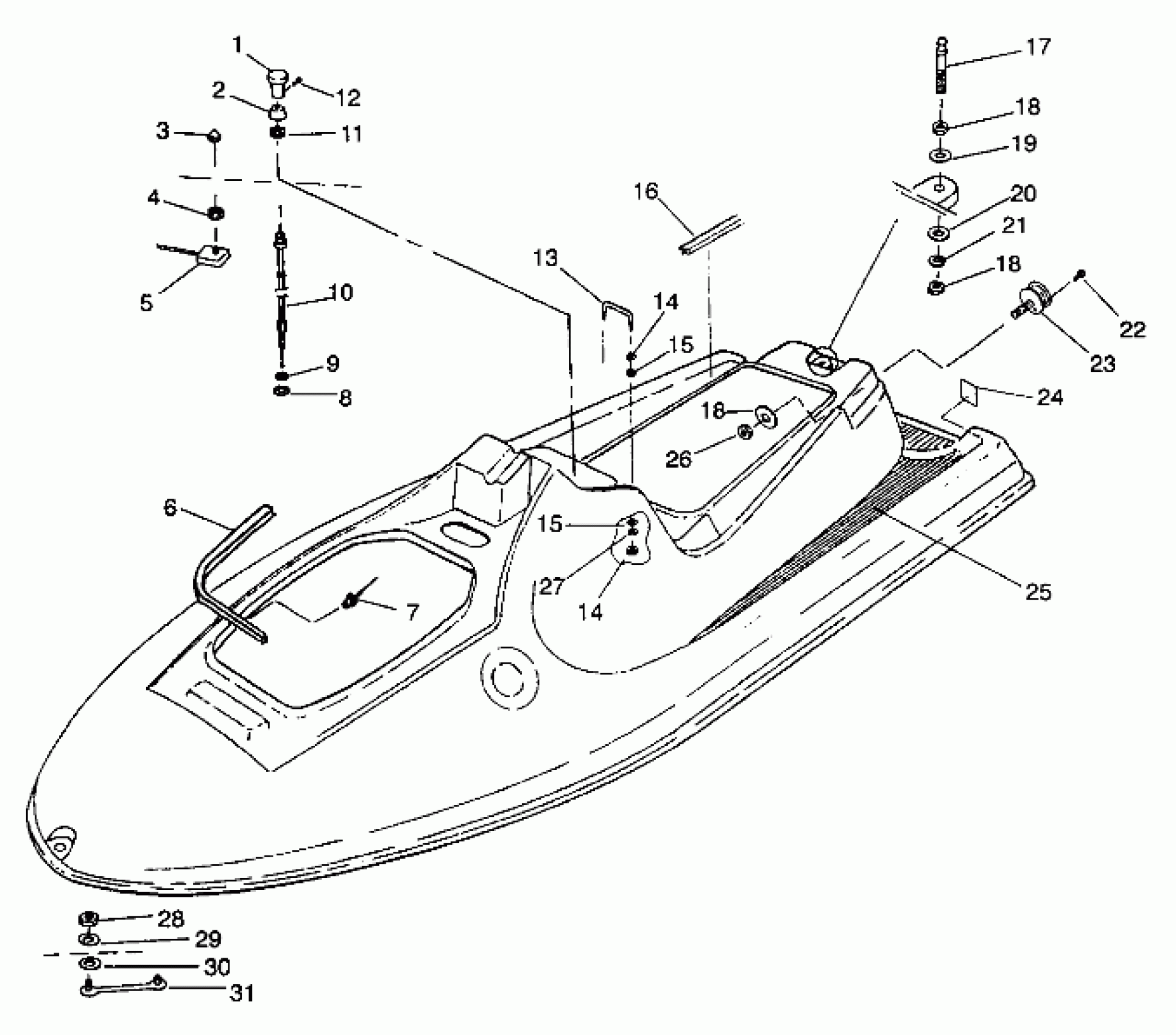

Polaris SLT - B944170 HULL and BODY ASSEMBLY SLT 750 B944170 (4925942594002A) Diagram

#

Description
Price

1

KNOB,CHOKE

2080004

$9.05

2

COVER

2080003

Unavailable

3

BOOT,THREADED,WATER

7080477

Unavailable

4

NUT,BRASS,(10)

7544501

$1.90

5

SWITCH,START.

4110155

$54.99

6

SEAL,STOR.COMPART.

5521319

$45.24

7

RIVET

7621231

$0.71

8

WASHER

2010126

Unavailable

9

NUT

2010125

$0.71

10

CABLE,CHOKE

7080505

$53.17

11

NUT

2080002

$2.06

12

Screw

2080005

$0.69

13

U-BOLT,SEAT RETAINER

5224512

Unavailable

14

NUT(10)

7542140

$1.14

14

NUT(10)

7542140

$1.14

15

WASHER(10)

7555836

$3.99

15

WASHER(10)

7555836

$3.99

16

SEAL,SEAT

5521318

Unavailable

17

PLUNGER,LATCH

5020753

Unavailable

18

NUT, HEX, S.S.,(10)

7542454

Unavailable

18

NUT, HEX, S.S.,(10)

7542454

Unavailable

18

NUT, HEX, S.S.,(10)

7542454

Unavailable

19

WASHER, FLAT(10)

7555845

Unavailable

20

WASHER, FLAT(10)

7555846

$5.56

21

WASHER, LOCK, S.S.(10)

7552607

$1.39

22

SCREW(10)

7512065

Unavailable

23

HOOK,SKI-TOW

7061002

$61.90

24

PAD,RH,HEEL

5830034

Unavailable

24

PAD,LH,HEEL

5830033

$5.19

25

PAD,LH,CTR.FOOTWELL,P.VELVET Substituted by 2871680-01

5810867-194

Unavailable

25

PAD,LH,F.F'WELL,P.VLT.

5810869-194

$18.10

26

NUT,HEX,S.S.(10)

7542455

Unavailable

27

WASHER, LOCK, S.S.(10)

7555838

Unavailable

28

NUT,NYLOK,S.S.(10)

7542133

Unavailable

29

WASHER, FLAT, S.S.(10)

7555839

Unavailable

30

WASHER,RUBBER(10)

7555870

$0.40

31

STRAP, BOW

2670150

$49.21
