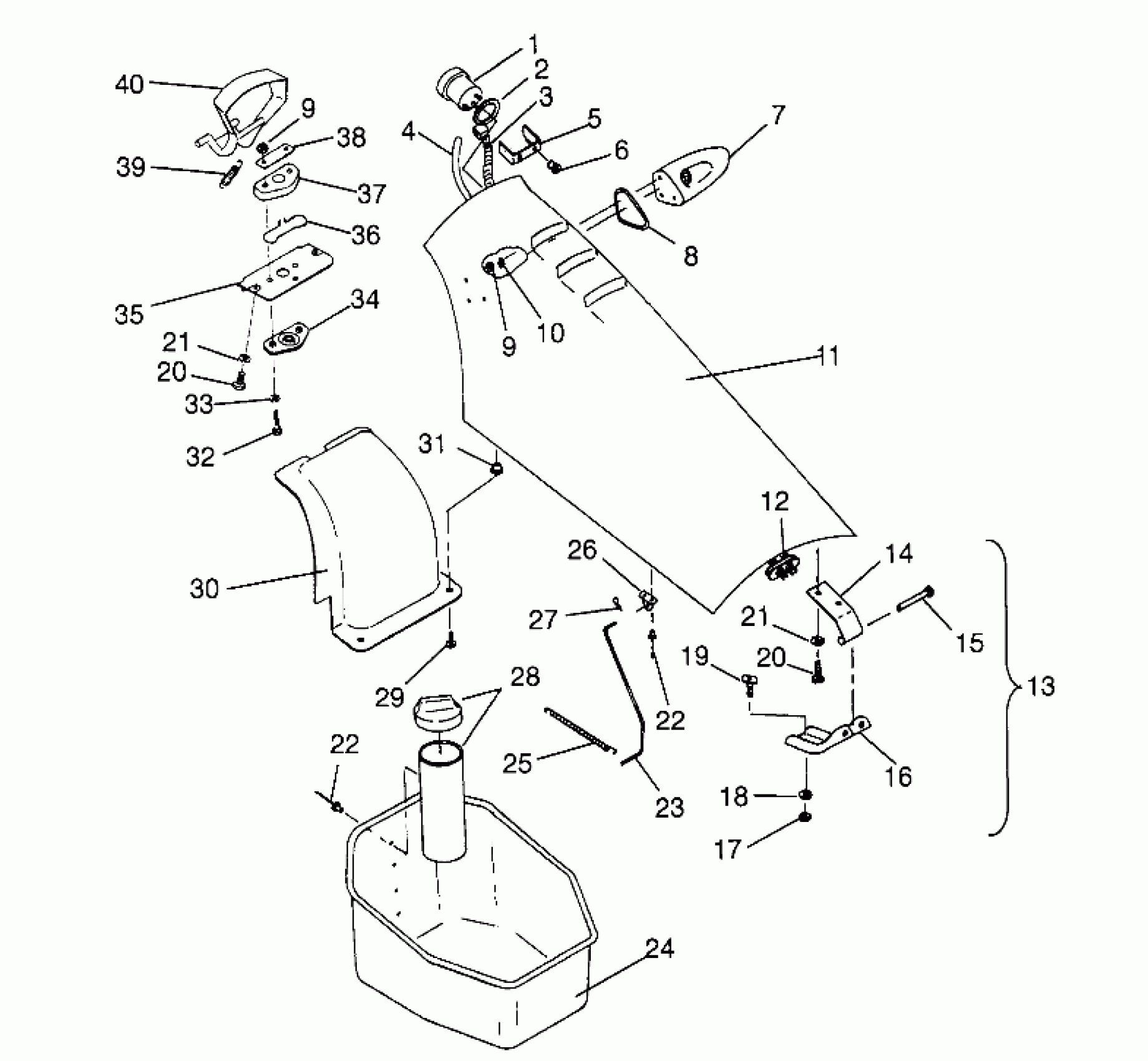

Polaris SLT - B944170 FRONT STORAGE COMPARTMENT SLT 750 B944170 (49259425940004) Diagram

#

Description
Price

1

GAUGE,MULTI-FUNCTION

3280147

Unavailable

2

GASKET,GAUGE

5810989

$0.95

3

HARNESS,WIRE GAUGE

2460469

$98.41

4

FUEL LINE,(427 CM.)

8450058-427

Unavailable

5

BRKT,MOUNTING

5240411

Unavailable

6

NUT,LOCK,NYLON,(10)

7542142

$1.19

7

MIRROR ASM,PORT

2652110-196

Unavailable

7

MIRROR ASM,STARB'D

2652111-196

Unavailable

8

SEAL,MIRROR,PORT

5410898

$3.46

8

SEAL,MIRROR,STARBOARD

5410899

$5.71

9

NUT,NYLOK,S.S.(10)

7542133

Unavailable

9

NUT,NYLOK,S.S.(10)

7542133

Unavailable

10

SPACER,MIRROR

5431823

$3.10

11

DOOR ASM,COMP,CAR.BL.

5431804-196

Unavailable

12

GROMMET,WIRE HARNESS

5410849

$1.35

13

HINGE ASM,LID (Incl. 14, 15, 16)

2635014

$15.56

14

HINGE, UPPER [No Longer Available]

5240278

Unavailable

15

PIN, HINGE Substituted by 2635012

7661629

$14.29

16

HINGE, LOWER [No Longer Available]

5222699

Unavailable

17

NUT, HEX, S.S.(10)

7542335

Unavailable

18

WASHER, FLAT, S.S.(10)

7555831

Unavailable

19

PLATE,SCREW,HINGE

1060111

Unavailable

20

BOLT, S.S.(10)

7515121

$0.59

20

BOLT, S.S.(10)

7515121

$0.59

21

WASHER, LOCK, S.S.(10)

7555838

Unavailable

21

WASHER, LOCK, S.S.(10)

7555838

Unavailable

22

RIVET(50)

7621479

$1.98

22

RIVET(50)

7621479

$1.98

23

SUPPORT,DOOR,SLT

5224524

$38.41

24

BUCKET,FR.STORAGE Substituted by 5432281

5431603

Unavailable

25

SPRING,DOOR SUPPORT

7042038

Unavailable

26

RETAINER,DOOR SUPPORT

5240340

$2.46

27

PIN, COTTER(10)

7661010

$1.19

28

CONTAINER,FIRE EXTINGUISHER

1060114

$32.70

29

BOLT, SS.(10)

7512045

$4.99

30

BAFFLE, AIR INTAKE

5431648

$23.02

31

NUT-WELL(10)

7541918

Unavailable

32

BOLT, SS.(10)

7515123

$2.19

33

WASHER, FLAT, S.S.(10)

7555839

Unavailable

34

Plate, Bottom, Seat Base Latch (See Pg. , Ref. )

----

Unavailable

35

BRKT,LATCH,COMP.DOOR

5240617

Unavailable

36

Spring, Seat Base Latch (See Pg. , Ref.)

----

Unavailable

37

Plate, Top, Seat Base Latch (See Pg. , Ref.)

----

Unavailable

38

PLATE, LATCH STOP Substituted by 1060117

5211492

$7.38

39

SPRING

7041342

$4.13

40

HANDLE,STOR.DOOR,BLK.

5431510

Unavailable
