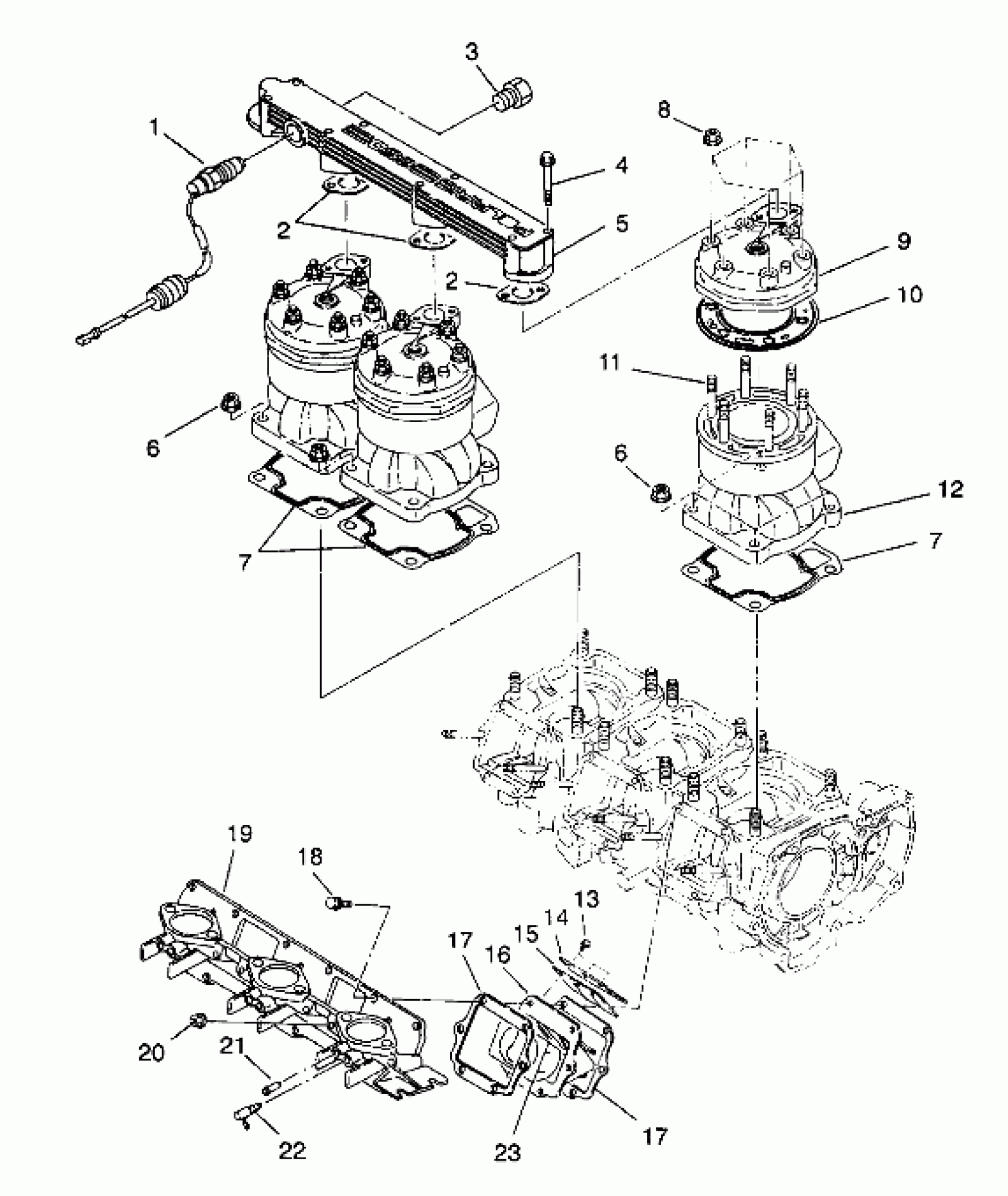

Polaris SLT - B944170 CYLINDER and MANIFOLD SLT 750 B944170 (4925942594024A) Diagram

#

Description
Price

1

SWITCH,THERMO

3240197

$79.99

2

GASKET(10)

3082937

Unavailable

2

GASKET(10)

3082937

Unavailable

3

PLUG

3240219

$12.21

4

BOLT, FLANGE

3240075

Unavailable

5

OUTLET, WATER MANIFOLD

3240218

Unavailable

6

NUT, FLANGE Substituted by 7546906

3240059

$1.99

6

NUT, FLANGE Substituted by 7546906

3240059

$1.99

7

GASKET, CYLINDER

3240055

Unavailable

7

GASKET, CYLINDER

3240055

Unavailable

8

NUT, FLANGE,(10)

3240058

Unavailable

9

HEAD, CYLNDER

3240212

Unavailable

10

GASKET, HEAD

3240213

Unavailable

11

STUD

3240211

Unavailable

12

CYLINDER ASM.

3240210

$549.99

13

SCREW&WASHER Substituted by 3084565

3240066

Unavailable

14

Stopper

3240065

Unavailable

15

VALVE, REED(10)

3240064

Unavailable

16

VALVE ASM., REED (Incl. 13-15)

3084147

Unavailable

17

GASKET, REED VALVE,(10)

3084148

Unavailable

17

GASKET, REED VALVE,(10)

3084148

Unavailable

18

BOLT, FLANGE

3240062

Unavailable

19

PIPE, INTAKE (Incl. 21,22)

3240192

$166.39

20

NUT, FLANGE

3240063

$1.27

21

PIPE

3240061

$3.97

22

VALVE, CHECK Substituted by 3086785

3083337

$56.65

23

STUFFER,(REED VALVE ASM.)

3240164

$12.39
