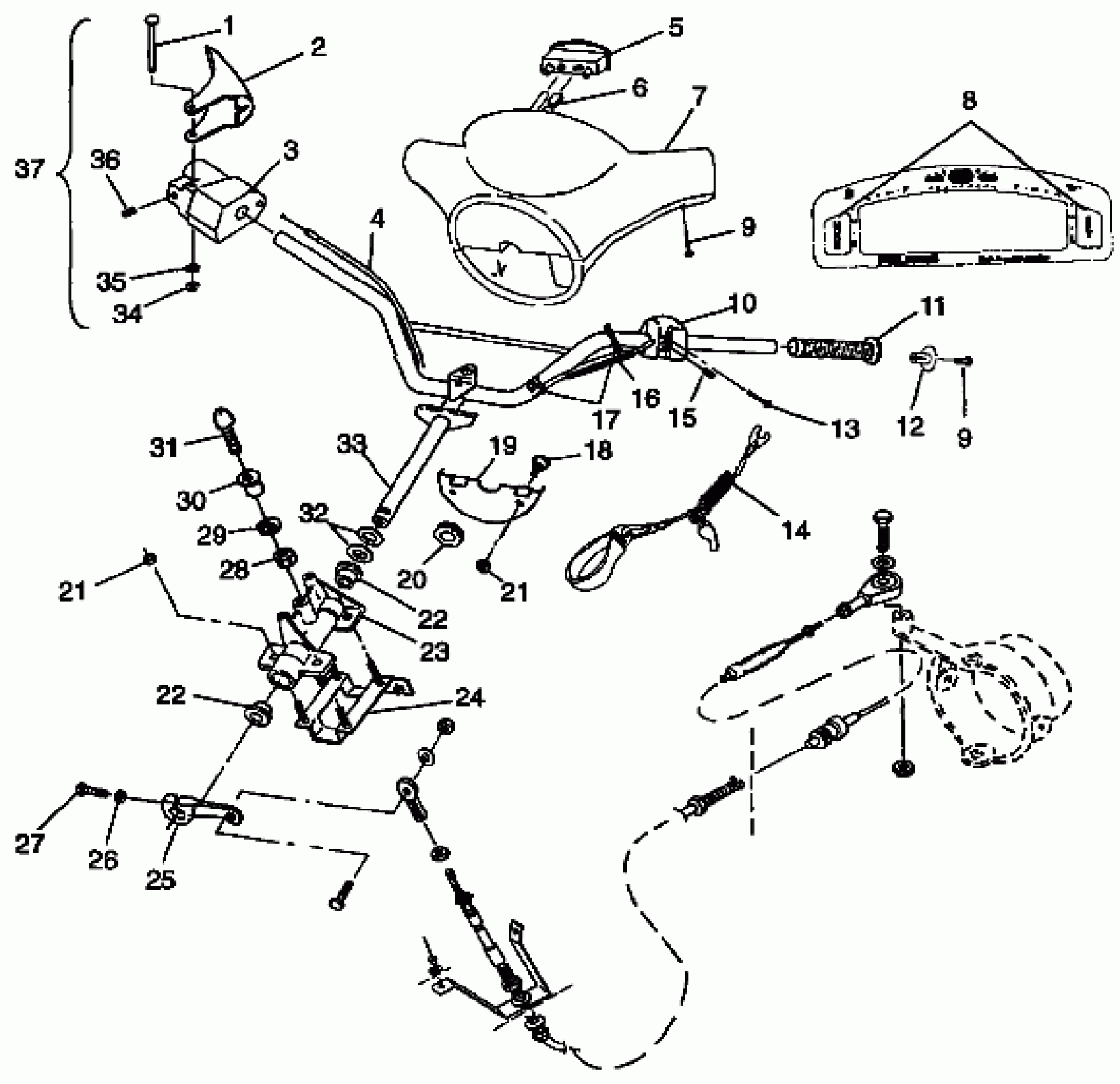

Polaris SLT 780 - B974588 STEERING SLT 780 B974588 (4941174117A013) Diagram

#

Description
Price

1

Pin, Retaining

7661628

Unavailable

2

LEVER,THROTTLE CONTROL

5431397

Unavailable

3

BLOCK,THROTTLE CONTROL

5431396

Unavailable

4

CABLE,THROTTLE

7080504

$102.99

5

GAUGE,MULTI-FUNCTION

3280252

Unavailable

6

HARNESS,WIRE,MFD,(SLT )

2460582

$58.24

7

PAD,H'BAR,MFD,WLD.GRP.

5432511-237

Unavailable

8

KIT,MFD.BUTTON Substituted by 2201263

2200826

Unavailable

9

SCREW, SS.(10)

7512047

$1.99

9

SCREW, SS.(10)

7512047

$1.99

10

SWITCH,ST/SP/BG/CK

4110216

Unavailable

11

GRIP,H'BAR,LBLUE Substituted by 5411221-070

5411221-217

Unavailable

12

PLUG,HANDGRIP,BLK.

7010082-070

$2.94

13

SCREW(10)

7516602

$3.33

14

LANYARD,W/WHISTLE

7080675

Unavailable

15

SCREW, S.S.(10)

7516601

$3.17

16

CABLE,CHOKE,85.07

7080669

$29.11

17

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

18

BOLT,SHOULDER(10)

7515387

Unavailable

19

PLATE,GROMMET

5240334

$9.08

20

GROMMET,CABLE,MFD(SLT)

5411111

Unavailable

21

NUT, HEX, S.S.(10)

7542335

Unavailable

21

NUT, HEX, S.S.(10)

7542335

Unavailable

22

BUSHING,STRG.SUPPORT

5431382

Unavailable

22

BUSHING,STRG.SUPPORT

5431382

Unavailable

23

HUB,SPRT.STRG/ANODE.

5131509

Unavailable

24

PLATE, BOLT

1060101

Unavailable

25

ARM,STRNG.,ANODIZED

5131441

$113.99

26

WASHER, LOCK, S.S.(10)

7552610

Unavailable

27

BOLT, S.S.(10)

7515375

$3.81

28

NUT, HEX, S.S.,(10)

7542454

Unavailable

29

WASHER, FLAT(10)

7555841

Unavailable

30

CUSHION,PLUNGER

5521341

Unavailable

31

PLUNGER,LATCH

5020753

Unavailable

32

BUSH.(10)

7555875

$7.94

33

POST,STEERING,W/H'BAR

1823175

Unavailable

34

RING,RETAIN.EXT.,S.S.(10)

7710426

Unavailable

35

WASHER, FLAT, S.S.(10)

7555840

$3.33

36

SCREW, SET, S.S.(10)

7515115

Unavailable

37

THROTTLE CONTROL ASM. (Incl. 1, 2, 34-36)

2010122

Unavailable
