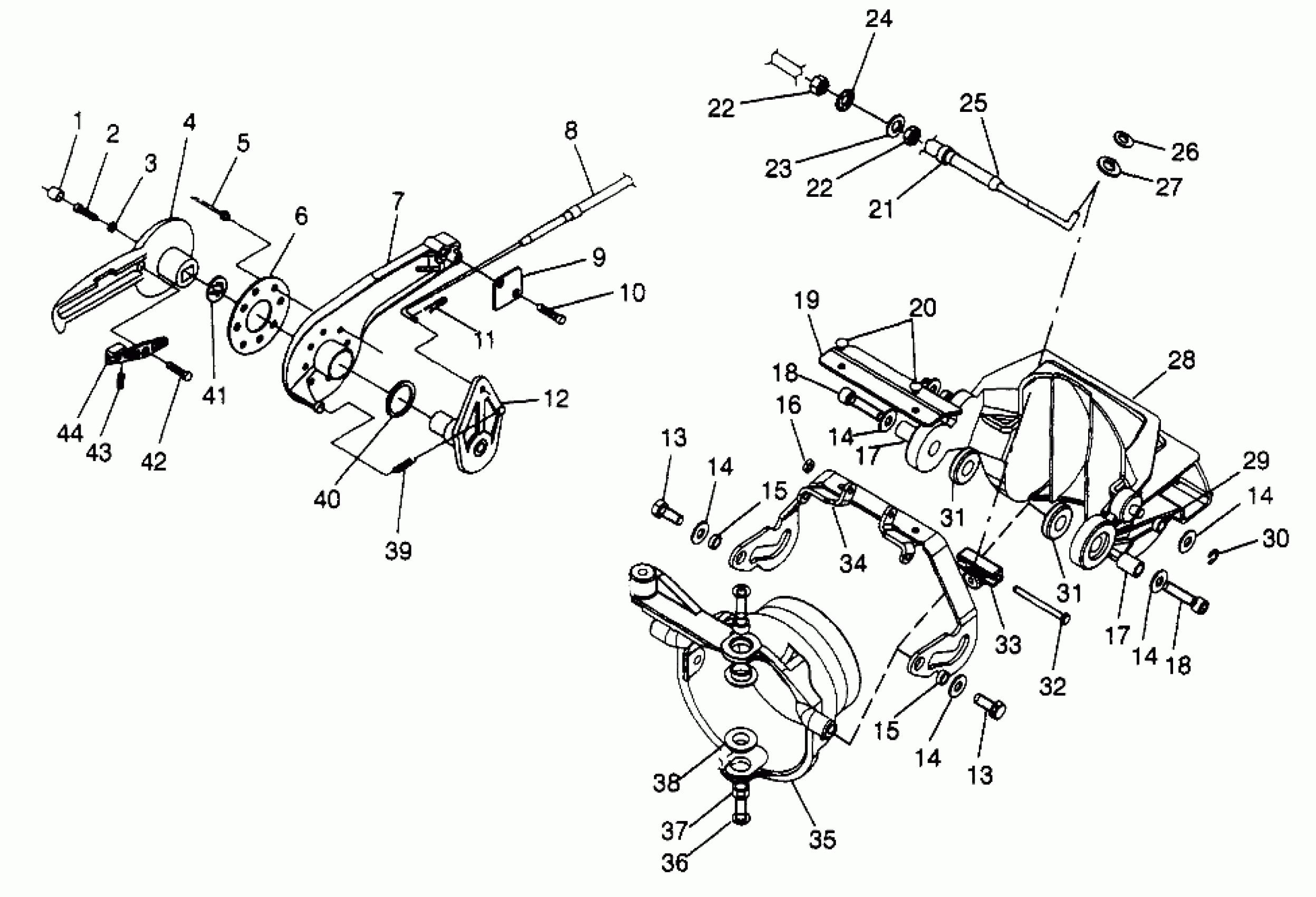

Polaris SLT 780 - B974588 REVERSE SLT 780 B974588 (4941174117B010) Diagram

#

Description
Price

1

CAP,REV.LEVER,BLK. Substituted by 5431696-196

5431696-070

$9.29

2

SCREW, S.S.(10)

7515141

$1.37

3

WASHER, FLAT, S.S.(10)

7555839

Unavailable

4

LEVER,REV,BLK

5431979-070

Unavailable

5

RIVET(50)

7621480

Unavailable

6

GASKET, REV.BRKT.

5810998

$2.46

7

BRKT,REV.LEVER

5431615

$11.51

8

CABLE,REVERSE

7080622

Unavailable

9

PLATE,CABLE

5240257

Unavailable

10

SCREW(10)

7512049

Unavailable

11

PIN, COTTER(10)

7661010

$1.19

12

ARM,REVERSE

5431980

$92.99

13

BOLT, S.S.(10)

7515361

$2.19

13

BOLT, S.S.(10)

7515361

$2.19

14

WASHER,FLAT,S.S.(10)

7555874

$2.38

14

WASHER,FLAT,S.S.(10)

7555874

$2.38

14

WASHER,FLAT,S.S.(10)

7555874

$2.38

14

WASHER,FLAT,S.S.(10)

7555874

$2.38

14

WASHER,FLAT,S.S.(10)

7555874

$2.38

15

BUSHING,ACTUATOR,SHORT

5020740

Unavailable

15

BUSHING,ACTUATOR,SHORT

5020740

Unavailable

16

NUT, HEX, S.S.(10)

7541931

$5.99

17

Collar

5020683

$6.59

17

Collar

5020683

$6.59

18

BOLT, S.S.(10)

7515368

Unavailable

18

BOLT, S.S.(10)

7515368

Unavailable

19

SHIELD,REV.ACTUATOR

5431517

Unavailable

20

RIVET

7621478

Unavailable

21

COVER, STEERING

1860109

$2.14

22

NUT (10)

7542528

$2.19

22

NUT (10)

7542528

$2.19

23

Washer

1860103

$3.33

24

WASHER, LOCK,S.S.(10)

7571625

$2.38

25

SEAL,ROD,STRG.

1860108

Unavailable

26

RING,RETAINING Substituted by 7080618

7710431

$1.75

27

WASHER, FLAT, S.S.(10)

7555837

$1.59

28

GATE,REVERSE,BLK.

5431614

Unavailable

29

BUSHING,ACTUATOR,(10)

5020686

Unavailable

30

RING-E,RET.(10)

7710427

Unavailable

31

SPACER,REVERSE GATE

5431506

Unavailable

31

SPACER,REVERSE GATE

5431506

Unavailable

32

SCREW, S.S.(10)

7512063

Unavailable

33

JOINT, ACTUATOR

5431632

$10.29

34

ACTUATOR,REV.GATE

5240139

Unavailable

35

Nozzle, Steering, Reverse (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

36

BOLT, S.S.(10)

7515366

Unavailable

37

Collar (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

38

Bearing, Steering Nozzle (See Pg. NO TAG, Ref. NO TAG)

----

Unavailable

39

SPRING,DETENT,REV.

7041313

$2.62

40

O-RING

5410814

Unavailable

41

RING,RETAINING(10)

7710430

$7.94

42

SCREW(10)

7517331

$2.06

43

SPRING,REVERSE LOCK

7041341

$3.81

44

LOCK,REV.LEVER

5431525

Unavailable
