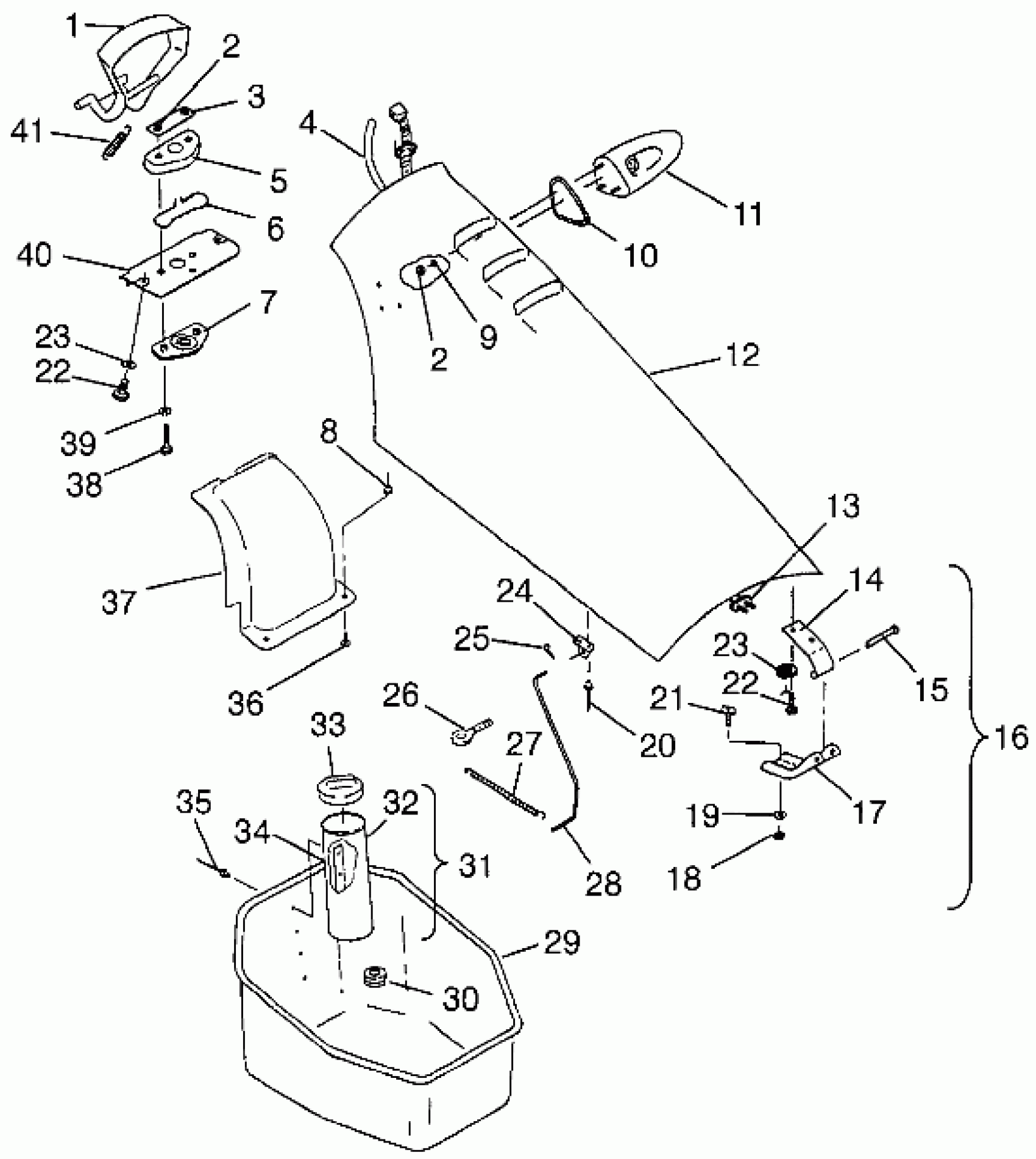

Polaris SLT 780 - B974588 FRONT STORAGE COMPARTMENT SLT 780 B974588 (4941174117A008) Diagram

#

Description
Price

1

HANDLE,STOR.DOOR,BLK.

5431510

Unavailable

2

NUT,NYLOK,S.S.(10)

7542133

Unavailable

2

NUT,NYLOK,S.S.(10)

7542133

Unavailable

3

PLATE,LATCH STOP

1060117

$7.38

4

PITOT LINE,90DEG FORMED,190CM Substituted by 8450070-235

8450070-190

$24.25

5

Plate, Top, Seat Base Latch (See Pg., Ref.)

----

Unavailable

6

Spring, Seat Base Latch (See Pg., Ref.)

----

Unavailable

7

Plate, Bottom, Seat Base Latch (See Pg., Ref.)

----

Unavailable

8

NUT-WELL(10)

7541918

Unavailable

9

SPACER,MIRROR

5431823

$3.10

10

SEAL,MIRROR,PORT

5410898

$3.46

10

SEAL,MIRROR,STARBOARD

5410899

$5.71

11

MIRROR ASM,PORT,WLD.GRP.

2652110-237

Unavailable

11

MIRROR ASM,STBD,WLD.GRP.

2652111-237

Unavailable

12

COMP.DOOR ASM,WLD.GRP. (Wild Grape)

2631781-237

$622.43

13

GROMMET,WIRE HARNESS

5410849

$1.35

14

HINGE, UPPER [No Longer Available]

5240278

Unavailable

15

PIN, HINGE Substituted by 2635012

7661629

$14.29

16

HINGE ASM,LID (Incl. 14, 15, 17)

2635014

$15.56

17

HINGE, LOWER [No Longer Available]

5222699

Unavailable

18

NUT, HEX, S.S.(10)

7542335

Unavailable

19

WASHER, FLAT, S.S.(10)

7555831

Unavailable

20

RIVET(50)

7621479

$1.98

21

PLATE,SCREW,HINGE

1060111

Unavailable

22

BOLT, S.S.(10)

7515121

$0.59

22

BOLT, S.S.(10)

7515121

$0.59

23

WASHER, LOCK, S.S.(10)

7555838

Unavailable

23

WASHER, LOCK, S.S.(10)

7555838

Unavailable

24

RETAINER,DOOR SUPPORT

5240340

$2.46

25

PIN, COTTER(10)

7661010

$1.19

26

EYEBOLT, SS

7080651

Unavailable

27

SPRING,DOOR SUPPORT

7042038

Unavailable

28

SUPPORT,DOOR,SLT

5224524

$38.41

29

BUCKET,FR.STORAGE

5432281

Unavailable

30

GROMMET,DRAIN

5411145

$1.19

31

CONTAINER,FIRE EXTINGUISHER (Incl. 32, 33)

1060114

$32.70

32

CONTAINER,FIRE EXT. Substituted by 1060114

5431841

$32.70

33

COVER,FIRE EXT. Substituted by 1060114

5431842

$32.70

34

PLATE,FIRE EXT.SS Substituted by 5244773

5211740

Unavailable

35

RIVET,(50)

7621491

$0.69

36

BOLT, SS.(10)

7512045

$4.99

37

BAFFLE, AIR INTAKE

5431648

$23.02

38

BOLT, SS.(10)

7515123

$2.19

39

WASHER, FLAT, S.S.(10)

7555839

Unavailable

40

BRKT,LATCH,COMP.DOOR

5240617

Unavailable

41

SPRING

7041342

$4.13
