Description

Price

1

CAP,REV.LEVER,PUR.WAVE

5431696-214

Unavailable

2

SCREW, S.S.(10)

7515141

$1.37

3

WASHER, FLAT, S.S.(10)

7555839

Unavailable

4

LEVER,REV.PUR.WAVE

5431979-214

Unavailable

5

LOCK,REV.LEVER

5431525

Unavailable

6

SPRING,REVERSE LOCK

7041341

$3.81

7

SCREW(10)

7512065

Unavailable

8

RIVET(50)

7621480

Unavailable

9

RING,RETAINING(10)

7710430

$7.94

10

GASKET, REV.BRKT.

5810998

$2.46

11

BRKT,REV.LEVER

5431615

$11.51

12

O-RING

5410814

Unavailable

13

SPRING,DETENT,REV.

7041313

$2.62

14

ARM,REVERSE

5431980

$92.99

15

PIN, COTTER(10)

7661010

$1.19

16

SCREW(10)

7512049

Unavailable

17

PLATE,CABLE

5240257

Unavailable

18

CABLE,REVERSE

7080622

Unavailable

19

NUT (10)

7542528

$2.19

19

NUT (10)

7542528

$2.19

20

Washer

1860103

$3.33

21

COVER, STEERING

1860109

$2.14

22

NUT, HEX, S.S.(10)

7541931

$5.99

23

ACTUATOR,REV.GATE

5240139

Unavailable

24

WASHER, LOCK,S.S.(10)

7571625

$2.38

25

SEAL,ROD,STRG.

1860108

Unavailable

26

RIVET

7621478

Unavailable

27

SHIELD,REV.ACTUATOR

5431517

Unavailable

28

RING,RETAINING Substituted by 7080618

7710431

$1.75

29

WASHER, FLAT, S.S.(10)

7555837

$1.59

30

JOINT, ACTUATOR

5431632

$10.29

31

SCREW, S.S.(10)

7512063

Unavailable

32

BUSHING,ACTUATOR,(10)

5020686

Unavailable

33

RING-E,RET.(10)

7710427

Unavailable

34

WASHER,FLAT,S.S.(10)

7555874

$2.38

34

WASHER,FLAT,S.S.(10)

7555874

$2.38

35

BOLT, S.S.(10)

7515361

$2.19

36

BUSHING,ACTUATOR,SHORT

5020740

Unavailable

37

GATE,REVERSE,BLK.

5431614

Unavailable

38

BOLT, S.S.(10)

7515368

Unavailable

39

Collar

5020683

$6.59

40

SPACER,REVERSE GATE

5431506

Unavailable

41

NOZZLE,STRG,SLT (See Pg. A19, Ref.4)

5130999

Unavailable

42

BOLT, S.S.(10)

7515366

Unavailable

43

COLLAR (See Pg. A19, Ref. 2)

5130938

Unavailable

44

BRG,STRG.NOZZLE,(10) (See pg. A19, Ref. 3)

5431518

Unavailable

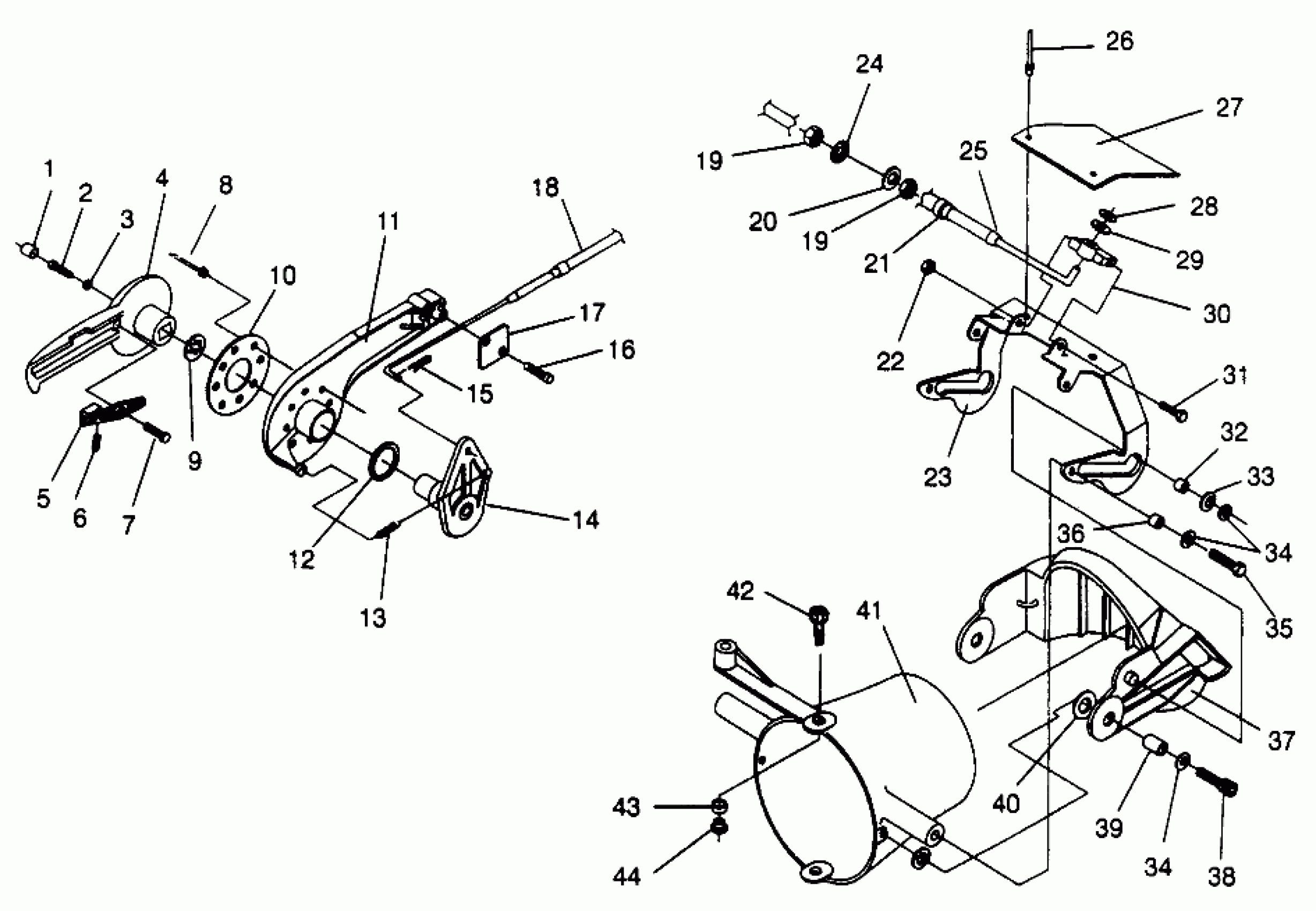

Polaris SLT 780 - B964588 REVERSE SLT 780 B964588 and Intl. SLT 780 I964588 (4935683568B011) Diagram

CAP,REV.LEVER,PUR.WAVE

SCREW, S.S.(10)

WASHER, FLAT, S.S.(10)

LEVER,REV.PUR.WAVE

LOCK,REV.LEVER

SPRING,REVERSE LOCK

SCREW(10)

RIVET(50)

RING,RETAINING(10)

GASKET, REV.BRKT.

BRKT,REV.LEVER

O-RING

SPRING,DETENT,REV.

ARM,REVERSE

PIN, COTTER(10)

SCREW(10)

PLATE,CABLE

CABLE,REVERSE

NUT (10)

NUT (10)

Washer

COVER, STEERING

NUT, HEX, S.S.(10)

ACTUATOR,REV.GATE

WASHER, LOCK,S.S.(10)

SEAL,ROD,STRG.

RIVET

SHIELD,REV.ACTUATOR

RING,RETAINING Substituted by 7080618

WASHER, FLAT, S.S.(10)

JOINT, ACTUATOR

SCREW, S.S.(10)

BUSHING,ACTUATOR,(10)

RING-E,RET.(10)

WASHER,FLAT,S.S.(10)

WASHER,FLAT,S.S.(10)

BOLT, S.S.(10)

BUSHING,ACTUATOR,SHORT

GATE,REVERSE,BLK.

BOLT, S.S.(10)

Collar

SPACER,REVERSE GATE

NOZZLE,STRG,SLT (See Pg. A19, Ref.4)

BOLT, S.S.(10)

COLLAR (See Pg. A19, Ref. 2)

BRG,STRG.NOZZLE,(10) (See pg. A19, Ref. 3)
