PROPULSION SLT 780 B964588 and Intl. SLT 780 I964588 (4935683568B003)

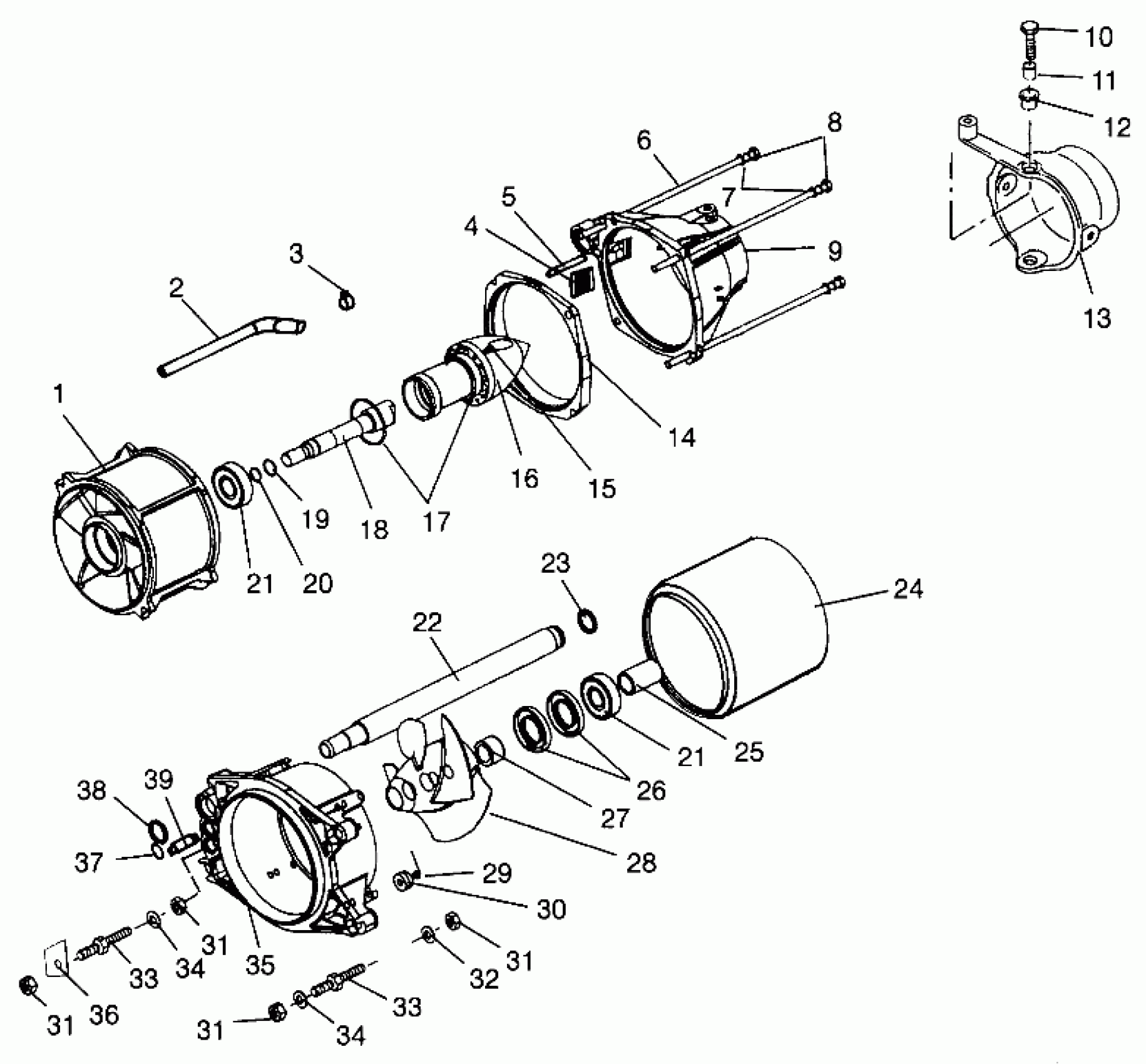

Polaris SLT 780 - B964588 PROPULSION SLT 780 B964588 and Intl. SLT 780 I964588 (4935683568B003) Diagram
#
1
STATOR,PUMP (Mach)
5130983
Unavailable
2
HOSE,WATER
8450054-100
Unavailable
3
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
4
SCREEN,ENG.INLET
5431523
Unavailable
5
TUBE,SIPHON,BILGE
5010293
Unavailable
6
Bolt
7515389
Unavailable
7
WASHER, FLAT, S.S.,(10)
7555835
Unavailable
8
WASHER, LOCK, S.S.(10)
7552610
Unavailable
9
NOZZLE ASM,1 TUBE
1350021
Unavailable
10
BOLT, S.S.(10)
7515366
Unavailable
11
Collar
5130938
Unavailable
12
BRG,STRG.NOZZLE,(10)
5431518
Unavailable
13
NOZZLE,STRG,SLT
5130999
Unavailable
14
WEDGE,PUMP,(SLX)
5630564
Unavailable
15
SCREW(10)
7512064
Unavailable
16
Cone, Pump
5431519
Unavailable
17
O-RING(10)
5410819
Unavailable
18
SHAFT, STUB Substituted by 5132674
5020697
Unavailable
19
O-RING(10)
5410818
Unavailable
20
O-RING,(10)
5410817
Unavailable
21
Bearing
3514008
Unavailable
21
Bearing
3514008
Unavailable
22
PIPE,WATER,ENG.(MACH)
5131166
Unavailable
23
O RING,(10)
5410735
Unavailable
24
EXTENSION,PUMP
5131196
Unavailable
25
Spacer
5010294
Unavailable
26
SEAL,BRG,STATOR
3610043
Unavailable
27
Spacer, Impeller
5010295
Unavailable
28
IMPELLER,(15-20CUT,)3BLADE
5131371
Unavailable
29
SCREW(10)
7522019
Unavailable
30
ANODE-ZINC Substituted by 2200745
5630598
Unavailable
31
NUT,HEX,S.S.(10)
7542455
Unavailable
31
NUT,HEX,S.S.(10)
7542455
Unavailable
31
NUT,HEX,S.S.(10)
7542455
Unavailable
31
NUT,HEX,S.S.(10)
7542455
Unavailable
32
Washer
7555966
$2.63
33
STUD,MTG,PUMP
5020877
Unavailable
33
STUD,MTG,PUMP
5020877
Unavailable
34
WASHER, FLAT(10)
7555841
Unavailable
34
WASHER, FLAT(10)
7555841
Unavailable
35
HSG,PUMP,(148MM) Substituted by 5131815
5131311
Unavailable
36
BRKT,STRG.CABLE
5241741
Unavailable
37
SEAL,SIPHON TUBE
5411016
Unavailable
38
SEAL,WATER PIPE
5411107
Unavailable
39
PIPE,WATER BILGE
5020835
Unavailable
