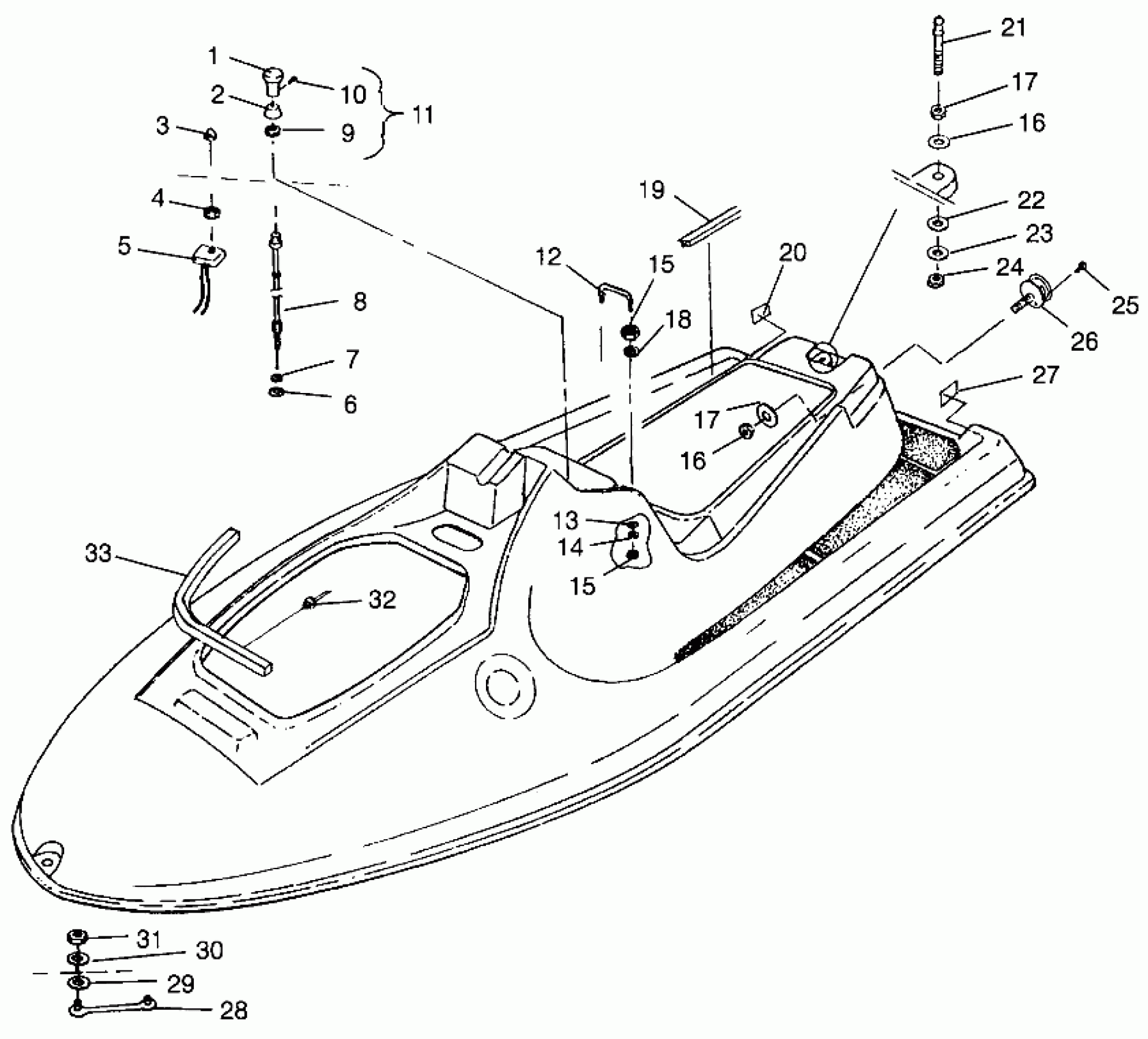

Polaris SLT 780 - B964588 HULL and BODY SLT 780 B964588 and Intl. SLT 780 I964588 (4935683568A006) Diagram

#

Description
Price

1

KNOB,CHOKE

2080004

$9.05

2

COVER

2080003

Unavailable

3

NUT,WATERPROOF,STARTER SWITCH

7080513

Unavailable

4

NUT,BRASS,(10)

7544501

$1.90

5

SWITCH,START.

4110155

$54.99

6

WASHER

2010126

Unavailable

7

NUT

2010125

$0.71

8

CABLE,CHOKE,PWC

7080648

$61.90

9

NUT

2080002

$2.06

10

Screw

2080005

$0.69

11

KIT, CHOKE, (PWC) (Incl. 1, 2, 9, 10)

2200428

Unavailable

12

U-BOLT,SEAT RETAINER

5224750

$10.32

13

WASHER, FLAT, S.S.,(10)

7555835

$0.69

14

WASHER, LOCK, S.S.(10)

7552610

Unavailable

15

NUT

7542334

$1.19

15

NUT

7542334

$1.19

16

WASHER, FLAT(10)

7555845

Unavailable

16

WASHER, FLAT(10)

7555845

Unavailable

17

NUT, HEX, S.S.,(10)

7542454

Unavailable

17

NUT, HEX, S.S.,(10)

7542454

Unavailable

18

WASHER,RUBBER

7555950

Unavailable

19

SEAL, SEAT

5521382

Unavailable

20

PAD,RH,HEEL

5830034

Unavailable

21

PLUNGER,LATCH

5020753

Unavailable

22

WASHER, FLAT(10)

7555841

Unavailable

23

WASHER, LOCK, S.S.(10)

7552607

$1.39

24

NUT,HEX,S.S.(10)

7542455

Unavailable

25

SCREW(10)

7515388

$0.39

26

HOOK,SKI-TOW

7061002

$61.90

27

PAD,LH,HEEL

5830033

$5.19

28

STRAP, BOW

2670150

$49.21

29

WASHER,RUBBER(10)

7555870

$0.40

30

WASHER, FLAT, S.S.(10)

7555839

Unavailable

31

NUT,NYLOK,S.S.(10)

7542133

Unavailable

32

RIVET,(10)SS

7621235

$1.19

33

SEAL,STOR.COMPART.

5521383

$49.21
