FRONT STORAGE COMPARTMENT SLT 780 B964588 and Intl. SLT 780 I964588 (4935683568A008)

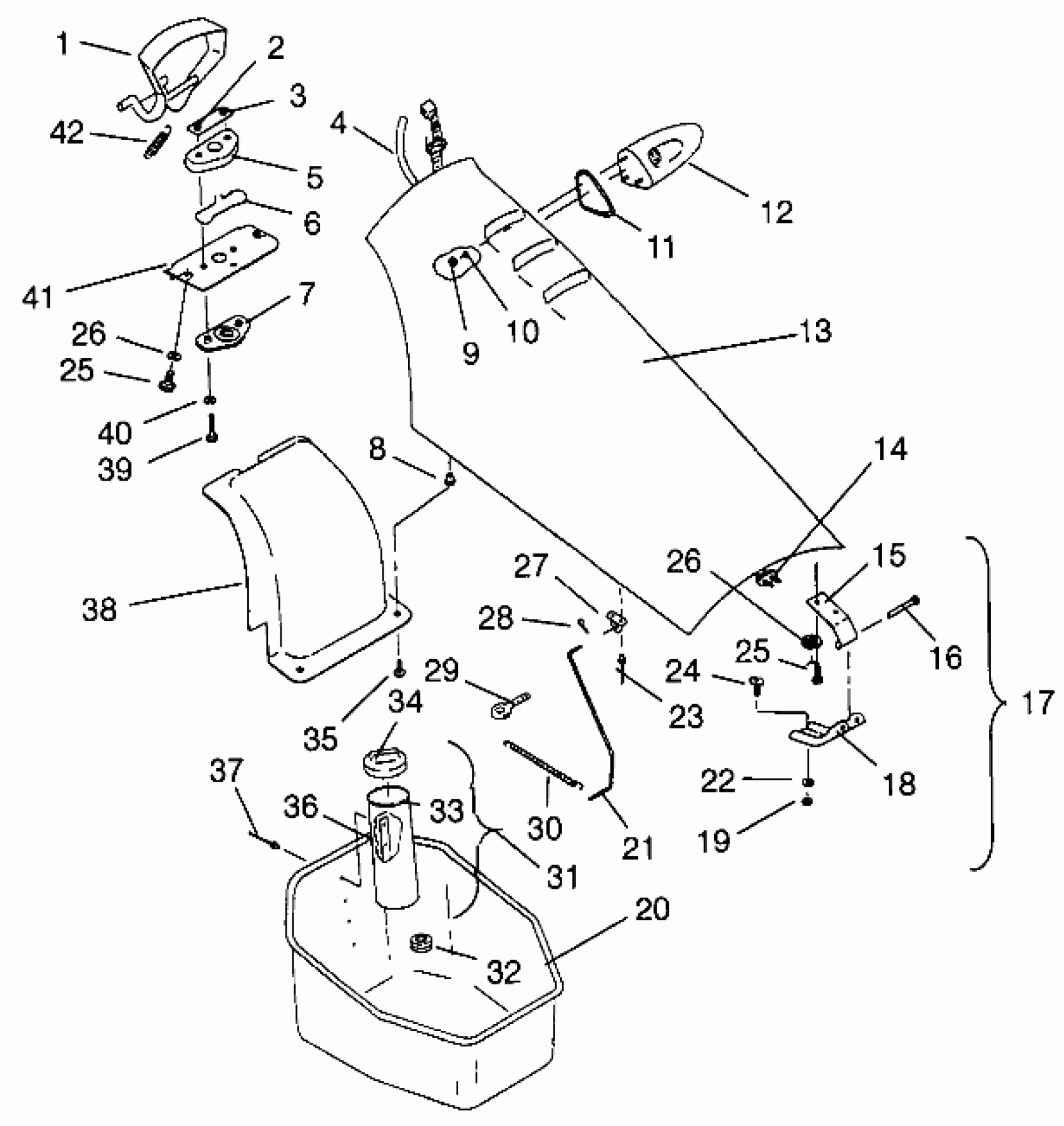

Polaris SLT 780 - B964588 FRONT STORAGE COMPARTMENT SLT 780 B964588 and Intl. SLT 780 I964588 (4935683568A008) Diagram
#
1
HANDLE,STOR.DOOR,BLK.
5431510
Unavailable
2
NUT,NYLOK,S.S.(10)
7542133
Unavailable
3
PLATE,LATCH STOP
1060117
Unavailable
4
FUEL LINE,(427 CM.)
8450058-427
Unavailable
5
Plate, Top, Seat Base Latch (See Pg., Ref.)
-------
Unavailable
6
Spring, Seat Base Latch (See Pg., Ref.)
-------
Unavailable
7
Plate, Bottom, Seat Base Latch (See Pg., Ref.)
-------
Unavailable
8
NUT-WELL(10)
7541918
Unavailable
10
SPACER,MIRROR
5431823
Unavailable
11
SEAL,MIRROR,PORT
5410898
Unavailable
11
SEAL,MIRROR,STARBOARD
5410899
Unavailable
12
MIRROR ASM,PORT
2652110-196
Unavailable
12
MIRROR ASM,STARB'D
2652111-196
Unavailable
13
COMP.DOOR ASM,PUR.WAVE (Purple Wave)
2631781-214
Unavailable
14
GROMMET,WIRE HARNESS
5410849
Unavailable
15
HINGE, UPPER [No Longer Available]
5240278
Unavailable
16
PIN, HINGE Substituted by 2635012
7661629
Unavailable
17
HINGE ASM,LID (Incl. 15, 16, 18)
2635014
Unavailable
18
HINGE, LOWER [No Longer Available]
5222699
Unavailable
19
NUT, HEX, S.S.(10)
7542335
Unavailable
20
BUCKET,FR.STORAGE
5432281
Unavailable
21
SUPPORT,DOOR,SLT
5224524
Unavailable
22
WASHER, FLAT, S.S.(10)
7555831
Unavailable
23
RIVET(50)
7621479
$1.99
24
PLATE,SCREW,HINGE
1060111
Unavailable
25
BOLT, S.S.(10)
7515121
Unavailable
25
BOLT, S.S.(10)
7515121
Unavailable
26
WASHER, LOCK, S.S.(10)
7555838
Unavailable
26
WASHER, LOCK, S.S.(10)
7555838
Unavailable
27
RETAINER,DOOR SUPPORT
5240340
Unavailable
28
PIN, COTTER(10)
7661010
$1.49
29
EYEBOLT, SS
7080651
Unavailable
30
SPRING,DOOR SUPPORT
7042038
Unavailable
31
CONTAINER,FIRE EXTINGUISHER (Incl. 33, 34)
1060114
Unavailable
32
GROMMET,DRAIN
5411145
Unavailable
33
CONTAINER,FIRE EXT. Substituted by 1060114
5431841
Unavailable
34
COVER,FIRE EXT. Substituted by 1060114
5431842
Unavailable
35
BOLT, SS.(10)
7512045
$4.99
36
PLATE,FIRE EXT.SS Substituted by 5244773
5211740
Unavailable
37
RIVET,(50)
7621491
Unavailable
38
BAFFLE, AIR INTAKE
5431648
Unavailable
39
BOLT, SS.(10)
7515123
Unavailable
40
WASHER, FLAT, S.S.(10)
7555839
Unavailable
41
BRKT,LATCH,COMP.DOOR
5240617
Unavailable
42
SPRING
7041342
Unavailable
