ELECTRICAL BOX SLT 780 B964588 and Intl. SLT 780 I964588 (4935683568B010)

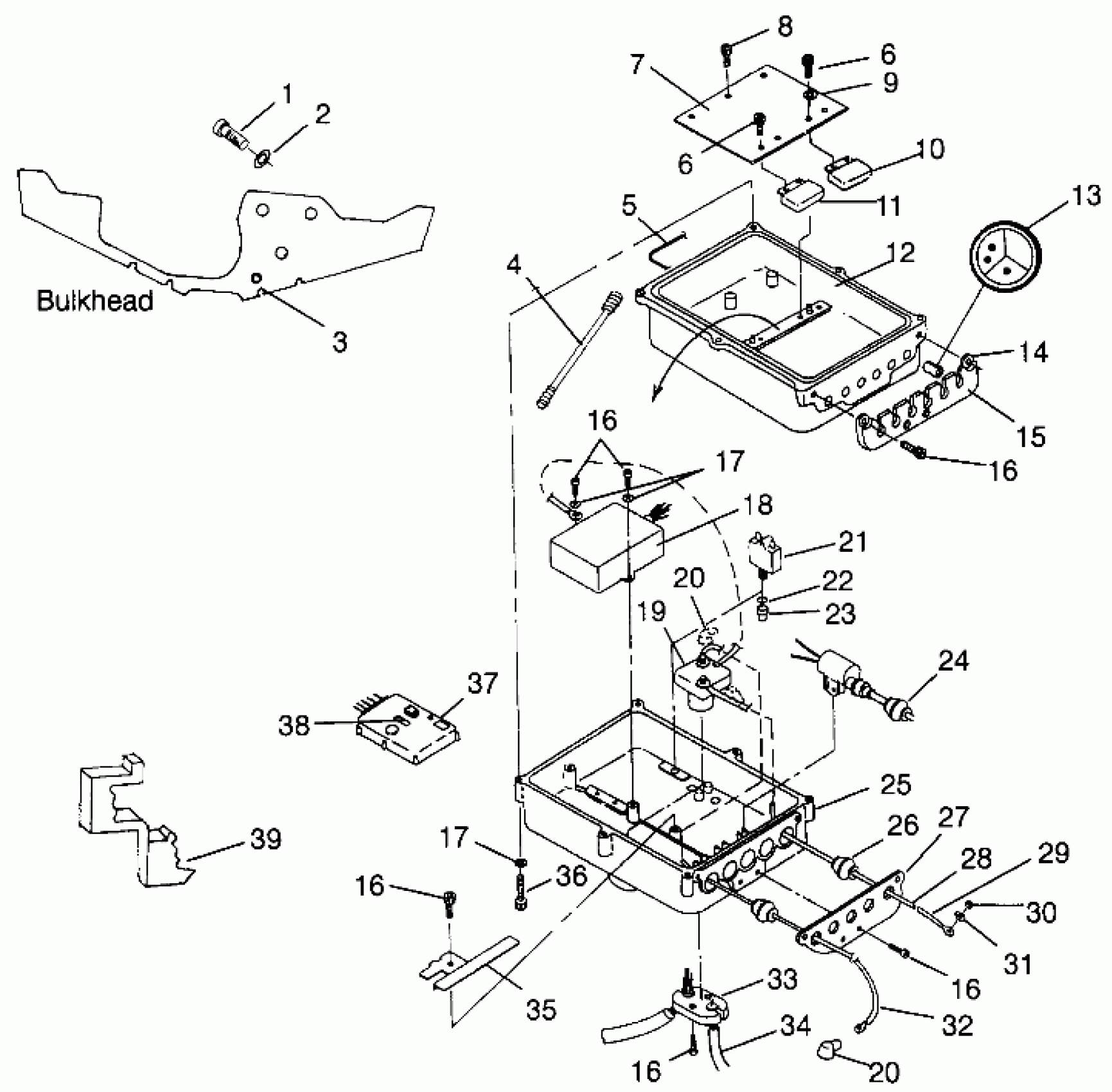

Polaris SLT 780 - B964588 ELECTRICAL BOX SLT 780 B964588 and Intl. SLT 780 I964588 (4935683568B010) Diagram
#
1
BOLT(10)
7515127
Unavailable
2
WASHER,S.S.(10)
7555891
Unavailable
3
Grommet
5411158
Unavailable
4
WIRE,JUMPER
4010117
Unavailable
5
O-RING,(ELEC.BOX)
5410912
Unavailable
6
SCREW,S.S.(10)
7512072
Unavailable
6
SCREW,S.S.(10)
7512072
Unavailable
7
BOARD,TERMINAL
4040068
Unavailable
8
BOLT, S.S.(10)
7512042
$2.62
9
WASHER, LOCK(10)
7552615
$4.99
10
SWITCH,LOWFUEL&O'HEAT
4060145
Unavailable
11
REGULATOR/RECT/CUT-OFF Substituted by 4060171
4060115
Unavailable
12
BOX,BOTTOM,ELEC.
5131256
Unavailable
13
O-RING,(10)
5410817
Unavailable
13
GROMMET,SECTION,2-HOLE
5410852
Unavailable
13
GROMMET,SECTION,NO HOLE
5410850
Unavailable
14
GROMMET, WIRE
5410775
Unavailable
15
PLATE,6-HOLE,CAST
5630497
Unavailable
16
BOLT, S.S.(10)
7515118
Unavailable
16
BOLT, S.S.(10)
7515118
Unavailable
16
BOLT, S.S.(10)
7515118
Unavailable
16
BOLT, S.S.(10)
7515118
Unavailable
16
BOLT, S.S.(10)
7515118
Unavailable
17
WASHER(10)
7555836
$3.99
17
WASHER(10)
7555836
$3.99
18
C.D.I. System Complete (See Pg., Ref.)
-------
Unavailable
19
Switch, Magnetic (See Pg., Ref.)
-------
Unavailable
20
INSULATOR-CABLE
5410346
$6.39
20
INSULATOR-CABLE
5410346
$6.39
21
CKT.BREAKER,15A.(WATER.)
2434011
Unavailable
22
O-RING
5410725
Unavailable
23
BOOT,THREADED,RED
7080461
Unavailable
24
GROMMET, COIL
5410677
Unavailable
25
TOP,ELECT.BOX
5131018
Unavailable
26
GROMMET, 16 GA.(10)
5410678
Unavailable
27
PLATE, 5-HOLE
5630416
Unavailable
28
CABLE,RED,SOL./START.
4010081
Unavailable
29
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
29
CONDUIT,CONVOL(30 CM)
4010051-30
Unavailable
30
NUT, 6 MM.,S.S.(10)
7546705
$4.79
31
WASHER, LOCK(10)
7552613
Unavailable
32
CABLE,RED,BATT/SOL.
4010082
Unavailable
33
PLATE, 2-HOLE
5630415
Unavailable
34
Harness, Wire, MFD (See Pg., Ref.)
-------
Unavailable
35
BRKT,RETAINER,COIL
5240414
Unavailable
36
BOLT(10)
7515119
Unavailable
37
DECAL,ELECT.BOX RESET
7073734
Unavailable
38
DECAL,WARN,HI.VOLT.
7073713
Unavailable
39
T-CLIP(10)
7080471
$3.59
