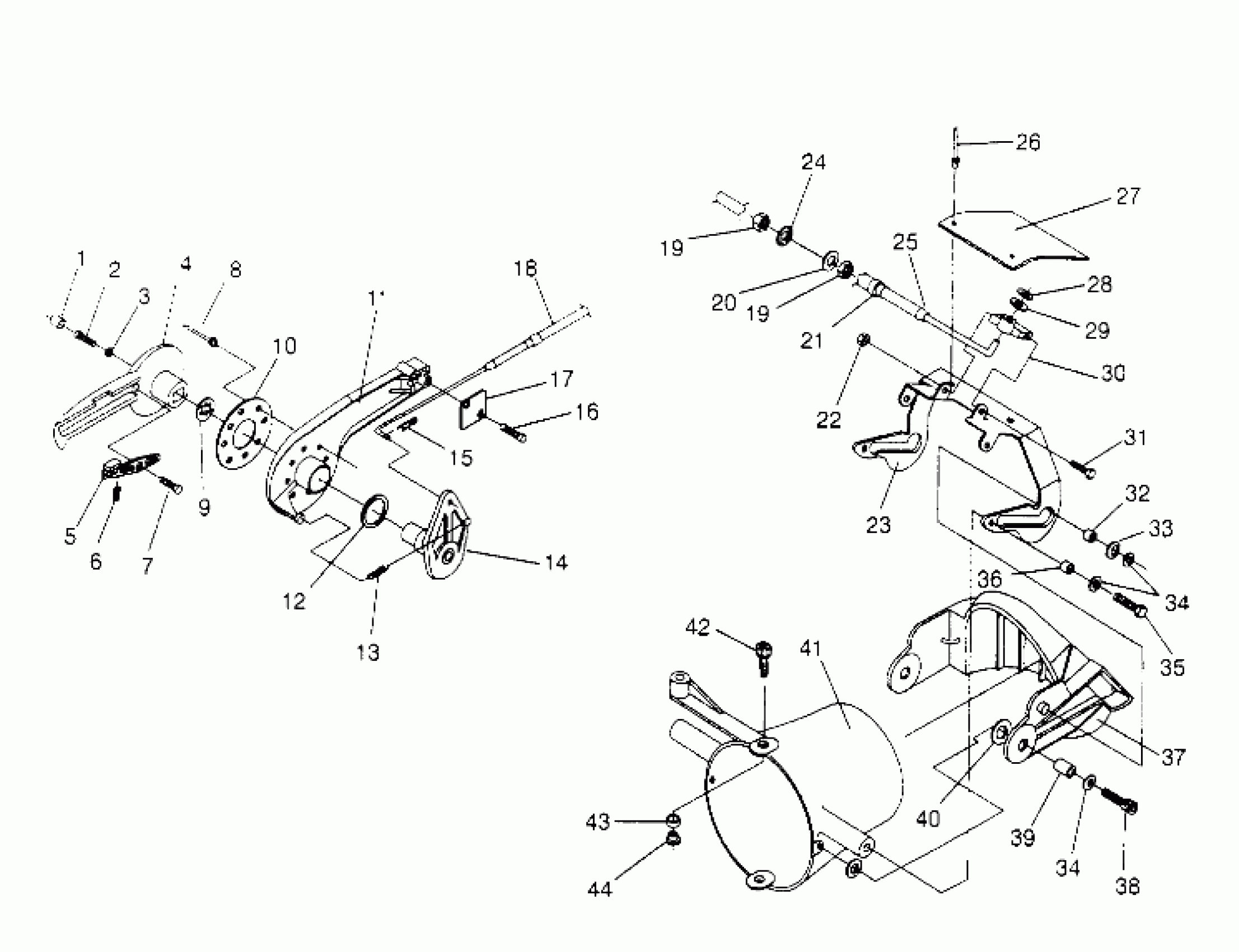

Polaris SLT 750 - B954170 REVERSE SLT 750 B954170 (4930563056B012) Diagram

#

Description
Price

1

CAP,REV.LEVER,CARIB.BLUE

5431696-196

$9.29

2

SCREW, S.S.(10)

7515141

$1.37

3

WASHER, FLAT, S.S.(10)

7555839

Unavailable

4

LEVER,REV,CAR.BLUE

5431979-196

Unavailable

5

LOCK,REV.LEVER

5431525

Unavailable

6

SPRING,REVERSE LOCK

7041341

$3.81

7

SCREW(10)

7512065

Unavailable

8

RIVET(50)

7621480

Unavailable

9

RING,RETAINING(10)

7710430

$7.94

10

GASKET, REV.BRKT.

5810998

$2.46

11

BRKT,REV.LEVER

5431615

$11.51

12

O-RING

5410814

Unavailable

13

SPRING,DETENT,REV.

7041313

$2.62

14

ARM,REVERSE

5431980

$92.99

15

PIN, COTTER(10)

7661010

$1.19

16

SCREW(10)

7512049

Unavailable

17

PLATE,CABLE

5240257

Unavailable

18

CABLE,REVERSE,SLT

7080508

Unavailable

19

NUT (10)

7542528

$2.19

19

NUT (10)

7542528

$2.19

20

Washer

1860103

$3.33

21

COVER, STEERING

1860109

$2.14

22

NUT, HEX, S.S.(10)

7541931

$5.99

23

ACTUATOR,REV.GATE

5240139

Unavailable

24

WASHER, LOCK,S.S.(10)

7571625

$2.38

25

SEAL,ROD,STRG.

1860108

Unavailable

26

RIVET

7621478

Unavailable

27

SHIELD,REV.ACTUATOR

5431517

Unavailable

28

RING,RETAINING Substituted by 7080618

7710431

$1.75

29

WASHER, FLAT, S.S.(10)

7555837

$1.59

30

JOINT, ACTUATOR

5431632

$10.29

31

SCREW, S.S.(10)

7512063

Unavailable

32

BUSHING,ACTUATOR,(10)

5020686

Unavailable

33

RING-E,RET.(10)

7710427

Unavailable

34

WASHER,FLAT,S.S.(10)

7555874

$2.38

34

WASHER,FLAT,S.S.(10)

7555874

$2.38

35

BOLT, S.S.(10)

7515361

$2.19

36

BUSHING,ACTUATOR,SHORT

5020740

Unavailable

37

GATE,REVERSE,BLK.

5431614

Unavailable

38

BOLT, S.S.(10)

7515368

Unavailable

39

Collar

5020683

$6.59

40

SPACER,REVERSE GATE

5431506

Unavailable

41

NOZZLE,STRG,SLT

5130999

Unavailable

42

BOLT, S.S.(10)

7515366

Unavailable

43

Collar

5130938

Unavailable

44

BRG,STRG.NOZZLE,(10)

5431518

Unavailable
