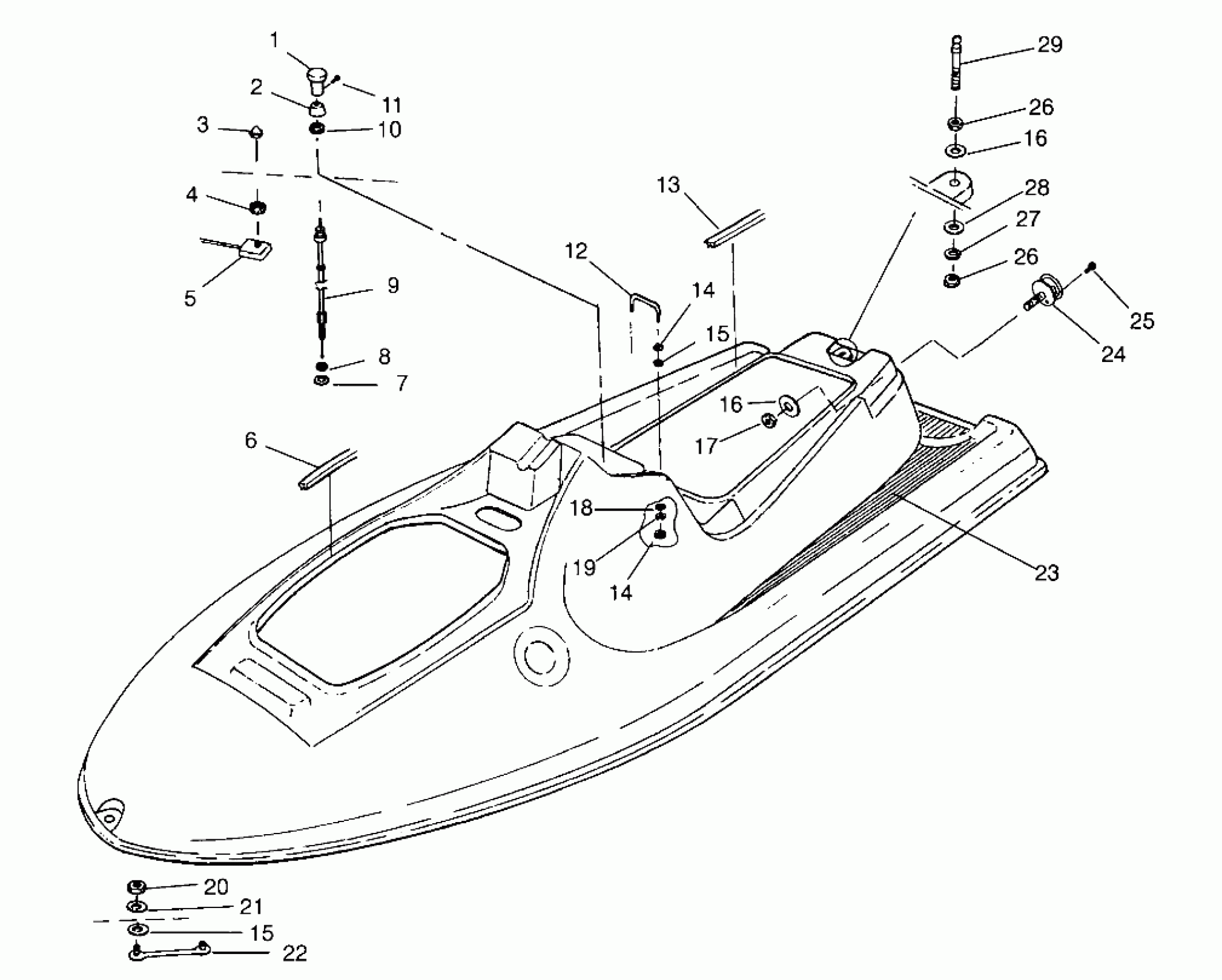

Polaris SLT 750 - B954170 HULL and BODY ASSEMBLY SLT 750 B954170 (4930563056A006) Diagram

#

Description
Price

1

KNOB,CHOKE

2080004

$9.05

2

COVER

2080003

Unavailable

3

NUT,WATERPROOF,STARTER SWITCH

7080513

Unavailable

4

NUT,BRASS,(10)

7544501

$1.90

5

SWITCH,START.

4110155

$54.99

6

SEAL,STOR.COMPART.

5521319

$45.24

7

WASHER

2010126

Unavailable

8

NUT

2010125

$0.71

9

CABLE,CHOKE

7080505

$53.17

10

NUT

2080002

$2.06

11

Screw

2080005

$0.69

12

U-BOLT,SEAT RETAINER

5224512

Unavailable

13

SEAL,SEAT

5521318

Unavailable

14

NUT(10)

7542140

$1.14

14

NUT(10)

7542140

$1.14

15

WASHER,RUBBER(10)

7555870

$0.40

15

WASHER,RUBBER(10)

7555870

$0.40

16

WASHER, FLAT(10)

7555845

Unavailable

16

WASHER, FLAT(10)

7555845

Unavailable

17

NUT,HEX,S.S.(10)

7542455

Unavailable

18

WASHER(10)

7555836

$3.99

19

WASHER, LOCK, S.S.(10)

7555838

Unavailable

20

NUT,NYLOK,S.S.(10)

7542133

Unavailable

21

WASHER, FLAT, S.S.(10)

7555839

Unavailable

22

STRAP, BOW

2670150

$49.21

23

PAD,LH,CTR.FOOTWELL,P.VELVET Substituted by 2871680-01

5810867-194

Unavailable

23

PAD,LH,F.F'WELL,P.VLT.

5810869-194

$18.10

24

HOOK,SKI-TOW

7061002

$61.90

25

SCREW(10)

7515388

$0.39

26

NUT, HEX, S.S.,(10)

7542454

Unavailable

26

NUT, HEX, S.S.,(10)

7542454

Unavailable

27

WASHER, LOCK, S.S.(10)

7552607

$1.39

28

WASHER, FLAT(10)

7555846

$5.56

29

PLUNGER,LATCH

5020753

Unavailable
