HULL and BODY ASSEMBLY SLT 750 B954170 (4930563056A005)

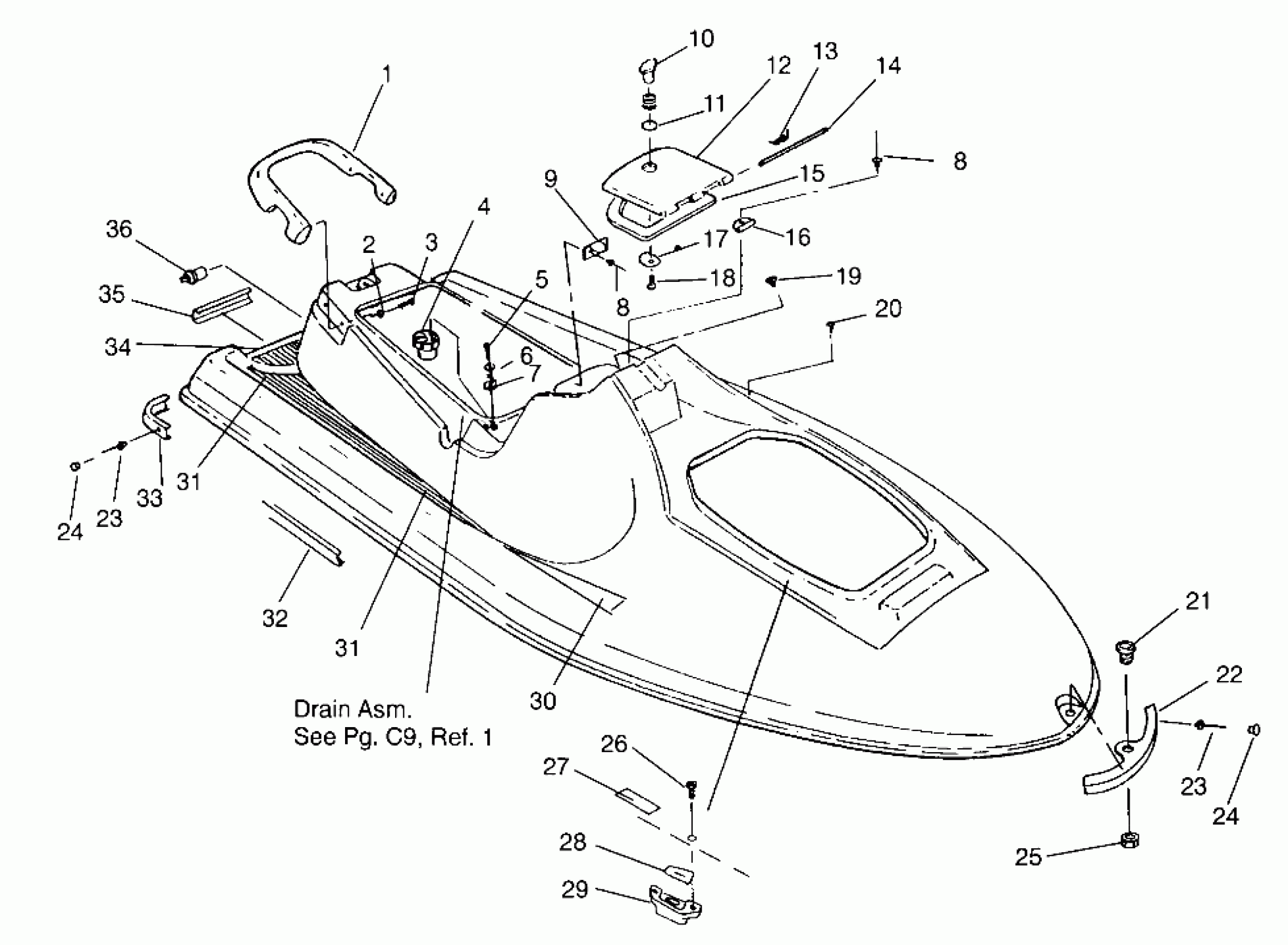

Polaris SLT 750 - B954170 HULL and BODY ASSEMBLY SLT 750 B954170 (4930563056A005) Diagram
#
1
HANDLE,GRAB,PURPLE Substituted by 2200783-194
5431729-194
Unavailable
2
WASHER, FLAT, S.S.(10)
7555839
Unavailable
3
SCREW, S.S.(10)
7515141
Unavailable
4
DRAIN ASM.
3240220
Unavailable
5
SCREW, S.S.(10)
7516805
Unavailable
6
WASHER, LOCK(10)
7552613
Unavailable
7
WASHER,RUBBER(10)
7555870
Unavailable
8
RIVET(50)
7621479
$1.99
8
RIVET(50)
7621479
$1.99
9
PLATE,CONSOLE
5240138
Unavailable
10
KNOB,CONSOLE LID,CAR.BLUE
5431514-196
Unavailable
11
O RING
5410589
$4.99
12
LID,CONSOLE,CARIB.BLUE
5431602-196
Unavailable
13
SPRING,CONSOLE LID
7041333
Unavailable
14
PIN,HINGE
5333185
Unavailable
15
SEAL,CONSOLE
5521284
Unavailable
16
HINGE,CONSOLE LID,BLUE
5431515-196
Unavailable
17
LATCH,CONSOLE
5240137
Unavailable
18
SCREW, S.S.(10)
7515143
Unavailable
19
CLIP,PLASTIC DART(10)
7670078
$3.19
20
BUMPER,DECK,(SLT)
5432046
Unavailable
21
GROMMET,BOW EYE,PURP.VIOLET
5431950-194
Unavailable
22
BUMPER,FR,PURP.VELVET
5410978-194
Unavailable
23
RIVET(50)
7621511
Unavailable
23
RIVET(50)
7621511
Unavailable
24
PLUG,R.BUMP,PUR.VEL.
5431994-194
Unavailable
24
PLUG,R.BUMP,PUR.VEL.
5431994-194
Unavailable
25
NUT,BOW EYE,PURP.VIOLET
5431951-194
Unavailable
26
SCREW(10)
7512049
Unavailable
27
DECAL,DOOR,COMPARTMENT
7073717
Unavailable
28
SEAL,DOOR SUPPORT
5810571
Unavailable
29
STOP,DOOR SUPPORT
5431960
Unavailable
30
PAD,RH,F.F'WELL,P.VLT. Substituted by 5811476-194
5810870-194
Unavailable
31
PAD,RH,CTR.F'WELL,P.VLT.
5810868-194
Unavailable
31
PAD,RH,CTR.F'WELL,P.VLT.
5810868-194
Unavailable
32
RAIL,RUB,SIDE,PURP.VELVET
5521307-194
Unavailable
32
RAIL,RUB,RH,PURP.VELVET
5521314-194
Unavailable
33
BUMPER,LH,R.,PUR.VEL. Substituted by 2201026-194
5431561-194
Unavailable
33
BUMPER,RH,R.,PUR.VEL. Substituted by 2201026-194
5431562-194
Unavailable
34
PAD,R.FOOTWELL,PUR.VLT.
5810880-194
Unavailable
35
RAIL,RUB,REAR,PURP.VELVET
5521308-194
Unavailable
36
PLUG,BAIL,7/8
7010076
Unavailable
