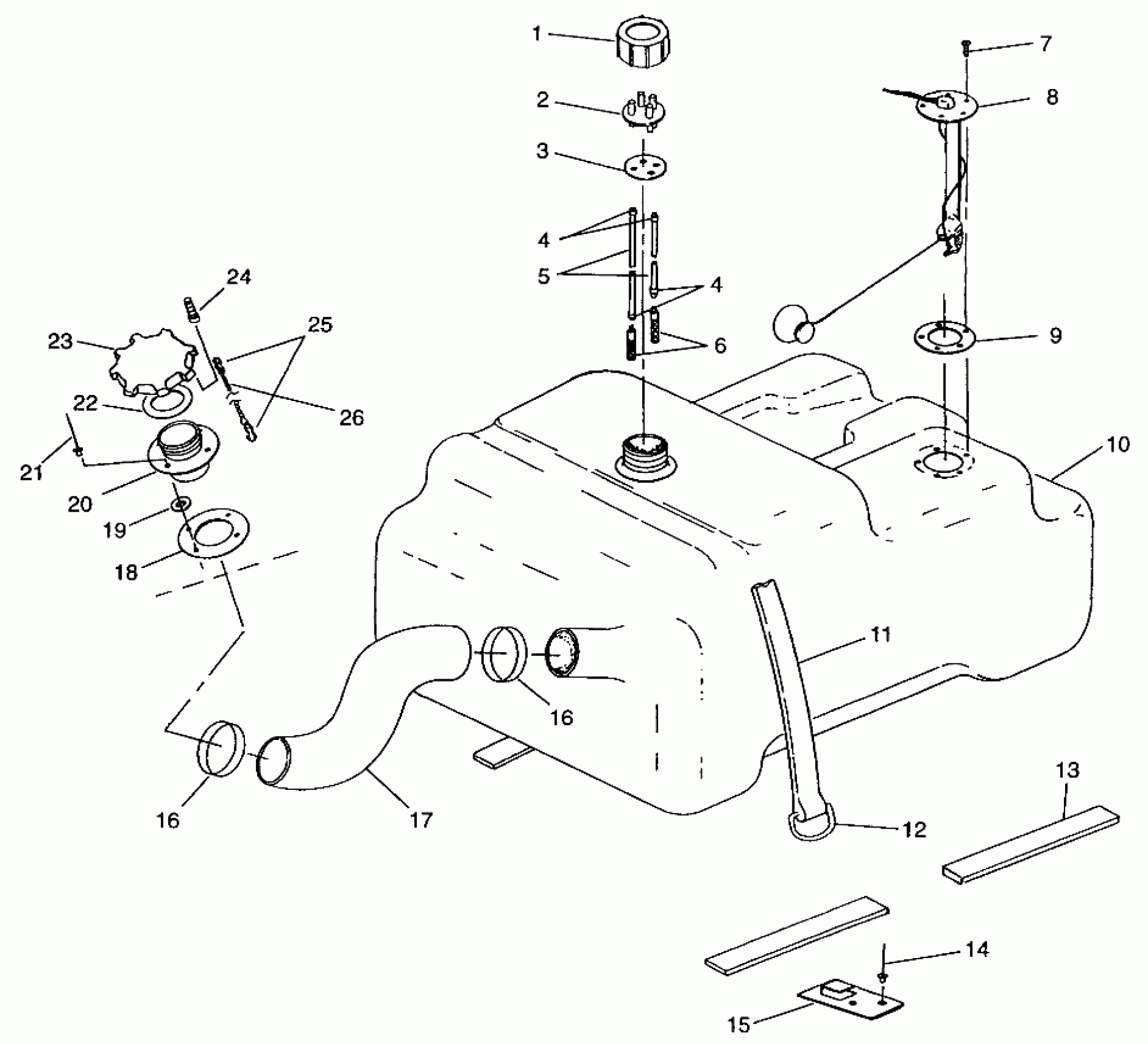

Polaris SLT 750 - B954170 FUEL TANK w/SEPARATE FUEL SENDER and PICK-UP SLT 750 B954170 (4930563056A009) Diagram

RETAINER,DROPTUBE,ALUM.

5020801

Unavailable

HOLDER, DROPTUBE

5431347

Unavailable

GASKET,DROPTUBE HOLDER

5810511

Unavailable

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

FUELPICKUP,W/STRAINER

7052037

$12.94

SCREW(10)

7512056

Unavailable

SENDER ASM,FUEL LEVEL

2410021

Unavailable

GASKET,SENDING UNIT

5810858

$74.99

TANK,FUEL Substituted by 2511242

5431607

Unavailable

STRAP,RUBBER

5410854

Unavailable

HOOK,"D",S.S.

5224577

Unavailable

PAD, FUEL TANK

5810926

Unavailable

RIVET(50)

7621479

$1.99

CLIP,STRAP

5240134

Unavailable

CLAMP, HOSE, S.S.(10)

7080451

$7.19

CLAMP, HOSE, S.S.(10)

7080451

$7.19

HOSE,FUEL-FILL

5410936

Unavailable

SEAL,FUEL INLET

5810931

Unavailable

WASHER, FLAT, S.S.(10)

7555837

Unavailable

INLET,FUEL,BLK(PWC) Substituted by 2872029

5432613-070

Unavailable

RIVET,(50)

7621491

Unavailable

GASKET,FUEL CAP Substituted by 2872029

5810871

Unavailable

CAP ASM,FUEL Substituted by 2872029

2653009

Unavailable

SCREW(10)

7511873

Unavailable

Coupling

7080442

Unavailable

CHAIN Substituted by 7080710

7080440

Unavailable

INLET ASM,FUEL CAP (Incl. 18-26)

2872029

Unavailable
