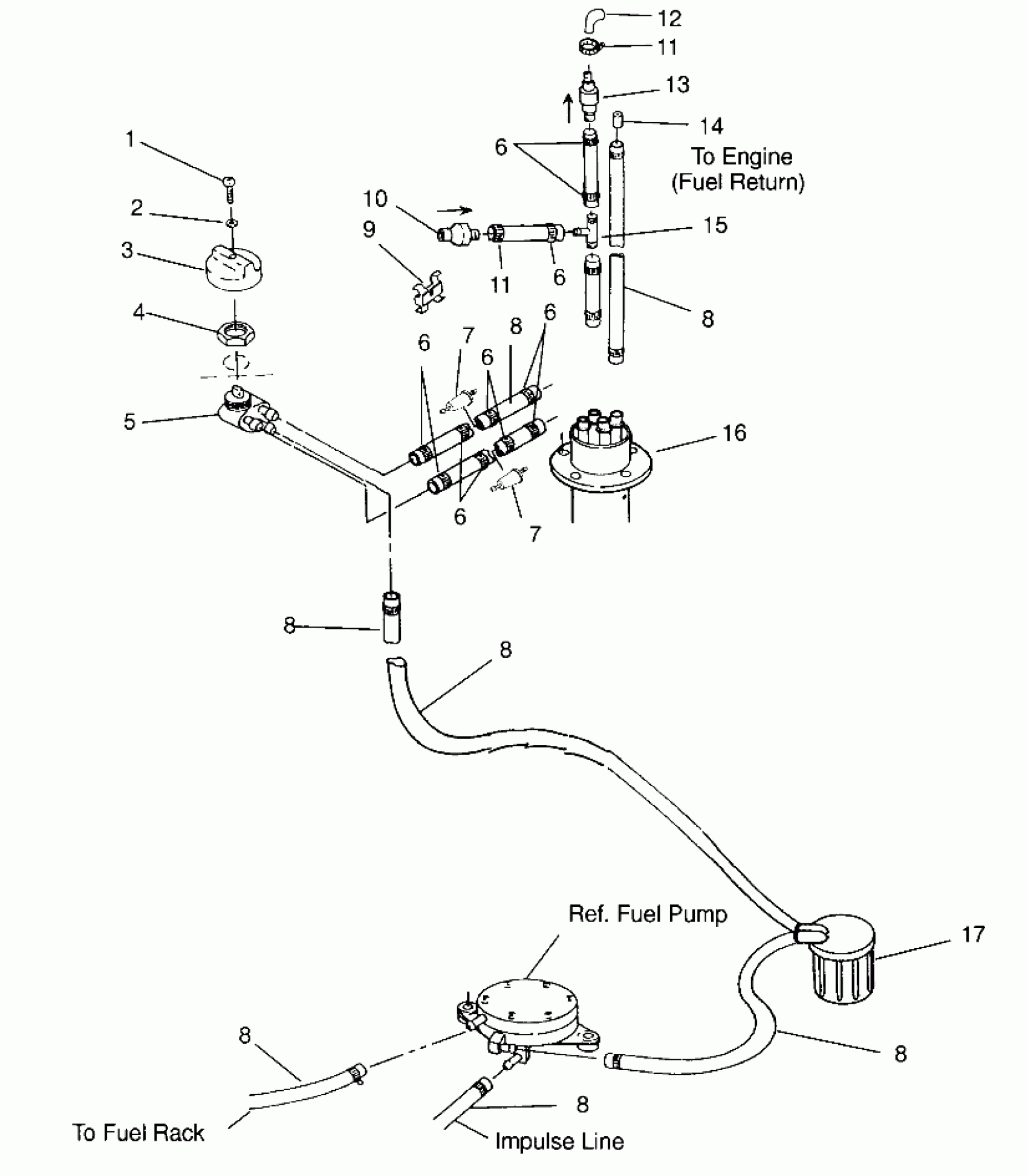

Polaris SLT 750 - B954170 FUEL SYSTEM SLT 750 B954170 (4930563056A011) Diagram

#

Description
Price

1

SCREW, S.S.(10)

7516302

$3.99

2

WASHER, FLAT, S.S.(10)

7555840

$3.35

3

KNOB, FUEL VALVE

5431360

Unavailable

4

NUT, FUEL VALVE

5431451

Unavailable

5

VALVE, CHECK

7052063

Unavailable

6

CLAMP, HOSE, S.S.(10)

7080476

$6.39

6

CLAMP, HOSE, S.S.(10)

7080476

$6.39

6

CLAMP, HOSE, S.S.(10)

7080476

$6.39

6

CLAMP, HOSE, S.S.(10)

7080476

$6.39

6

CLAMP, HOSE, S.S.(10)

7080476

$6.39

6

CLAMP, HOSE, S.S.(10)

7080476

$6.39

7

FILTER FUEL,(10)

2530008

$4.84

7

FILTER FUEL,(10)

2530008

$4.84

8

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.) Substituted by 8450046-250

8450046-1525

Unavailable

9

T-CLIP(10)

7080482

$6.39

10

VALVE,VACUUM CHECK

7052118

Unavailable

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

Grommet, Vent

5410682

Unavailable

13

VALVE,CHECK,RELIEF

7051015

Unavailable

14

RESTRICTOR,FUEL RTN.LINE

5020773

Unavailable

15

FITTING,TEE

7052111

Unavailable

16

Holder, Drip Tube (See Pg., Ref.)

-------

Unavailable

17

Asm., Drain (See Pg., Ref.)

-------

Unavailable
