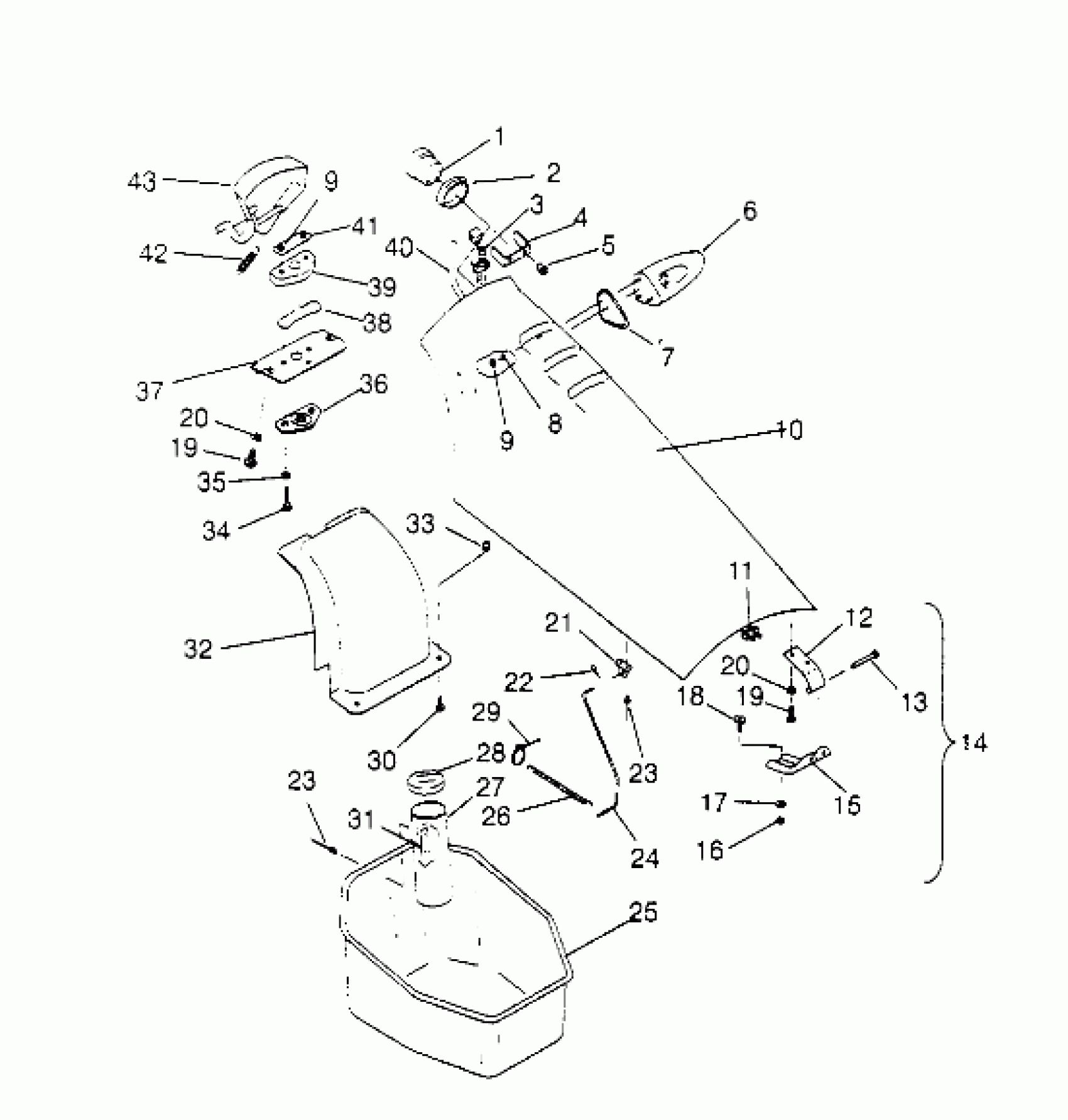

Polaris SLT 750 - B954170 FRONT STORAGE COMPARTMENT SLT 750 B954170 (4930563056A008) Diagram

#

Description
Price

1

GAUGE,MULTI-FUNCTION

3280147

Unavailable

2

ADAPTER, MFD.

5431987

$3.49

3

HARNESS,WIRE GAUGE

2460469

$98.41

4

BRKT,MFD MTG,LONG

5240951

Unavailable

5

NUT,LOCK,NYLON,(10)

7542142

$1.19

6

MIRROR ASM,PORT

2652110-196

Unavailable

6

MIRROR ASM,STARB'D

2652111-196

Unavailable

7

SEAL,MIRROR,PORT

5410898

$3.46

7

SEAL,MIRROR,STARBOARD

5410899

$5.71

8

SPACER,MIRROR

5431823

$3.10

9

NUT,NYLOK,S.S.(10)

7542133

Unavailable

9

NUT,NYLOK,S.S.(10)

7542133

Unavailable

10

COMP.DOOR ASM,PUR.VEL.

2631687-194

Unavailable

11

GROMMET,WIRE HARNESS

5410849

$1.35

12

HINGE, UPPER [No Longer Available]

5240278

Unavailable

13

PIN, HINGE Substituted by 2635012

7661629

$14.29

14

HINGE ASM,LID (Incl. 12, 13, 15)

2635014

$15.56

15

HINGE, LOWER [No Longer Available]

5222699

Unavailable

16

NUT, HEX, S.S.(10)

7542335

Unavailable

17

WASHER, FLAT, S.S.(10)

7555831

Unavailable

18

PLATE,SCREW,HINGE

1060111

Unavailable

19

BOLT, S.S.(10)

7515121

$0.59

19

BOLT, S.S.(10)

7515121

$0.59

20

WASHER, LOCK, S.S.(10)

7555838

Unavailable

20

WASHER, LOCK, S.S.(10)

7555838

Unavailable

21

RETAINER,DOOR SUPPORT

5240340

$2.46

22

PIN, COTTER(10)

7661010

$1.19

23

RIVET(50)

7621479

$1.98

23

RIVET(50)

7621479

$1.98

24

SUPPORT,DOOR,SLT

5224524

$38.41

25

BUCKET,FR.STORAGE Substituted by 5432281

5431603

Unavailable

26

SPRING,DOOR SUPPORT

7042038

Unavailable

27

CONTAINER,FIRE EXT. Substituted by 1060114

5431841

$32.70

28

COVER,FIRE EXT. Substituted by 1060114

5431842

$32.70

29

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

30

BOLT, SS.(10)

7512045

$4.99

31

PLATE,FIRE EXTINGUISHER Substituted by 5211740

5211548

Unavailable

32

BAFFLE, AIR INTAKE

5431648

$23.02

33

NUT-WELL(10)

7541918

Unavailable

34

BOLT, SS.(10)

7515123

$2.19

35

WASHER, FLAT, S.S.(10)

7555839

Unavailable

36

Plate, Bottom, Seat Base Latch (See Pg. A12, Ref. 8)

----

Unavailable

37

BRKT,LATCH,COMP.DOOR

5240617

Unavailable

38

Spring, Seat Base Latch (See Pg. A12, Ref. 10)

----

Unavailable

39

Plate, Top, Seat Base Latch (See Pg. A12, Ref. 12)

----

Unavailable

40

FUEL LINE,(427 CM.)

8450058-427

Unavailable

41

PLATE, LATCH STOP Substituted by 1060117

5211492

$7.38

42

SPRING

7041342

$4.13

43

HANDLE,STOR.DOOR,BLK.

5431510

Unavailable
