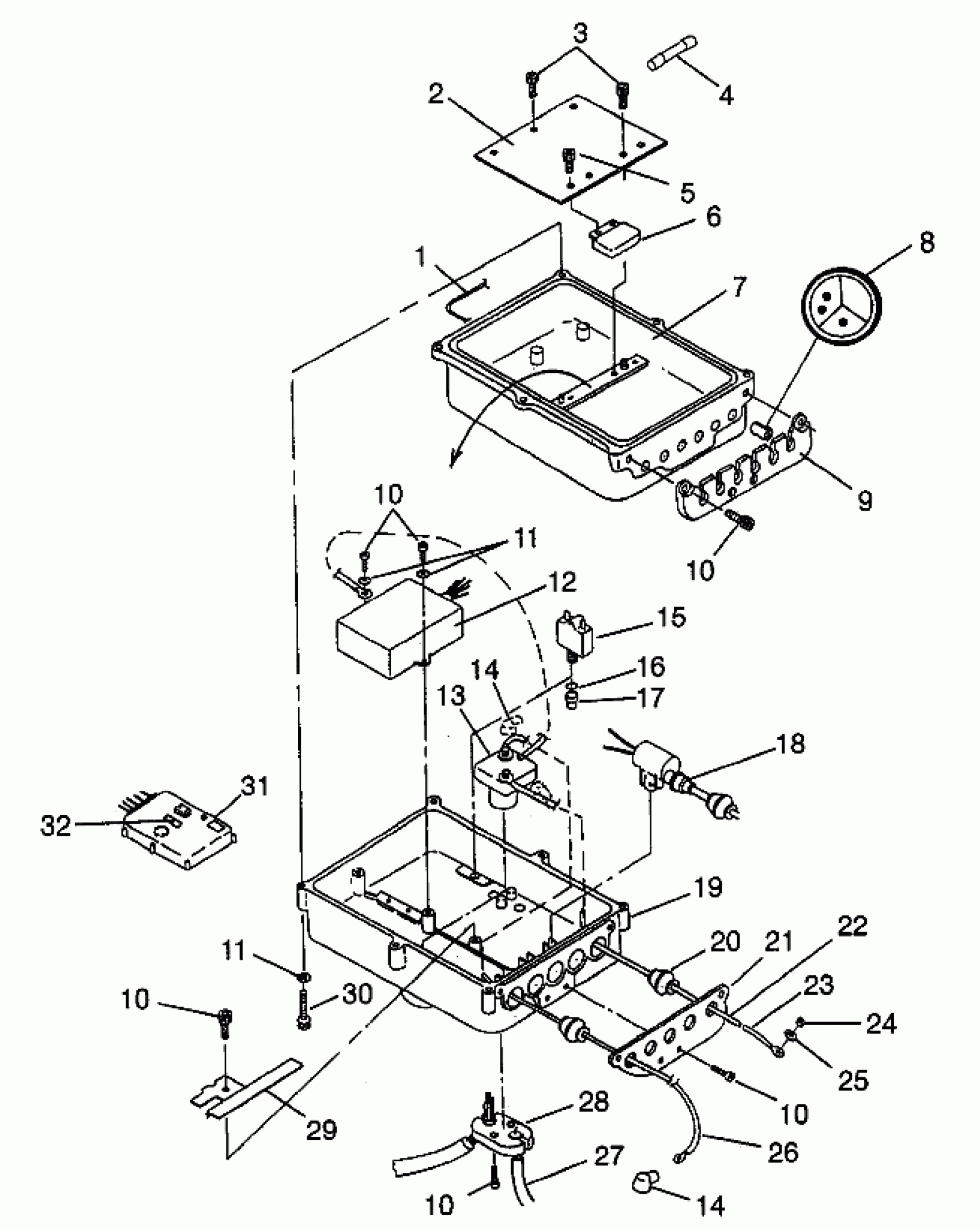

Polaris SLT 750 - B954170 ELECTRICAL BOX SLT 750 B954170 (4930563056B011) Diagram

#

Description
Price

1

O-RING,(ELEC.BOX)

5410912

Unavailable

2

BOARD,TERMINAL Substituted by 4040060

4040045

$18.10

3

BOLT, S.S.(10)

7512042

Unavailable

4

FUSE,(10)

4060111

Unavailable

5

SCREW,S.S.(10)

7512072

$0.40

6

REGULATOR/RECT.,LR-21

4060108

Unavailable

7

BOTTOM,ELEC.BOX Substituted by 5131256

5131015

Unavailable

8

O-RING(10)

5410818

$0.79

8

GROMMET,SECTION,2-HOLE

5410852

Unavailable

8

GROMMET,SECTION,NO HOLE

5410850

$2.14

8

GROMMET,SECTION,1 HOLE

5410851

Unavailable

9

PLATE,6-HOLE,CAST

5630497

Unavailable

10

BOLT, S.S.(10)

7515118

Unavailable

10

BOLT, S.S.(10)

7515118

Unavailable

10

BOLT, S.S.(10)

7515118

Unavailable

10

BOLT, S.S.(10)

7515118

Unavailable

10

BOLT, S.S.(10)

7515118

Unavailable

11

WASHER(10)

7555836

$3.99

11

WASHER(10)

7555836

$3.99

12

CDI SYSTEM

3240217

Unavailable

13

SWITCH, MAGNETIC

3240204

Unavailable

14

INSULATOR-CABLE

5410346

$7.73

14

INSULATOR-CABLE

5410346

$7.73

15

CKT.BREAKER,15A.(WATER.)

2434011

$20.48

16

O-RING

5410725

$1.03

17

BOOT,THREADED,RED

7080461

$13.99

18

GROMMET, COIL

5410677

Unavailable

19

TOP,ELECT.BOX

5131018

Unavailable

20

GROMMET, 16 GA.(10)

5410678

$2.14

21

PLATE, 5-HOLE

5630416

Unavailable

22

CONDUIT,CONVOLUTED Substituted by 4010051-30

4010051

Unavailable

23

CABLE,RED,SOL./START.

4010081

Unavailable

24

NUT, 6 MM.,S.S.(10)

7546705

$4.76

25

WASHER, LOCK(10)

7552613

Unavailable

26

CABLE,RED,BATT/SOL.

4010082

Unavailable

27

HARNESS,WIRE GAUGE

2460469

$98.41

28

PLATE, 2-HOLE

5630415

$12.30

29

BRKT,RETAINER,COIL

5240414

$17.49

30

BOLT(10)

7515119

Unavailable

31

DECAL,ELECT.BOX RESET

7073734

Unavailable

32

DECAL,WARN,HI.VOLT.

7073713

Unavailable
