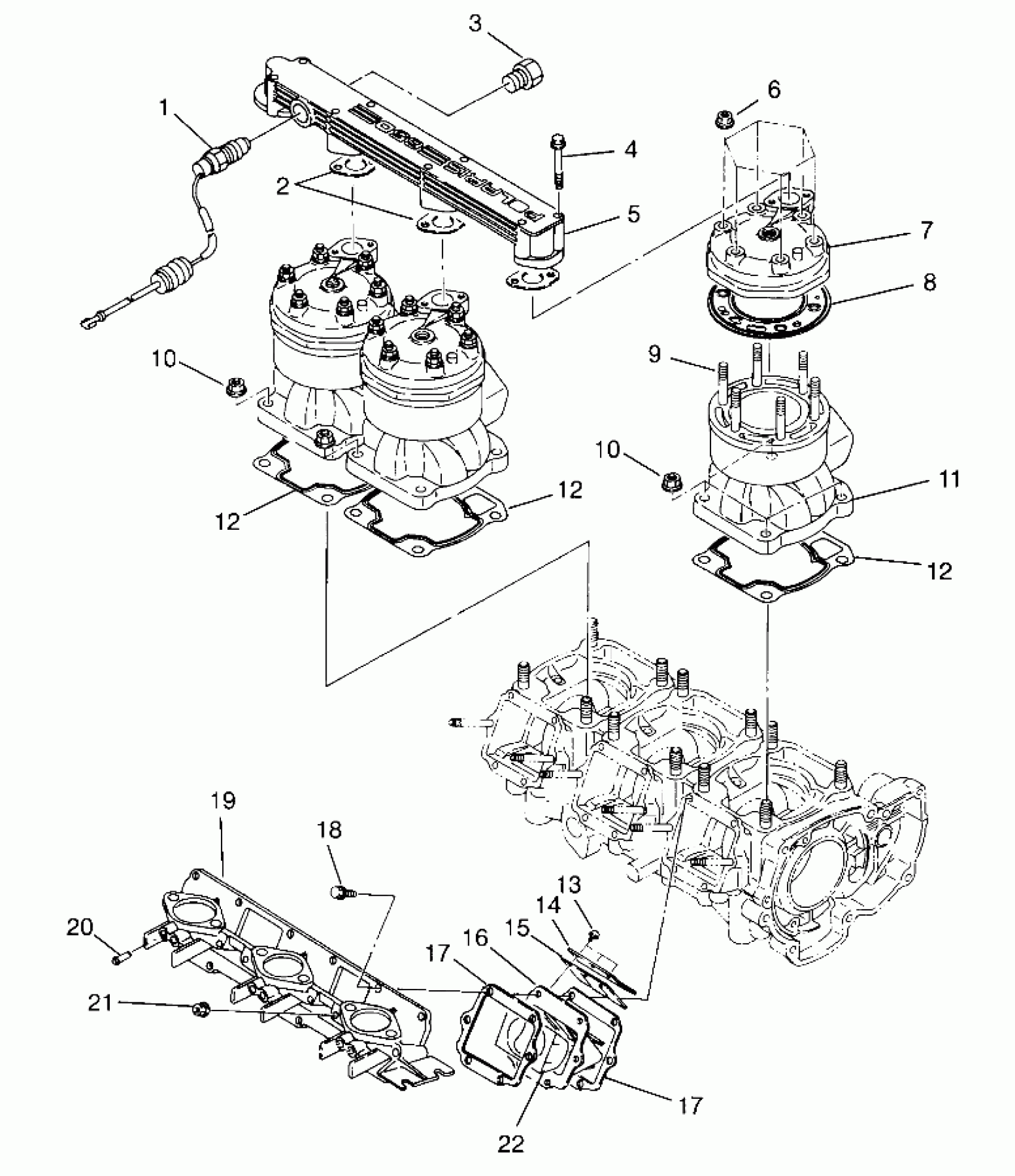

Polaris SLT 750 - B954170 CYLINDER & MANIFOLD SLT 750 B954170 (4930563056C001) Diagram

#

Description
Price

1

SWITCH,THERMO

3240223

Unavailable

2

GASKET(10)

3082937

Unavailable

3

PLUG

3240219

$12.21

4

BOLT, FLANGE

3240075

Unavailable

5

OUTLET, WATER MANIFOLD

3240218

Unavailable

6

NUT, FLANGE,(10)

3240058

Unavailable

7

HEAD, CYLNDER

3240212

Unavailable

8

GASKET, HEAD (Head)

3240213

Unavailable

9

STUD

3240211

Unavailable

10

NUT, FLANGE Substituted by 7546906

3240059

$1.99

10

NUT, FLANGE Substituted by 7546906

3240059

$1.99

11

CYLINDER ASM. (Incl. 9)

3240210

$549.99

12

GASKET, CYLINDER

3240055

Unavailable

12

GASKET, CYLINDER

3240055

Unavailable

12

GASKET, CYLINDER

3240055

Unavailable

13

SCREW&WASHER Substituted by 3084565

3240066

Unavailable

14

Stopper

3240065

Unavailable

15

VALVE, REED(10)

3240064

Unavailable

16

VALVE ASM., REED (Incl. 13-15)

3084147

Unavailable

17

GASKET, REED VALVE,(10)

3084148

Unavailable

17

GASKET, REED VALVE,(10)

3084148

Unavailable

18

BOLT, FLANGE

3240062

Unavailable

19

PIPE,INTAKE (Incl. 20)

3240222

$249.59

20

PIPE

3240061

$3.97

21

NUT, FLANGE

3240063

$1.27

22

STUFFER,(REED VALVE ASM.)

3240164

$12.39
