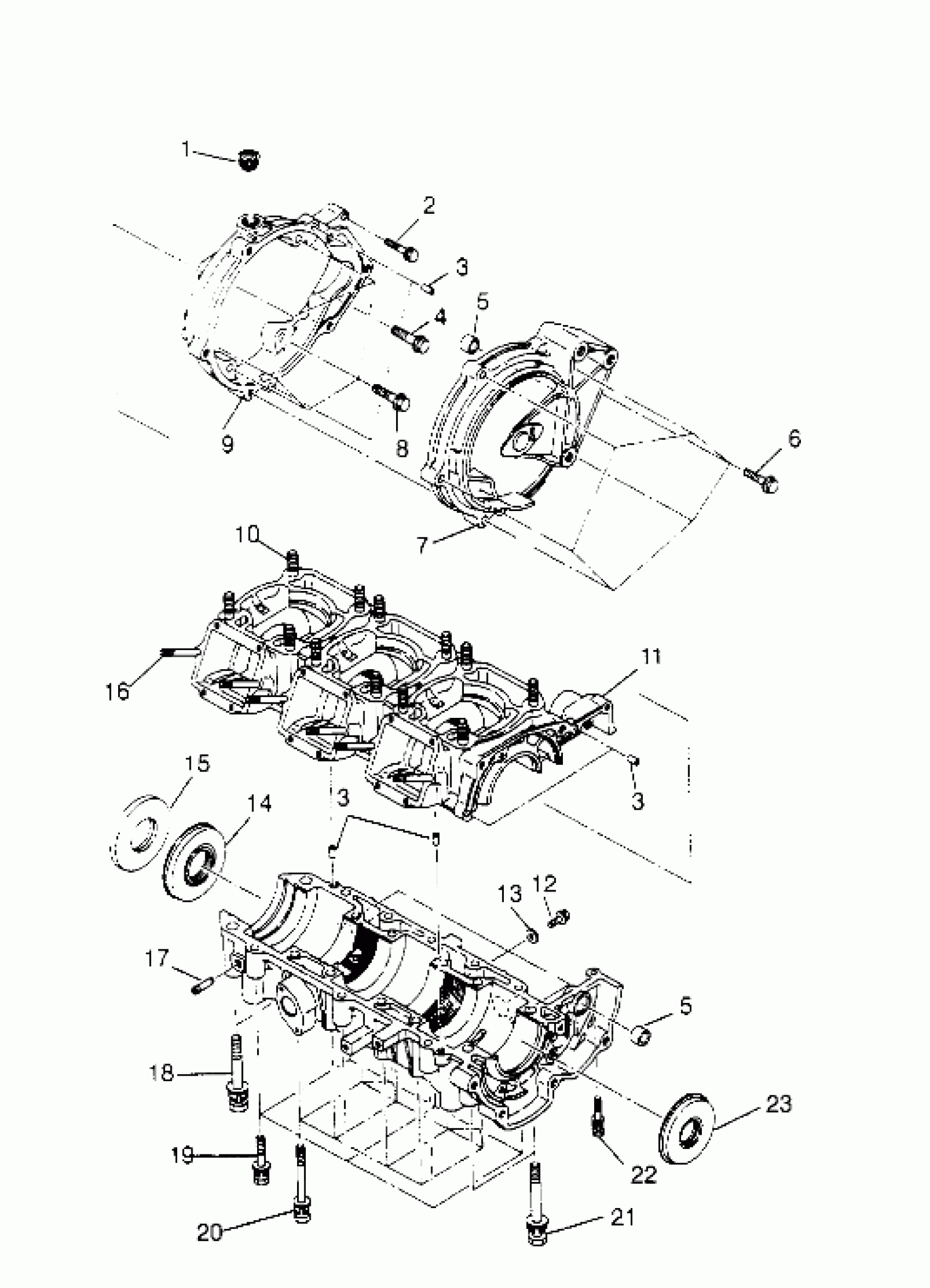

Polaris SLT 750 - B954170 CRANKCASE ASSEMBLY SLT 750 B954170 (4930563056B014) Diagram

#

Description
Price

1

PLUG

3240046

Unavailable

2

BOLT, FLANGE

3240047

$2.54

3

PIN, DOWEL Substituted by 3086838

3080103

$7.14

3

PIN, DOWEL Substituted by 3086838

3080103

$7.14

3

PIN, DOWEL Substituted by 3086838

3080103

$7.14

4

BOLT, FLANGE

3240048

$3.33

5

BUSHING, STARTER

3083669

Unavailable

5

BUSHING, STARTER

3083669

Unavailable

6

BOLT, FLANGE

3240050

$1.43

7

COVER,MAG. (Incl. 5)

3240221

Unavailable

8

Bolt, Flange

3084134

Unavailable

9

CRANKCASE 3 (Incl. 3)

3240044

Unavailable

10

STUD

3240032

$11.11

11

CRANKCASE ASM. (Incl. 3, 5, 10, 16-22)

3240187

Unavailable

12

BOLT, FLANGE(10)

3240040

$0.39

13

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

14

SEAL, OIL

3240042

Unavailable

15

SEAL, OIL

3240043

Unavailable

16

STUD

3240033

Unavailable

17

PIPE, PULSE

3083798

$9.52

18

BOLT&WASHER ASM.

3240035

$7.29

19

BOLT&WASHER ASM.

3240038

$4.37

20

BOLT&WASHER ASM.

3240037

Unavailable

21

BOLT&WASHER ASM.

3240036

Unavailable

22

BOLT&WASHER ASM.

3240039

$2.38

23

SEAL, OIL

3240041

Unavailable
