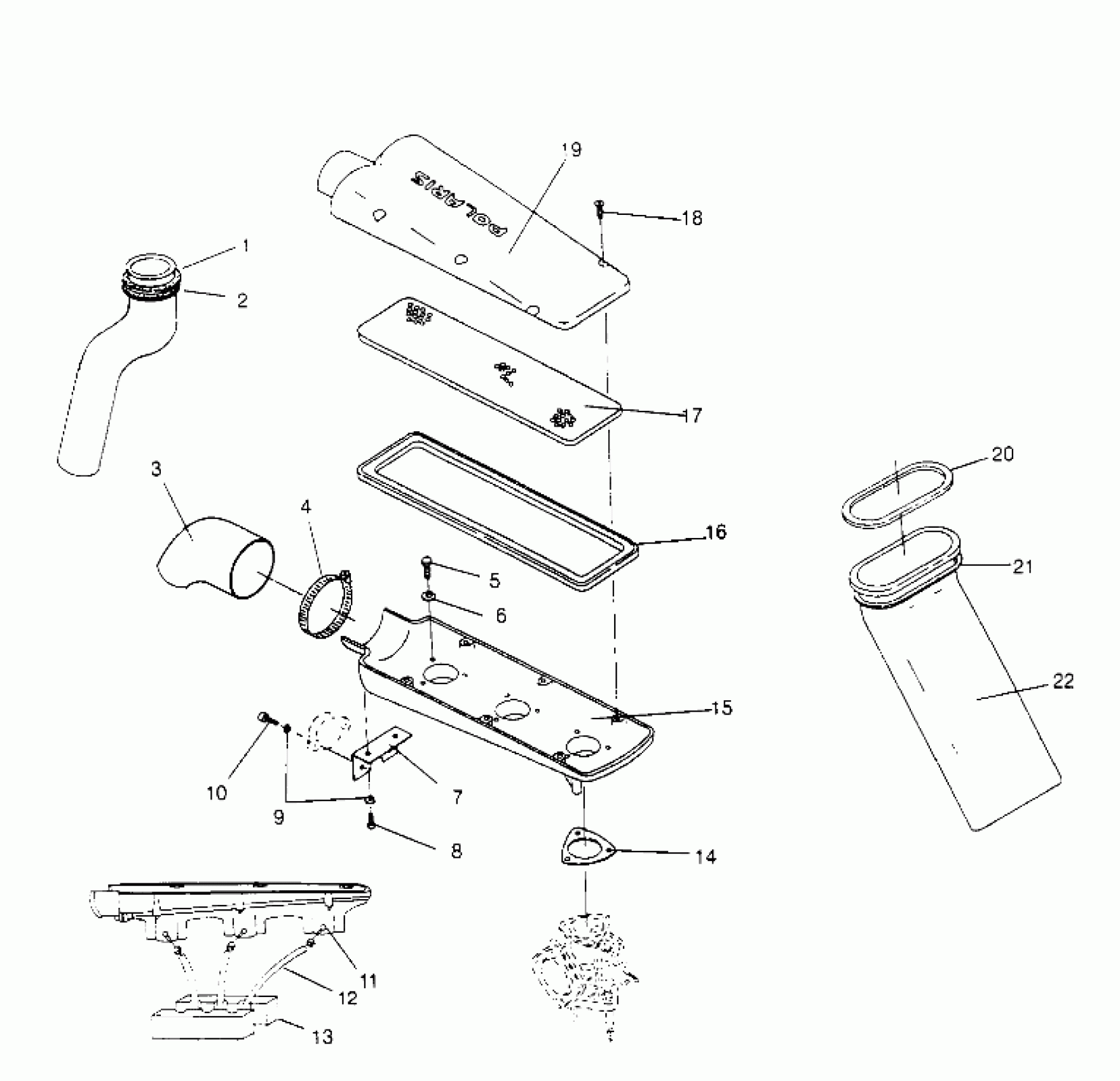

Polaris SLT 750 - B954170 AIR VENT SLT 750 B954170 (4930563056B007) Diagram

#

Description
Price

1

DUCT, AIR OUTLET

5431605

Unavailable

2

GASKET, AIR OUTLET

5410808

Unavailable

3

DUCT,INLET,AIR(SHORT) (Short)

5432063

Unavailable

4

CLAMP, HOSE, S.S.(10)

7080457

Unavailable

5

BOLT(10)

7516801

Unavailable

6

WASHER, LOCK(10)

7552613

Unavailable

7

BRKT, FUEL PUMP,WELD.

1060103

Unavailable

8

BOLT, S.S.(10)

7515121

Unavailable

9

WASHER, LOCK, S.S.(10)

7555838

Unavailable

10

BOLT(10)

7515127

Unavailable

11

Check Valve (See Pg., Ref.)

-------

Unavailable

12

Vinyl Pipe (See Pg., Ref.)

-------

Unavailable

13

T-CLIP(10)

7080471

$3.59

14

GASKET,ARRESTOR/CARB.

5830013

Unavailable

15

INTAKE ASM,LOW,W/OIL FITTING

1253129

Unavailable

16

GASKET,INT.SCREEN

5410687

Unavailable

17

SCREEN, INTAKE

5222779

Unavailable

18

SCREW(10) Substituted by 7512060

7512086

Unavailable

19

INTAKE,UPPER MANIFOLD

5431406-157

Unavailable

20

SEAL,UP.AIR INTAKE

5810884

Unavailable

21

SEAL,LOW AIR INTAKE

5810885

Unavailable

22

DUCT,AIR INTAKE

5431597

Unavailable
