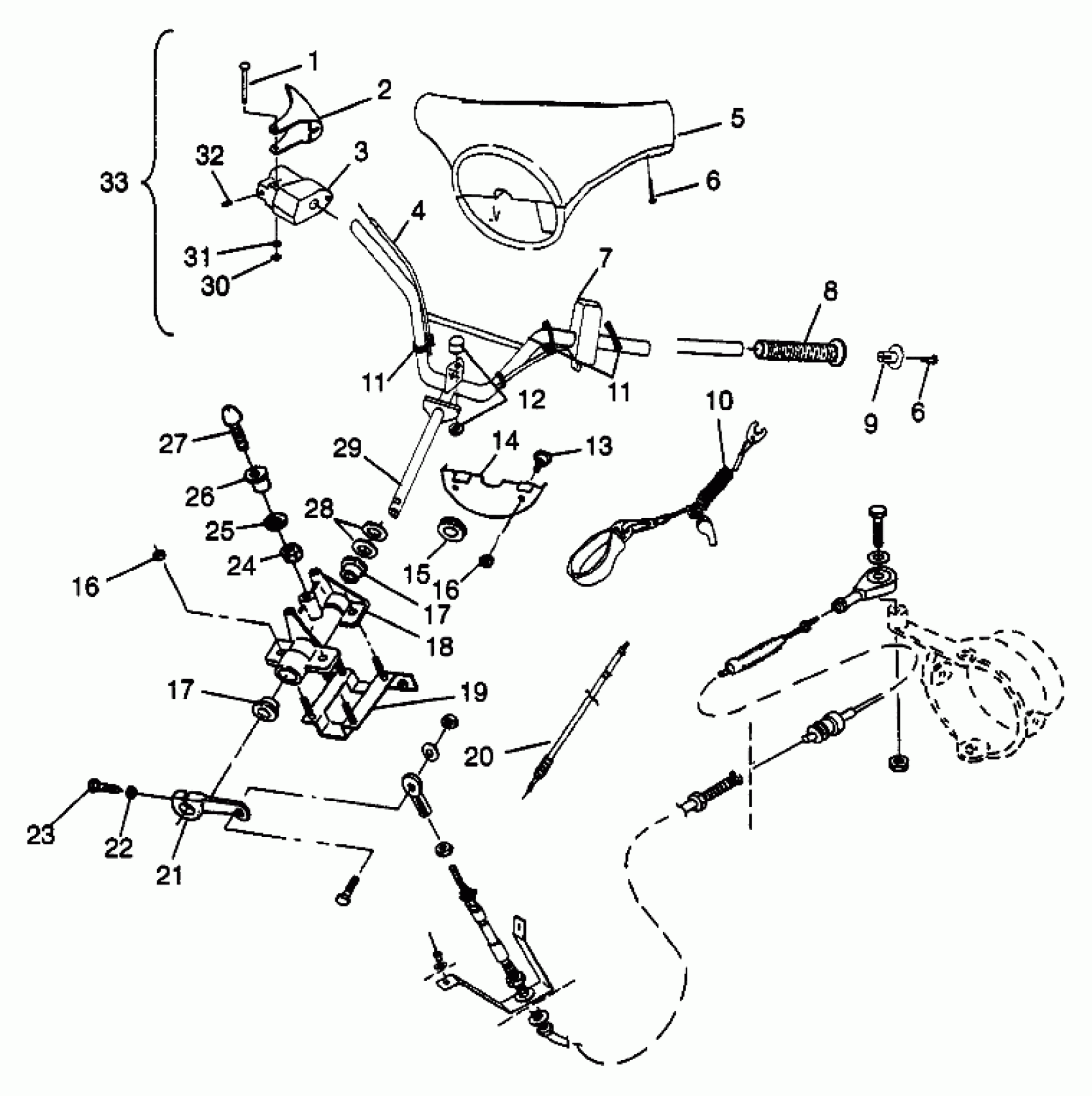

Polaris SLT 700 - B974572 STEERING SLT 700 B974572 (4941124112A013) Diagram

#

Description
Price

1

Pin, Retaining

7661628

Unavailable

2

LEVER,THROTTLE CONTROL

5431397

Unavailable

3

BLOCK,THROTTLE CONTROL

5431396

Unavailable

4

CABLE,THROTTLE

7080577

Unavailable

5

PAD,H'BAR,LSR.BLUE

5432515-217

Unavailable

6

SCREW, SS.(10)

7512047

$1.99

6

SCREW, SS.(10)

7512047

$1.99

7

SWITCH,ST/SP/BG/CK

4110216

Unavailable

8

GRIP,H'BAR,WD.GRP. Substituted by 5411221-070

5411221-237

Unavailable

9

PLUG,HANDGRIP,BLK.

7010082-070

$2.94

10

LANYARD,W/WHISTLE

7080675

Unavailable

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

ALARM,HI-TEMP/LO-OIL

4040059

$69.84

13

BOLT,SHOULDER(10)

7515387

Unavailable

14

PLATE,GROMMET

5240334

$9.08

15

GROMMET,CABLE,MFD(SLT)

5411111

Unavailable

16

NUT, HEX, S.S.(10)

7542335

Unavailable

16

NUT, HEX, S.S.(10)

7542335

Unavailable

17

BUSHING,STRG.SUPPORT

5431382

Unavailable

17

BUSHING,STRG.SUPPORT

5431382

Unavailable

18

HUB,SPRT.STRG/ANODE.

5131509

Unavailable

19

PLATE, BOLT

1060101

Unavailable

20

CABLE,CHOKE,71.82

7080672

$34.44

21

ARM,STRNG.,ANODIZED

5131441

$113.99

22

WASHER, LOCK, S.S.(10)

7552610

Unavailable

23

BOLT, S.S.(10)

7515375

$3.81

24

NUT, HEX, S.S.,(10)

7542454

Unavailable

25

WASHER, FLAT(10)

7555841

Unavailable

26

CUSHION,PLUNGER

5521341

Unavailable

27

PLUNGER,LATCH

5020753

Unavailable

28

BUSH.(10)

7555875

$7.94

29

POST,STEERING,W/H'BAR

1823175

Unavailable

30

RING,RETAIN.EXT.,S.S.(10)

7710426

Unavailable

31

WASHER, FLAT, S.S.(10)

7555840

$3.33

32

SCREW, SET, S.S.(10)

7515115

Unavailable

33

THROTTLE CONTROL ASM. (Incl. 1, 2, 30-32)

2010122

Unavailable
