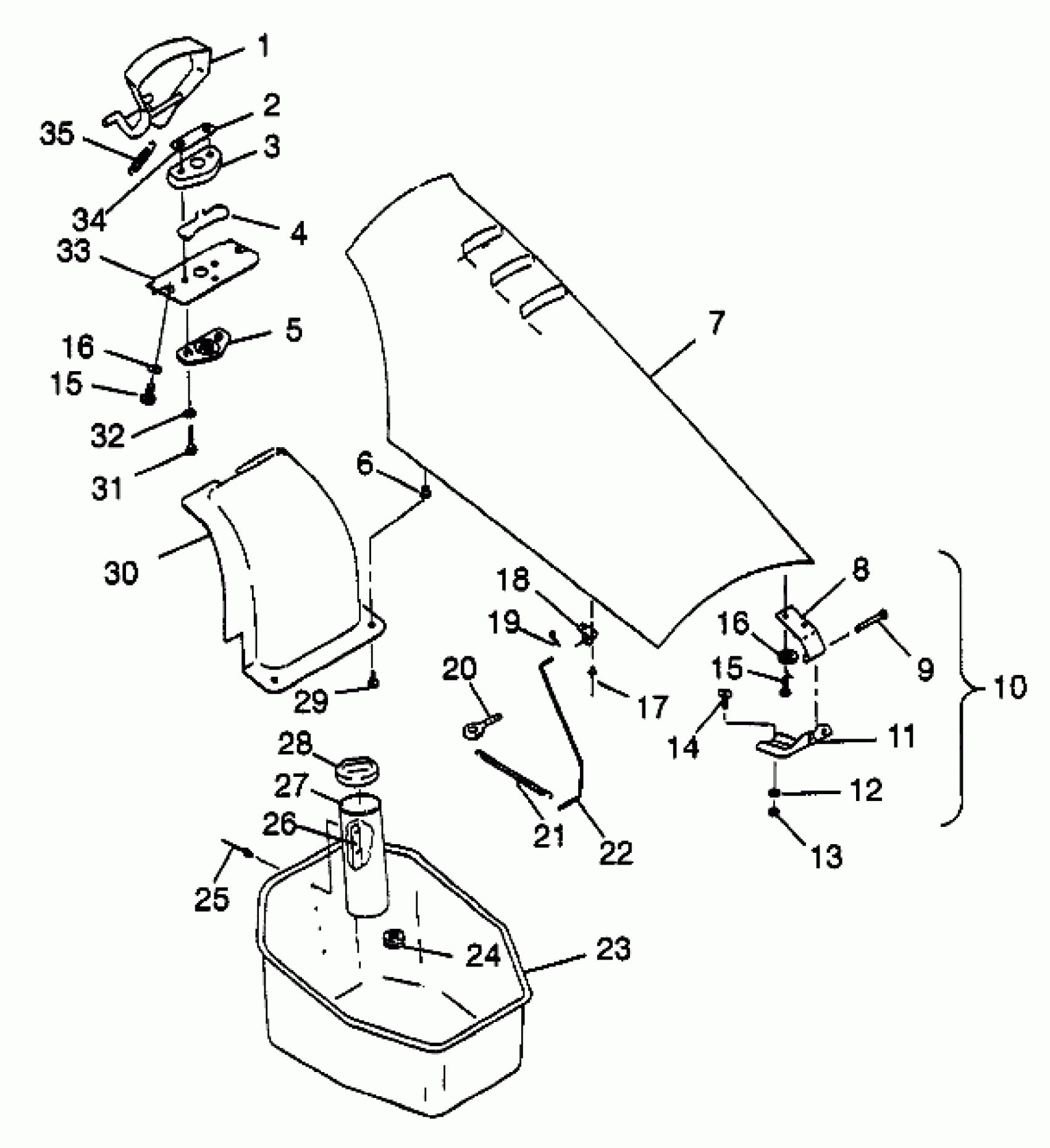

Polaris SLT 700 - B974572 FRONT STORAGE COMPARTMENT SLT 700 B974572 (4941124112A008) Diagram

#

Description
Price

1

HANDLE,STOR.DOOR,BLK.

5431510

Unavailable

2

PLATE,LATCH STOP

1060117

$7.38

3

Plate, Top, Seat Base Latch (See Pg. A13, Ref. 18)

----

Unavailable

4

Spring, Seat Base Latch (See Pg. A13, Ref.17)

----

Unavailable

5

Plate, Bottom, Seat Base Latch (See Pg. A13, Ref. 15)

----

Unavailable

6

NUT-WELL(10)

7541918

Unavailable

7

COMP.DOOR ASM,LSR.BLUE

2631846-217

Unavailable

8

HINGE, UPPER [No Longer Available]

5240278

Unavailable

9

PIN, HINGE Substituted by 2635012

7661629

$14.29

10

HINGE ASM,LID (Incl. 8, 9, 11)

2635014

$15.56

11

HINGE, LOWER [No Longer Available]

5222699

Unavailable

12

WASHER, FLAT, S.S.(10)

7555831

Unavailable

13

NUT, HEX, S.S.(10)

7542335

Unavailable

14

PLATE,SCREW,HINGE

1060111

Unavailable

15

BOLT, S.S.(10)

7515121

$0.59

15

BOLT, S.S.(10)

7515121

$0.59

16

WASHER, LOCK, S.S.(10)

7555838

Unavailable

16

WASHER, LOCK, S.S.(10)

7555838

Unavailable

17

RIVET(50)

7621479

$1.98

18

RETAINER,DOOR SUPPORT

5240340

$2.46

19

PIN, COTTER(10)

7661010

$1.19

20

EYEBOLT, SS

7080651

Unavailable

21

SPRING,DOOR SUPPORT

7042038

Unavailable

22

SUPPORT,DOOR,SLT

5224524

$38.41

23

BUCKET,FR.STORAGE

5432534

Unavailable

24

GROMMET,DRAIN

5411145

$1.19

25

RIVET(50)

7621452

$1.19

26

PLATE,FIRE EXT.SS Substituted by 5244773

5211740

Unavailable

27

CONTAINER,FIRE EXTINGUISHER (Incl. 27, 28)

1060114

$32.70

27

CONTAINER,FIRE EXT. Substituted by 1060114

5431841

$32.70

28

COVER,FIRE EXT. Substituted by 1060114

5431842

$32.70

29

BOLT, SS.(10)

7512045

$4.99

30

BAFFLE, AIR INTAKE

5431648

$23.02

31

BOLT, SS.(10)

7515123

$2.19

32

WASHER, FLAT, S.S.(10)

7555839

Unavailable

33

BRKT,LATCH,COMP.DOOR

5240617

Unavailable

34

NUT,NYLOK,S.S.(10)

7542133

Unavailable

35

SPRING

7041342

$4.13
