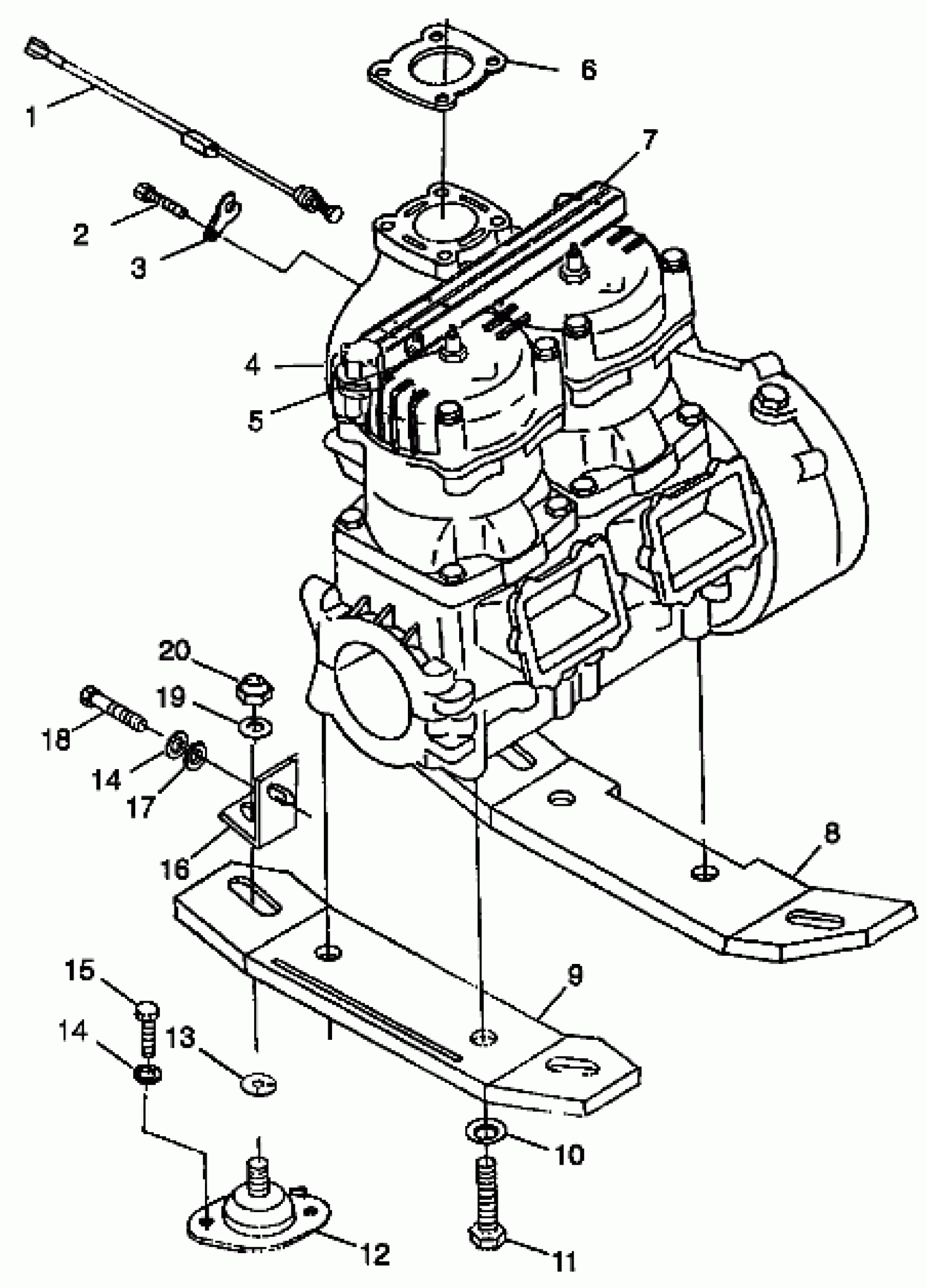

Polaris SLT 700 - B974572 ENGINE MOUNTING SLT 700 B974572 (4941124112B001) Diagram

#

Description
Price

1

SWITCH ASM,TEMP.

4110180

$63.49

2

BOLT,(1)

7516603

$10.32

3

CLIP,RETAIN,TEMP.SW.

5240876

$4.99

4

SHORT BLOCK,TWIN,KIT [No Longer Available] NOTE: The Short Block assemble contains a crankcase assembly, cylinder and cylinder head assembly.

2200681

Unavailable

5

Spark Plug, NGK BPR7ES (See Pg. A30, Ref. 25)

----

Unavailable

6

GASKET,EXH.PIPE

5830051

Unavailable

7

Decal - Warning (See Pg. A30, Ref. 1)

----

Unavailable

8

PLATE,F.MOUNT Substituted by 5631128

5630585

$102.38

9

PLATE,R.MOUNT Substituted by 5631129

5630584

Unavailable

10

WASHER,LOCK,S.S.

7552609

$1.75

11

SCREW, SS.

7517330

Unavailable

12

MT,ENG,ANTI-ROTATION Substituted by 3021103

3110055

$73.81

13

SHIM,ENG.MT.(PWC)

5211727

Unavailable

14

WASHER, LOCK, S.S.(10)

7552610

Unavailable

14

WASHER, LOCK, S.S.(10)

7552610

Unavailable

15

BOLT, S.S.(10)

7515361

$2.19

16

BRKT,R.MUFFLER Substituted by 1060142

5241546

$53.17

17

WASHER, FLAT, S.S.,(10)

7555835

$0.69

18

BOLT, S.S.(10)

7515357

Unavailable

19

WASHER, FLAT, S.S.(10)

7555848

Unavailable

20

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

$3.59
