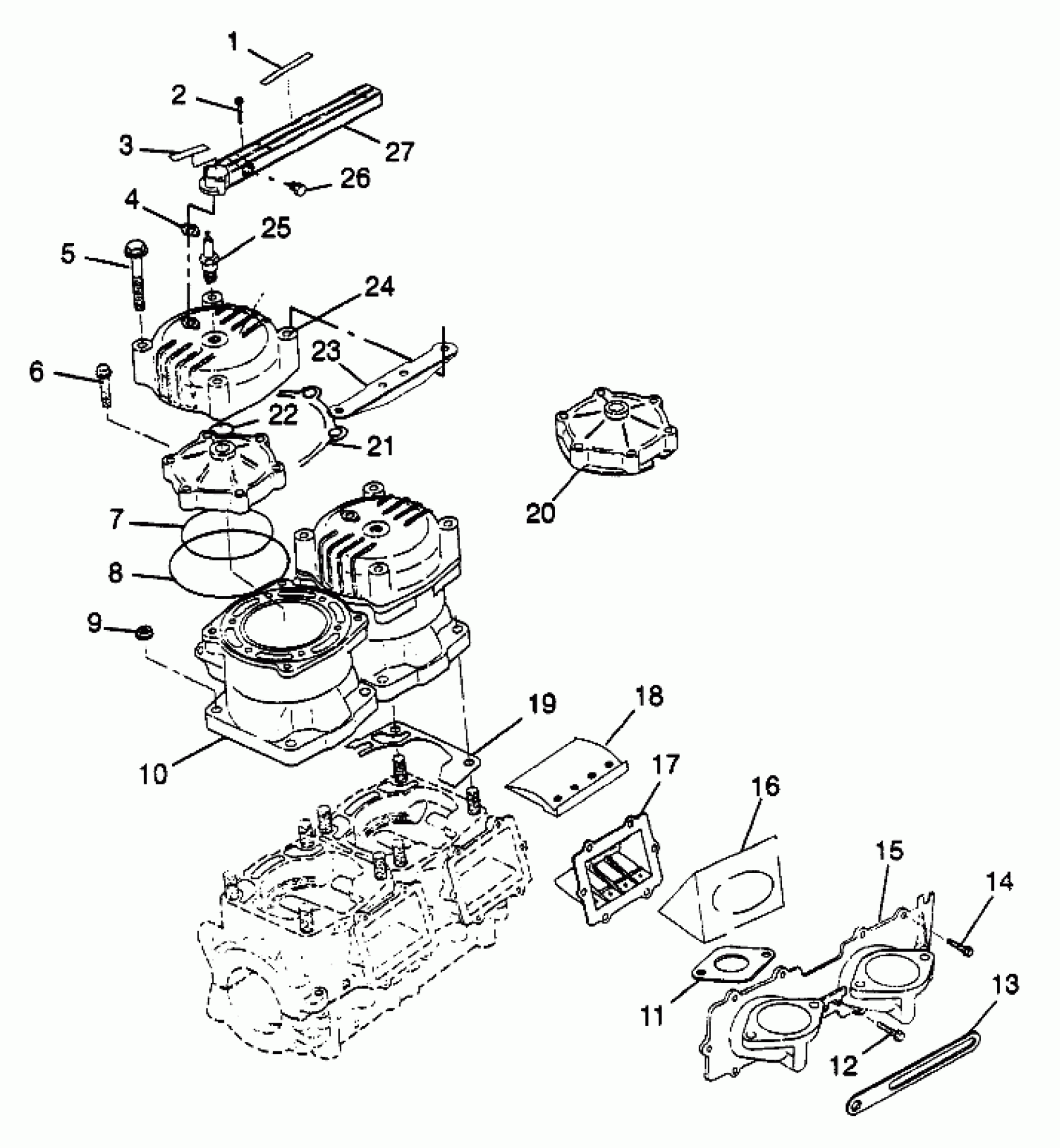

Polaris SLT 700 - B974572 CYLINDER & MANIFOLD SLT 700 B974572 (4941124112B014) Diagram

#

Description
Price

-

KIT,GASKET,TOP END (700 Twin) (Incl. 7, 8, 19, 22)

2200673

Unavailable

-

KIT,GASKET SET,COMP. (700 Twin) (Incl. 7, 8, 19, 22, 4)

2200680

$78.56

1

Decal, Warning

7075383

Unavailable

2

BOLT(10)

7516806

Unavailable

3

DECAL,SPARKPLUG REC.

7077026

$2.94

4

GASKET,WATER MANIF.

5830061

Unavailable

5

BOLT(10)

7516722

$9.52

6

BOLT(10) Substituted by 7517251

7516724

$14.29

7

O-RING

5410932

$20.22

8

O-Ring

5410931

$7.99

9

NUT(10)

7547013

$1.99

10

CYLINDER,BIGBORE,81MM,PWC

5131081

$589.99

11

GASKET,CARB.

5830043

Unavailable

12

BOLT(10)

7516814

$2.38

13

RETAINER,SS.

7080654

$18.32

14

BOLT(10)

7516807

Unavailable

15

MANIFOLD,INTAKE

5630529

$139.68

16

STUFFER,REED BLOCK Substituted by 5433151

5432104

Unavailable

17

REEDVALVE ASM. Substituted by 1201689

1201592

Unavailable

18

STUFFER

5411251

Unavailable

19

GASKET,CYL.BASE

5830123

$8.41

20

HEAD,CYL,81MM DIA

3022025

Unavailable

21

RING,HEAD,81MM-SS

5241944

$63.79

22

O-RING(10)

5410917

$0.79

23

BRKT,HEAD,TWIN,FIRE RED

5241768-093

Unavailable

24

COVER,HEAD,RED,BIG BORE

5630527-093

Unavailable

25

SPARKPLUG, BPR-7ES(10)

3070173

Unavailable

26

PLUG,PIPE(10)

7051527

$6.59

27

MANIFOLD,OUTLET,FIRE RED Substituted by 5630826-093

5630622-093

Unavailable
