CRANKSHAFT & PISTON SLT 700 B974572 (4941124112C003)

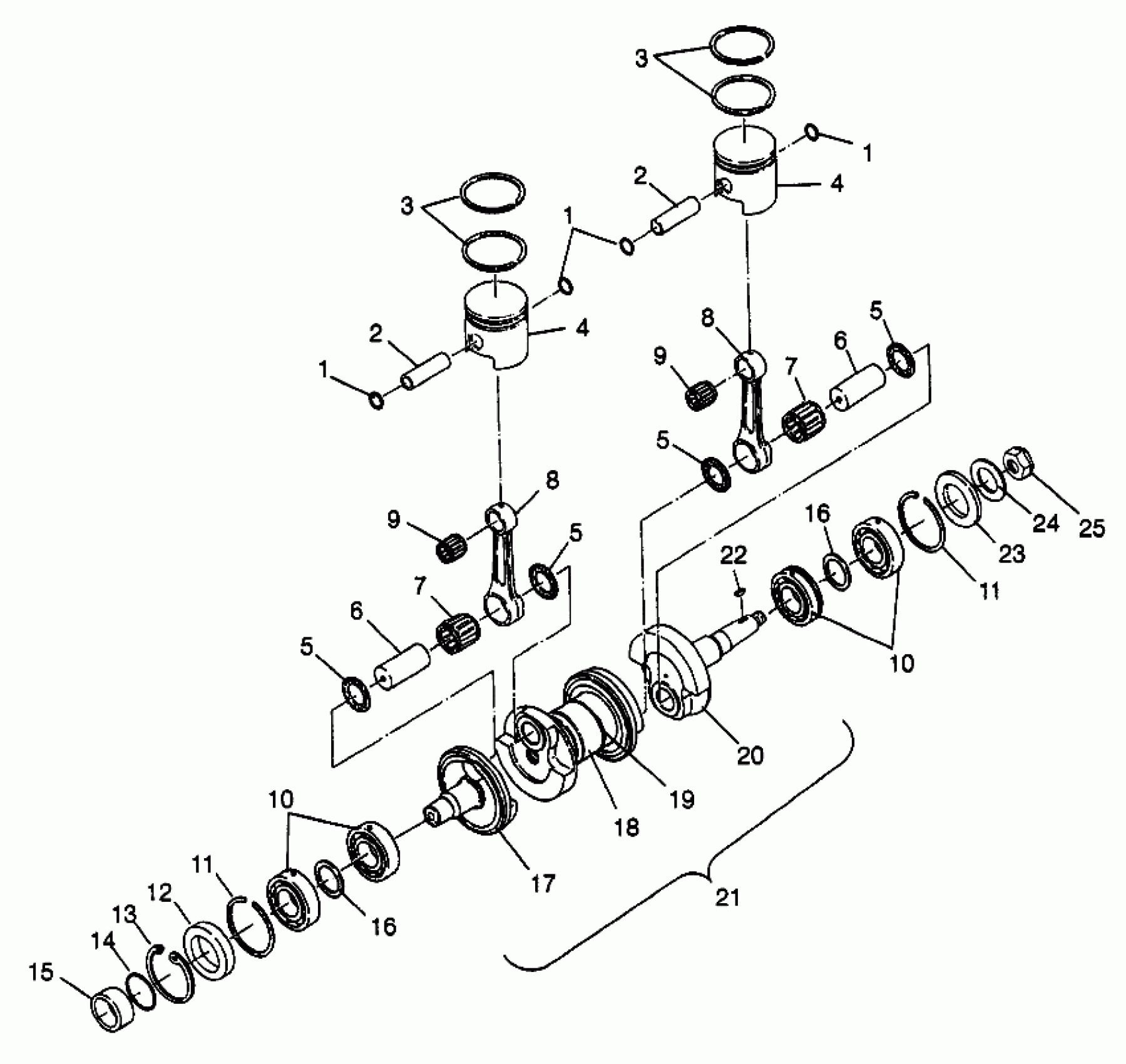

Polaris SLT 700 - B974572 CRANKSHAFT & PISTON SLT 700 B974572 (4941124112C003) Diagram
#
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
2
PIN,PISTON
3022953
Unavailable
2
PIN,PISTON
3022953
Unavailable
3
KIT,PISTONRINGS,STD,81MM. Substituted by 2200902 (2 Rings)
2200671
Unavailable
3
KIT,PISTONRINGS(.50 O/S)81MM. Substituted by 2200904
2200678
Unavailable
3
KIT,PISTONRINGS(.25 O/S)81MM. Substituted by 2200903
2200679
Unavailable
3
KIT,PISTONRINGS,STD,81MM. Substituted by 2200902 (2 Rings)
2200671
Unavailable
3
KIT,PISTONRINGS(.50 O/S)81MM. Substituted by 2200904
2200678
Unavailable
3
KIT,PISTONRINGS(.25 O/S)81MM. Substituted by 2200903
2200679
Unavailable
4
KIT,PISTON ASM,.25 O/S,PWC Substituted by 2200920 (Incl. 1, 2, 3)
2200884
Unavailable
4
KIT,PISTON ASM,.50 O/S,PWC Substituted by 2200919 (Incl. 1, 2, 3)
2200885
Unavailable
4
KIT,PISTON ASM,STD,PWC Substituted by 2200921 (Incl. 1, 2, 3)
2200883
Unavailable
4
KIT,PISTON ASM,.25 O/S,PWC Substituted by 2200920 (Incl. 1, 2, 3)
2200884
Unavailable
4
KIT,PISTON ASM,.50 O/S,PWC Substituted by 2200919 (Incl. 1, 2, 3)
2200885
Unavailable
4
KIT,PISTON ASM,STD,PWC Substituted by 2200921 (Incl. 1, 2, 3)
2200883
Unavailable
5
Washer, Thrust (See Ref. 8)
-------
Unavailable
5
Washer, Thrust (See Ref. 8)
-------
Unavailable
5
Washer, Thrust (See Ref. 8)
-------
Unavailable
5
Washer, Thrust (See Ref. 8)
-------
Unavailable
6
Pin, Crankshaft (See Ref. 8)
-------
Unavailable
6
Pin, Crankshaft (See Ref. 8)
-------
Unavailable
7
Bearing, Connecting Rod (See Ref. 8)
-------
Unavailable
7
Bearing, Connecting Rod (See Ref. 8)
-------
Unavailable
8
KIT,CONN.ROD ASM.(PWC) Substituted by 2201022 (Incl. 5-7)
2200674
Unavailable
8
KIT,CONN.ROD ASM.(PWC) Substituted by 2201022 (Incl. 5-7)
2200674
Unavailable
9
BEARING,CONNECT.ROD
3584001
Unavailable
9
BEARING,CONNECT.ROD
3584001
Unavailable
10
BEARING,DEEP GROOVE Substituted by 3585503
3585501
Unavailable
10
BEARING,DEEP GROOVE Substituted by 3585503
3585501
Unavailable
11
RING,RETAINING,(10)
7710441
Unavailable
11
RING,RETAINING,(10)
7710441
Unavailable
12
SEAL Substituted by 5411524
5410913
Unavailable
13
RING,RETAINING(10)
7710435
Unavailable
14
O RING,(10)
5410613
$1.99
15
COLLAR,CRANKSHAFT
5131195
Unavailable
16
BUSHING(10)
7555905
$3.99
16
BUSHING(10)
7555905
$3.99
17
CRANKWEB,PTO,BIGBORE
5131083
Unavailable
18
CRANKWEB,CTR,BIGBORE
5131084
Unavailable
19
Labyrinth
5131086
Unavailable
20
CRANKWEB,MAG.
5131085
Unavailable
21
CRANKSHAFT ASM,2 CYL. Substituted by 2201243 (Incl. 5-8, 17-20)
1201558
Unavailable
22
KEY,WOODRUFF(10)
7721117
$24.99
23
Seal
3610044
$24.27
24
Washer (See Pg. A35, Ref. 10)
-------
Unavailable
25
Nut, Pump Drive (See Pg. A35, Ref. 11)
-------
Unavailable
