CARBURETOR SLT 700 B974572 (4941124112C001)

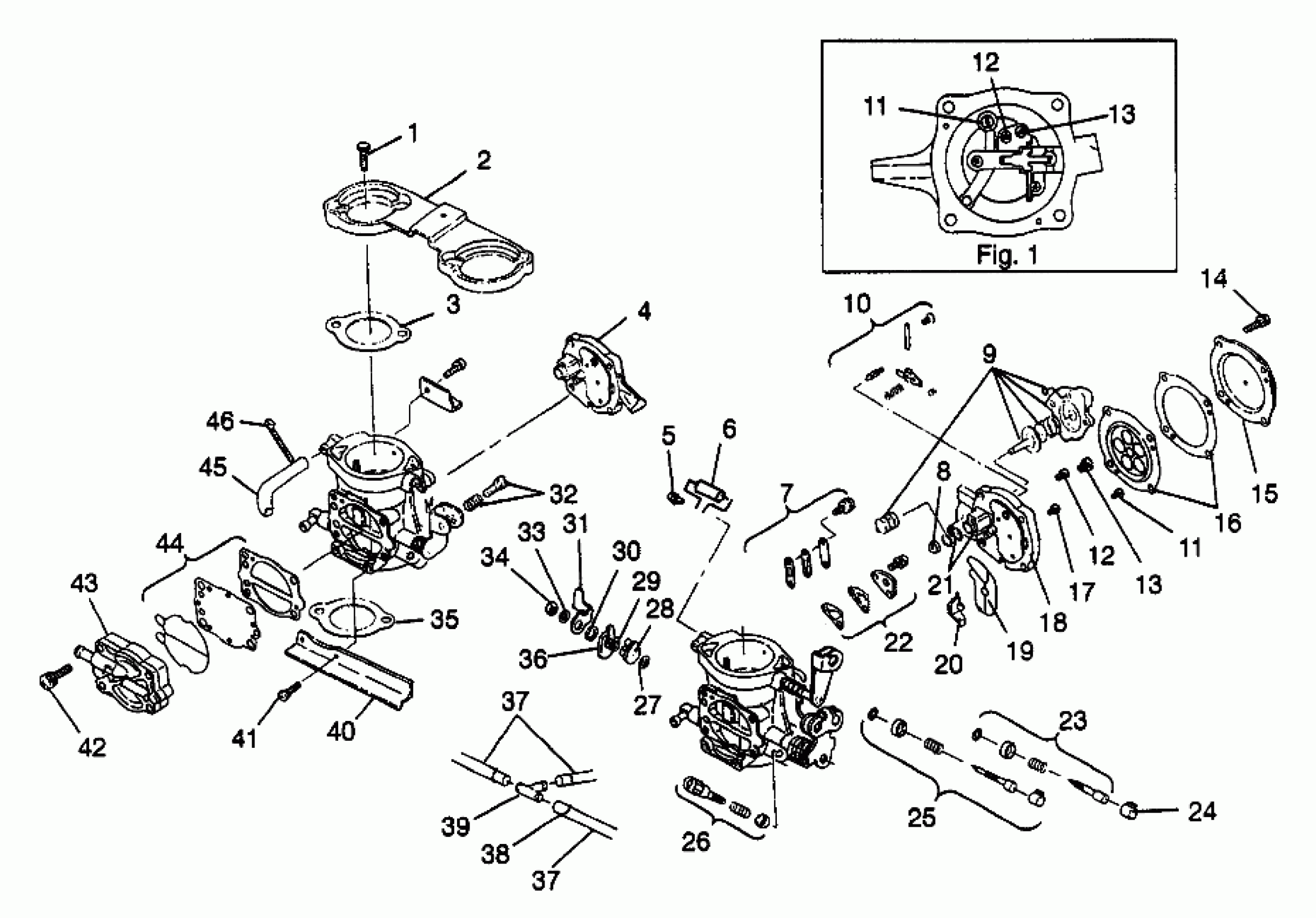

Polaris SLT 700 - B974572 CARBURETOR SLT 700 B974572 (4941124112C001) Diagram
#
-
KIT,CARB.REBUILD,PWC (Incl. 3, 10, 16, 35)
2200910
Unavailable
-
CARB.ASM,2 CYL.
1253134
Unavailable
1
BOLT(10)
7516812
Unavailable
2
BASE,AIRBOX
5630539
Unavailable
3
GASKET,CARB.,UPPER
5830062
Unavailable
4
JET,R.BLOCK COMP (Rear)
3050146
Unavailable
5
JOINT,CONNECTING
3050156
Unavailable
6
TUBE,RUBBER
3050157
Unavailable
7
KIT,CHECKVALVE,MID-RANGE,KHN (1 Per Carb)
2200685
Unavailable
8
SCREEN,FUELSTRAINER
3050144
Unavailable
9
KIT,ACCEL.PUMP
2200732
Unavailable
10
KIT,NDLE VLVE,97DOM,NOT SL 1050 (1 Per Carb)
2200733
Unavailable
11
JET-MAIN,80 KEIHIN (Per Carb) #80
3050101
Unavailable
11
JET-MAIN,80 KEIHIN (Per Carb) #80
3050101
Unavailable
12
JET-PILOT,55 KEIHIN
3050124
Unavailable
12
JET-PILOT,55 KEIHIN
3050124
Unavailable
13
JET-PILOT,70 KEIHIN
3050130
Unavailable
13
JET-PILOT,70 KEIHIN
3050130
Unavailable
14
SCREW,JET BLOCK COVER
3050135
Unavailable
15
COVER,JET BLOCK
3050139
Unavailable
16
KIT,DIAPHRAGM-JET BLOCK (Per Carb)
2200730
Unavailable
17
Screw, Jet Block
3050137
Unavailable
18
JET,FR.BLOCK COMP. (Front)
3050145
Unavailable
19
O-Ring, Jet Block
3050147
Unavailable
20
Collar
3050138
Unavailable
21
O-RING,(VALVE SEAT)
3050148
Unavailable
22
KIT,CHECKVALVE,MAIN(KEIHIN) (1 Per Carb)
2200688
Unavailable
23
KIT,IDLESCREW,(KEIHIN) (1 Per Carb)
2200689
Unavailable
24
Cap, Limiter
3050140
Unavailable
25
KIT,MAINMIX.SCREW(KEIHIN) (1 Per Carb)
2200690
Unavailable
26
KIT,IDLESTOP SCREW
2200731
Unavailable
27
E-Clip
3050158
Unavailable
28
COLLAR
3050149
Unavailable
29
SPRING, TORSION
3050150
Unavailable
30
WASHER
3050152
Unavailable
31
LEVER,SYNCHRONIZING
3050153
Unavailable
32
KIT,SYNCH.SCREW
2200734
Unavailable
33
Washer, Lock
3050154
Unavailable
34
NUT,THROTTLE SHAFT
3050155
Unavailable
35
GASKET,CARB.
5830043
Unavailable
36
CAM, ACCEL.PUMP Substituted by 2200910
3050151
Unavailable
37
HOSE,FUEL,(ACCEL.PUMP)
3050142
Unavailable
37
HOSE,FUEL,(ACCEL.PUMP)
3050142
Unavailable
38
BALLJOINT,HI-ANGLE Substituted by 7080927
7080673
$76.89
39
FITTING, T
3050141
$9.59
40
PLATE,CONNECTING
3050160
Unavailable
41
SCREW,CONNECT.PLATE
3050159
Unavailable
42
SCREW, FUELPUMP
3050136
Unavailable
43
KIT,FUELPUMP BODY(KEIHIN)
2200687
Unavailable
44
KIT,GASKET(FUELPUMP)
2200686
Unavailable
45
Hose, Fuel
3050143
Unavailable
46
CLAMP, HOSE, S.S.(10)
7080476
$6.39
