STEERING SLT 700 B964166 and Intl. SLT 700 I964166 (4933923392A012)

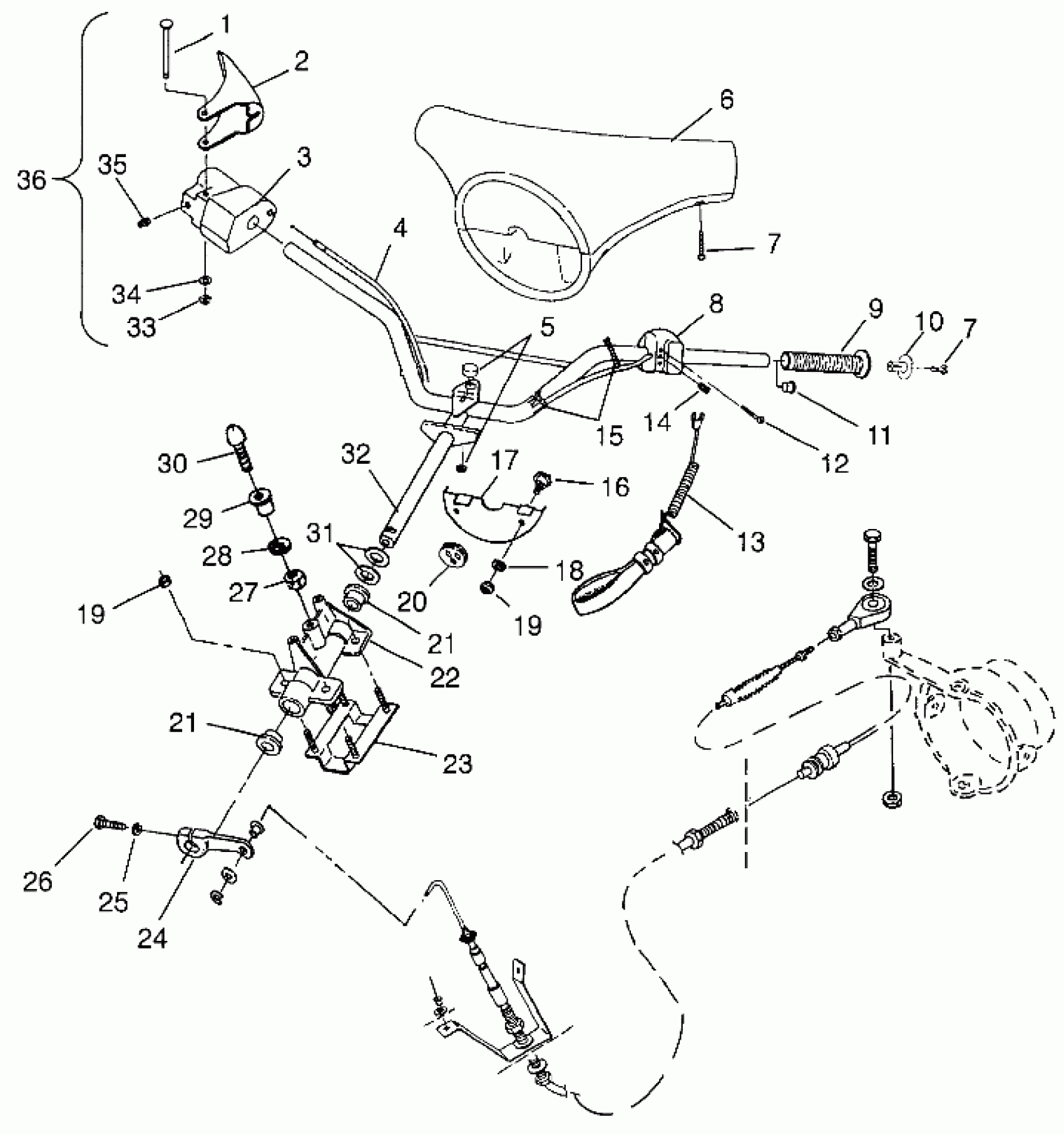

Polaris SLT 700 - B964166 STEERING SLT 700 B964166 and Intl. SLT 700 I964166 (4933923392A012) Diagram
#
1
Pin, Retaining
7661628
Unavailable
2
LEVER,THROTTLE CONTROL
5431397
Unavailable
3
BLOCK,THROTTLE CONTROL
5431396
Unavailable
4
CABLE,THROTTLE
7080577
Unavailable
5
ALARM,HI-TEMP/LO-OIL
4040059
Unavailable
6
PAD,H'BAR,CARIB.BLUE Substituted by 5432791-196
5431629-196
Unavailable
7
SCREW, SS.(10)
7512047
Unavailable
7
SCREW, SS.(10)
7512047
Unavailable
8
SW.,STOP,W/TETHER
4110154
Unavailable
9
GRIP,H'BAR,PURP.VELVET Substituted by 5410638-214
5410638-194
Unavailable
10
PLUG,HANDGRIP,BLK.
7010082-070
Unavailable
11
CAPLUG(10)
7080467
Unavailable
12
SCREW(10)
7516602
Unavailable
13
Tether (See Pg. A5, Ref. 8)
-------
Unavailable
14
SCREW, S.S.(10)
7516601
Unavailable
15
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
16
BOLT,SHOULDER(10)
7515387
Unavailable
17
PLATE,GROMMET
5240334
Unavailable
18
WASHER, FLAT, S.S.(10)
7555831
Unavailable
19
NUT, HEX, S.S.(10)
7542335
Unavailable
19
NUT, HEX, S.S.(10)
7542335
Unavailable
20
GROMMET,CABLE,3-HOLE
5411028
Unavailable
21
BUSHING,STRG.SUPPORT
5431382
Unavailable
21
BUSHING,STRG.SUPPORT
5431382
Unavailable
22
SUPPORT,STRG.HUB,BLK. Substituted by 5131509
5130974-067
Unavailable
23
PLATE,BOLT
1060112
Unavailable
24
ARM, STRG.
5131127
Unavailable
25
WASHER, LOCK, S.S.(10)
7552610
Unavailable
26
BOLT, S.S.(10)
7515375
Unavailable
27
NUT, HEX, S.S.,(10)
7542454
Unavailable
28
WASHER, FLAT(10)
7555841
Unavailable
29
CUSHION,PLUNGER
5521341
Unavailable
30
PLUNGER,LATCH
5020753
Unavailable
31
BUSH.(10)
7555875
Unavailable
32
POST,STEERING,W/H'BAR
1823175
Unavailable
33
RING,RETAIN.EXT.,S.S.(10)
7710426
Unavailable
34
WASHER, FLAT, S.S.(10)
7555840
$3.35
35
SCREW, SET, S.S.(10)
7515115
Unavailable
36
THROTTLE CONTROL ASM. (Incl. 1-3, 33-35)
2010122
Unavailable
