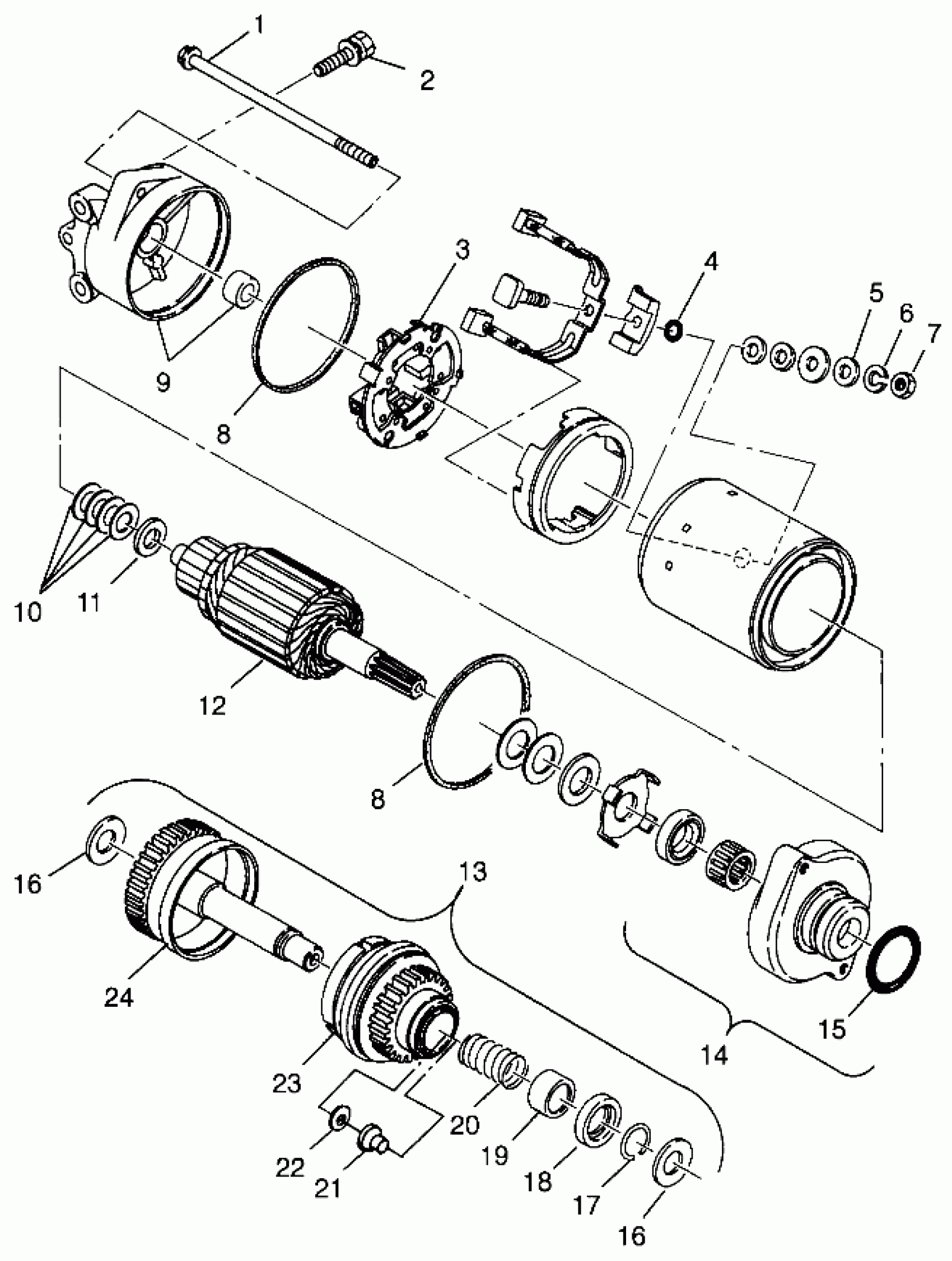

Polaris SLT 700 - B964166 STARTING MOTOR SLT 700 B964166 and Intl. SLT 700 I964166 (4933923392C006) Diagram

#

Description

Price

-

STARTER

4060118

Unavailable

-

SHAFT COMPL.

3240121

Unavailable

1

Bolt, Through

3240113

Unavailable

2

BRUSH, COMPL. (Incl. 3-7)

3240115

Unavailable

2

BOLT, FLANGE

3240062

Unavailable

3

Spring, Brush

3240111

Unavailable

4

O-RING

3084408

Unavailable

5

WASHER(10)

3240119

Unavailable

6

WASHER, SPRING(10)

3240117

Unavailable

7

NUT(10)

3240116

Unavailable

8

RING, RUBBER

3084405

Unavailable

8

RING, RUBBER

3084405

Unavailable

9

BRACKET ASM,REAR

3240207

Unavailable

10

WASHER, THRUST(10)

3240118

Unavailable

11

Washer, Thrust

3240112

Unavailable

12

ARMATURE ASM.

3240205

Unavailable

13

BENDIX

4060119

Unavailable

14

BRACKET ASM,FRONT

3240206

Unavailable

15

O-Ring

3240114

$5.59

16

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

16

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

17

SNAP RING

3240126

Unavailable

18

Stopper

3240125

Unavailable

19

Cover

3240123

Unavailable

20

Spring

7041457

Unavailable

21

BUSHING,PLASTIC

3574214

Unavailable

22

WASHER(10)

7555908

$3.17

23

GEAR ASM. Substituted by 3240120

3240122

Unavailable

24

GEAR ASM. Substituted by 4060119 (Incl. 16-23)

3240120

Unavailable
