Description

Price

1

CAP,REV.LEVER,CARIB.BLUE

5431696-196

Unavailable

2

SCREW, S.S.(10)

7515141

Unavailable

3

WASHER, FLAT, S.S.(10)

7555839

Unavailable

4

LEVER,REV,CAR.BLUE

5431979-196

Unavailable

5

LOCK,REV.LEVER

5431525

Unavailable

6

SPRING,REVERSE LOCK

7041341

Unavailable

7

SCREW(10)

7512065

Unavailable

8

RIVET(50)

7621480

Unavailable

9

RING,RETAINING(10)

7710430

Unavailable

10

GASKET, REV.BRKT.

5810998

Unavailable

11

BRKT,REV.LEVER

5431615

Unavailable

12

O-RING

5410814

Unavailable

13

SPRING,DETENT,REV.

7041313

Unavailable

14

ARM,REVERSE

5431980

Unavailable

15

PIN, COTTER(10)

7661010

$1.49

16

SCREW(10)

7512049

Unavailable

17

PLATE,CABLE

5240257

Unavailable

18

CABLE,REVERSE,SLT

7080508

Unavailable

19

NUT (10)

7542528

Unavailable

19

NUT (10)

7542528

Unavailable

20

Washer

1860103

Unavailable

21

COVER, STEERING

1860109

Unavailable

22

NUT, HEX, S.S.(10)

7541931

$4.79

23

ACTUATOR,REV.GATE

5240139

Unavailable

24

WASHER, LOCK,S.S.(10)

7571625

Unavailable

25

SEAL,ROD,STRG.

1860108

Unavailable

26

RIVET

7621478

Unavailable

27

SHIELD,REV.ACTUATOR

5431517

Unavailable

28

RING,RETAINING Substituted by 7080618

7710431

Unavailable

29

WASHER, FLAT, S.S.(10)

7555837

Unavailable

30

JOINT, ACTUATOR

5431632

Unavailable

31

SCREW, S.S.(10)

7512063

Unavailable

32

BUSHING,ACTUATOR,(10)

5020686

Unavailable

33

RING-E,RET.(10)

7710427

Unavailable

34

WASHER,FLAT,S.S.(10)

7555874

$2.39

34

WASHER,FLAT,S.S.(10)

7555874

$2.39

35

BOLT, S.S.(10)

7515361

Unavailable

36

BUSHING,ACTUATOR,SHORT

5020740

Unavailable

37

GATE,REVERSE,BLK.

5431614

Unavailable

38

BOLT, S.S.(10)

7515368

Unavailable

39

Collar

5020683

Unavailable

40

SPACER,REVERSE GATE

5431506

Unavailable

41

NOZZLE,STRG,SLT (See Pg. A17 Ref.4)

5130999

Unavailable

42

BOLT, S.S.(10)

7515366

Unavailable

43

COLLAR (See Pg. A17 Ref. 2)

5130938

Unavailable

44

BRG,STRG.NOZZLE,(10) (See pg. A17 Ref. 3)

5431518

Unavailable

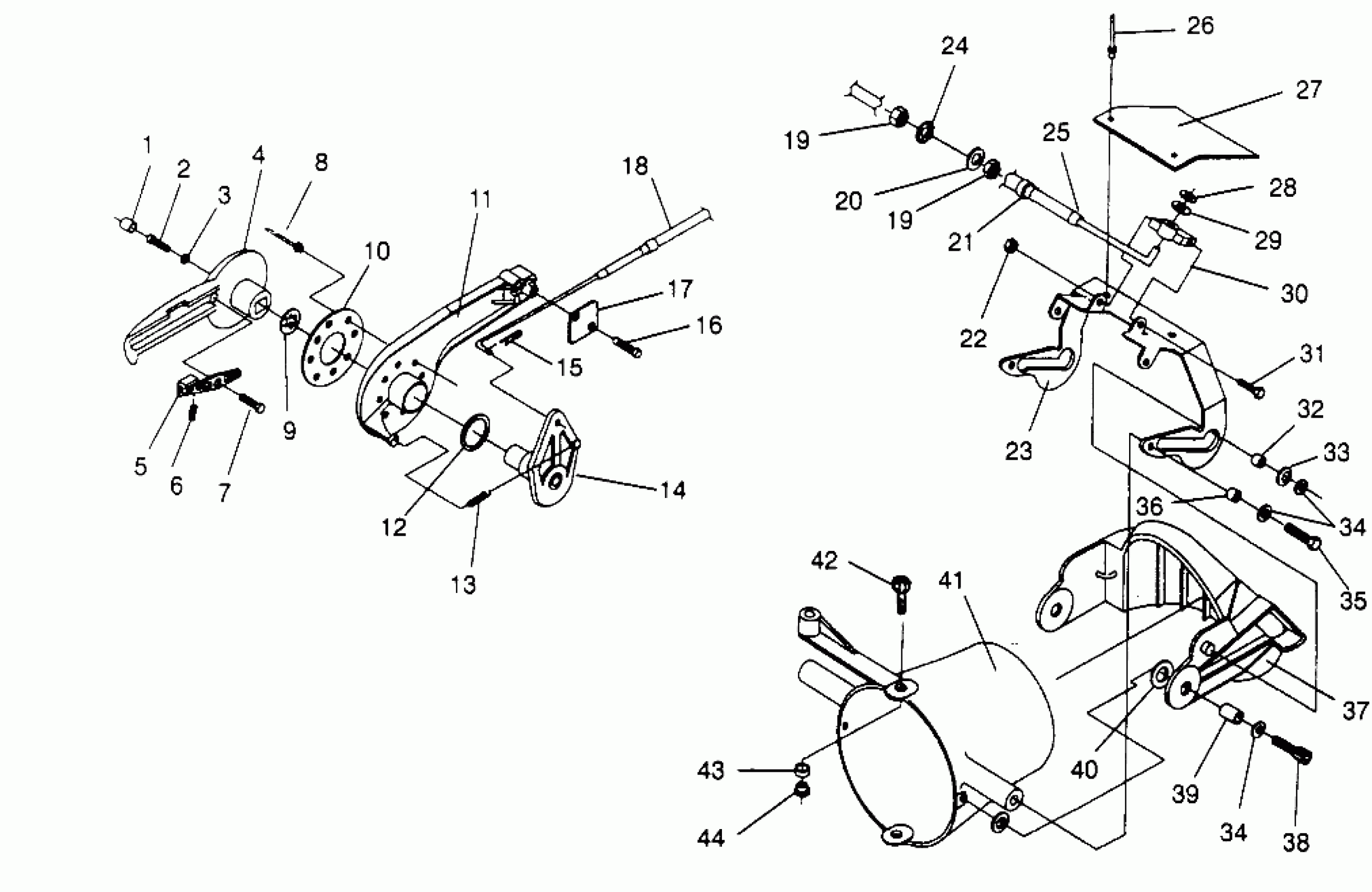

Polaris SLT 700 - B964166 REVERSE SLT 700 B964166 and Intl. SLT 700 I964166 (4933923392B011) Diagram

CAP,REV.LEVER,CARIB.BLUE

SCREW, S.S.(10)

WASHER, FLAT, S.S.(10)

LEVER,REV,CAR.BLUE

LOCK,REV.LEVER

SPRING,REVERSE LOCK

SCREW(10)

RIVET(50)

RING,RETAINING(10)

GASKET, REV.BRKT.

BRKT,REV.LEVER

O-RING

SPRING,DETENT,REV.

ARM,REVERSE

PIN, COTTER(10)

SCREW(10)

PLATE,CABLE

CABLE,REVERSE,SLT

NUT (10)

NUT (10)

Washer

COVER, STEERING

NUT, HEX, S.S.(10)

ACTUATOR,REV.GATE

WASHER, LOCK,S.S.(10)

SEAL,ROD,STRG.

RIVET

SHIELD,REV.ACTUATOR

RING,RETAINING Substituted by 7080618

WASHER, FLAT, S.S.(10)

JOINT, ACTUATOR

SCREW, S.S.(10)

BUSHING,ACTUATOR,(10)

RING-E,RET.(10)

WASHER,FLAT,S.S.(10)

WASHER,FLAT,S.S.(10)

BOLT, S.S.(10)

BUSHING,ACTUATOR,SHORT

GATE,REVERSE,BLK.

BOLT, S.S.(10)

Collar

SPACER,REVERSE GATE

NOZZLE,STRG,SLT (See Pg. A17 Ref.4)

BOLT, S.S.(10)

COLLAR (See Pg. A17 Ref. 2)

BRG,STRG.NOZZLE,(10) (See pg. A17 Ref. 3)
