PROPULSION SLT 700 B964166 and Intl. SLT 700 I964166 (4933923392B003)

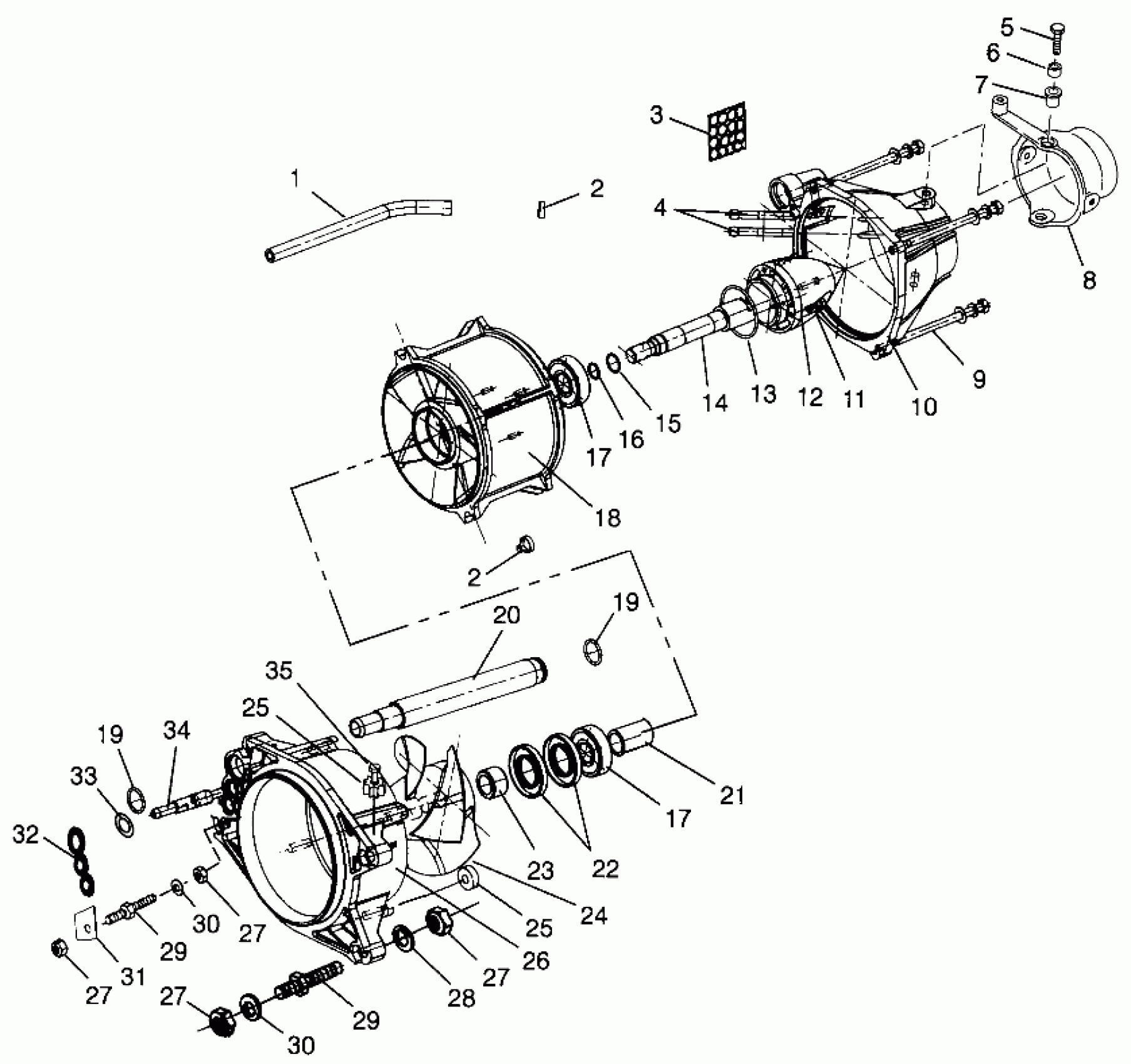

Polaris SLT 700 - B964166 PROPULSION SLT 700 B964166 and Intl. SLT 700 I964166 (4933923392B003) Diagram
#
1
HOSE,WATER Substituted by 8450054-100
8450054-23
Unavailable
2
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
2
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
3
SCREEN,ENG.INLET
5431523
Unavailable
4
TUBE,SIPHON,BILGE
5010293
Unavailable
5
BOLT, S.S.(10)
7515366
Unavailable
6
Collar
5130938
Unavailable
7
BRG,STRG.NOZZLE,(10)
5431518
Unavailable
8
NOZZLE,STRG,SLT
5130999
Unavailable
9
BOLT
7515377
Unavailable
10
NOZZLE ASM,1 TUBE,STRAIGHT
1350022
Unavailable
11
SCREW(10)
7512064
Unavailable
12
Cone, Pump
5431519
Unavailable
13
O-RING(10)
5410819
Unavailable
14
SHAFT, STUB Substituted by 5132674
5020697
Unavailable
15
O-RING(10)
5410818
Unavailable
16
O-RING,(10)
5410817
Unavailable
17
Bearing
3514008
Unavailable
17
Bearing
3514008
Unavailable
18
STATOR,PUMP (Mach.)
5130983
Unavailable
19
O RING,(10)
5410735
Unavailable
19
O RING,(10)
5410735
Unavailable
20
PIPE,WATER,ENGINE
5431655
Unavailable
21
Spacer
5010294
Unavailable
22
SEAL,BRG,STATOR
3610043
Unavailable
23
Spacer, Impeller
5010295
Unavailable
24
IMPELLER,94 SLT Substituted by 5131079
5131035
Unavailable
25
ANODE-ZINC Substituted by 2200745
5630598
Unavailable
25
ANODE-ZINC Substituted by 2200745
5630598
Unavailable
26
HSG,PUMP,(MACH) Substituted by 2873081 (Mach.)
5131310
Unavailable
27
NUT,HEX,S.S.(10)
7542455
Unavailable
27
NUT,HEX,S.S.(10)
7542455
Unavailable
27
NUT,HEX,S.S.(10)
7542455
Unavailable
27
NUT,HEX,S.S.(10)
7542455
Unavailable
28
Washer
7555966
$2.63
29
STUD,MTG.PUMP
5020880
Unavailable
29
STUD,MTG.PUMP
5020880
Unavailable
30
WASHER, FLAT(10)
7555841
Unavailable
30
WASHER, FLAT(10)
7555841
Unavailable
31
BRKT,STRG.CABLE
5241741
Unavailable
32
SEAL,WATER PIPE
5411107
Unavailable
33
SEAL,SIPHON TUBE
5411016
Unavailable
34
PIPE,WATER BILGE (Flange)
5020835
Unavailable
35
SCREW(10)
7522019
Unavailable
