HULL and BODY SLT 700 B964166 and Intl. SLT 700 I964166 (4933923392A006)

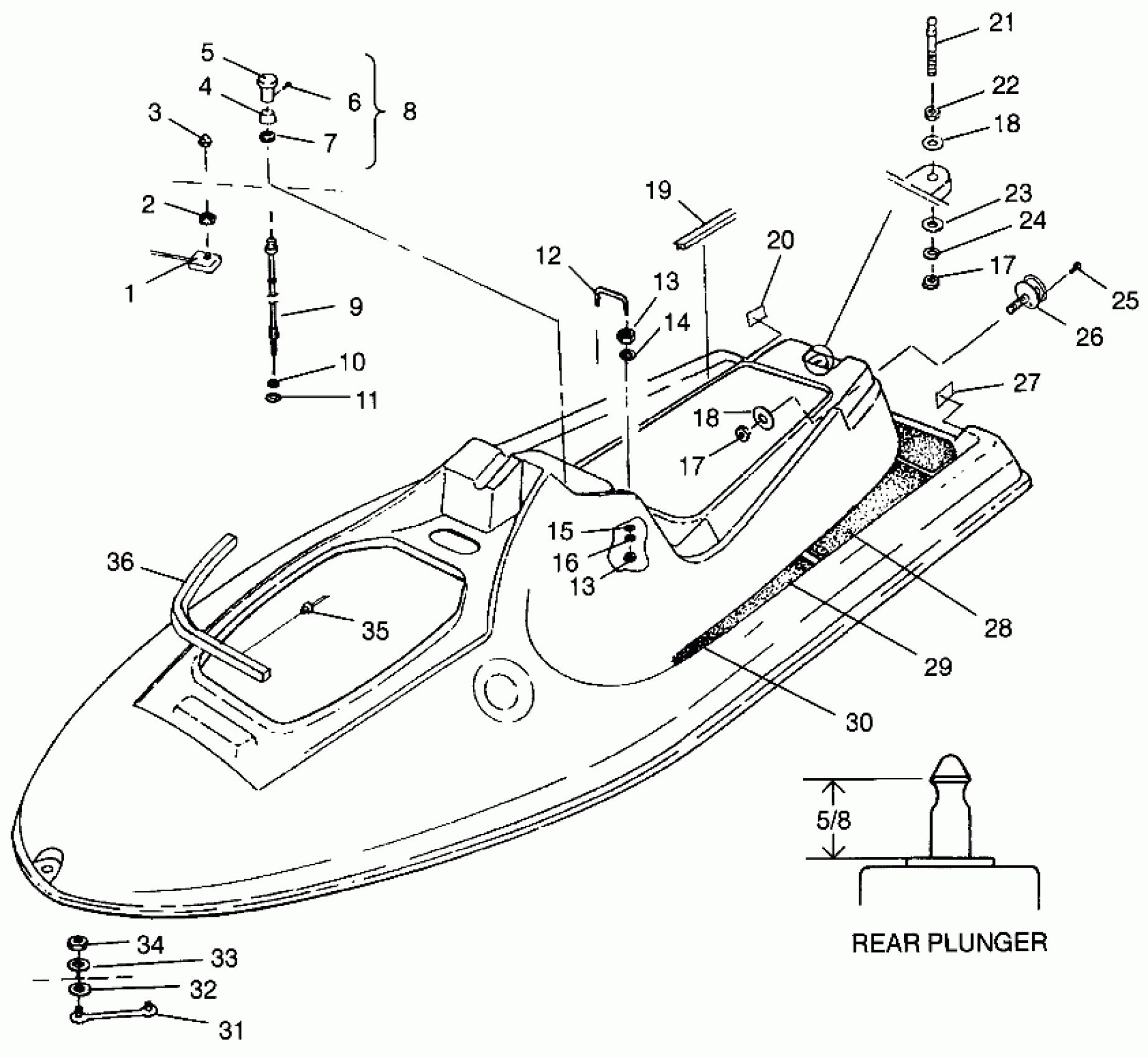

Polaris SLT 700 - B964166 HULL and BODY SLT 700 B964166 and Intl. SLT 700 I964166 (4933923392A006) Diagram
#
1
SWITCH,START.
4110155
Unavailable
2
NUT,BRASS,(10)
7544501
Unavailable
3
NUT,WATERPROOF,STARTER SWITCH
7080513
Unavailable
4
COVER
2080003
Unavailable
5
KNOB,CHOKE
2080004
Unavailable
6
Screw
2080005
Unavailable
7
NUT
2080002
Unavailable
8
KIT, CHOKE, (PWC) (Incl. 5, 4, 6, 7)
2200428
Unavailable
9
CABLE,CHOKE
7080578
Unavailable
10
NUT
2010125
Unavailable
11
WASHER
2010126
Unavailable
12
U-BOLT,SEAT RETAINER
5224750
Unavailable
13
NUT
7542334
$1.49
13
NUT
7542334
$1.49
14
WASHER,RUBBER
7555950
Unavailable
15
WASHER, FLAT, S.S.,(10)
7555835
Unavailable
16
WASHER, LOCK, S.S.(10)
7552610
Unavailable
17
NUT,HEX,S.S.(10)
7542455
Unavailable
17
NUT,HEX,S.S.(10)
7542455
Unavailable
18
WASHER, FLAT(10)
7555845
Unavailable
18
WASHER, FLAT(10)
7555845
Unavailable
19
SEAL,SEAT
5521318
Unavailable
20
PAD,RH,HEEL
5830034
Unavailable
21
PLUNGER,LATCH
5020753
Unavailable
22
NUT, HEX, S.S.,(10)
7542454
Unavailable
23
WASHER, FLAT(10)
7555846
$5.59
24
WASHER, LOCK, S.S.(10)
7552607
Unavailable
25
SCREW(10)
7515388
Unavailable
26
HOOK,SKI-TOW
7061002
Unavailable
27
PAD,LH,HEEL
5830033
Unavailable
28
PAD,LH,CTR.FOOTWELL,P.VELVET Substituted by 2871680-01
5810867-194
Unavailable
29
PAD,FOOTWELL,LH,F.CTR,PUR.VEL Substituted by 5811290-194
5811289-194
Unavailable
30
PAD,FOOTWELL,LH,FRT,PUR.VEL
5811287-194
Unavailable
31
STRAP, BOW
2670150
Unavailable
32
WASHER,RUBBER(10)
7555870
Unavailable
33
WASHER, FLAT, S.S.(10)
7555839
Unavailable
34
NUT,NYLOK,S.S.(10)
7542133
Unavailable
35
RIVET
7621231
Unavailable
36
SEAL,STOR.COMPART.
5521319
Unavailable
