FRONT STORAGE COMPARTMENT SLT 700 B964166 and Intl. SLT 700 I964166 (4933923392A008)

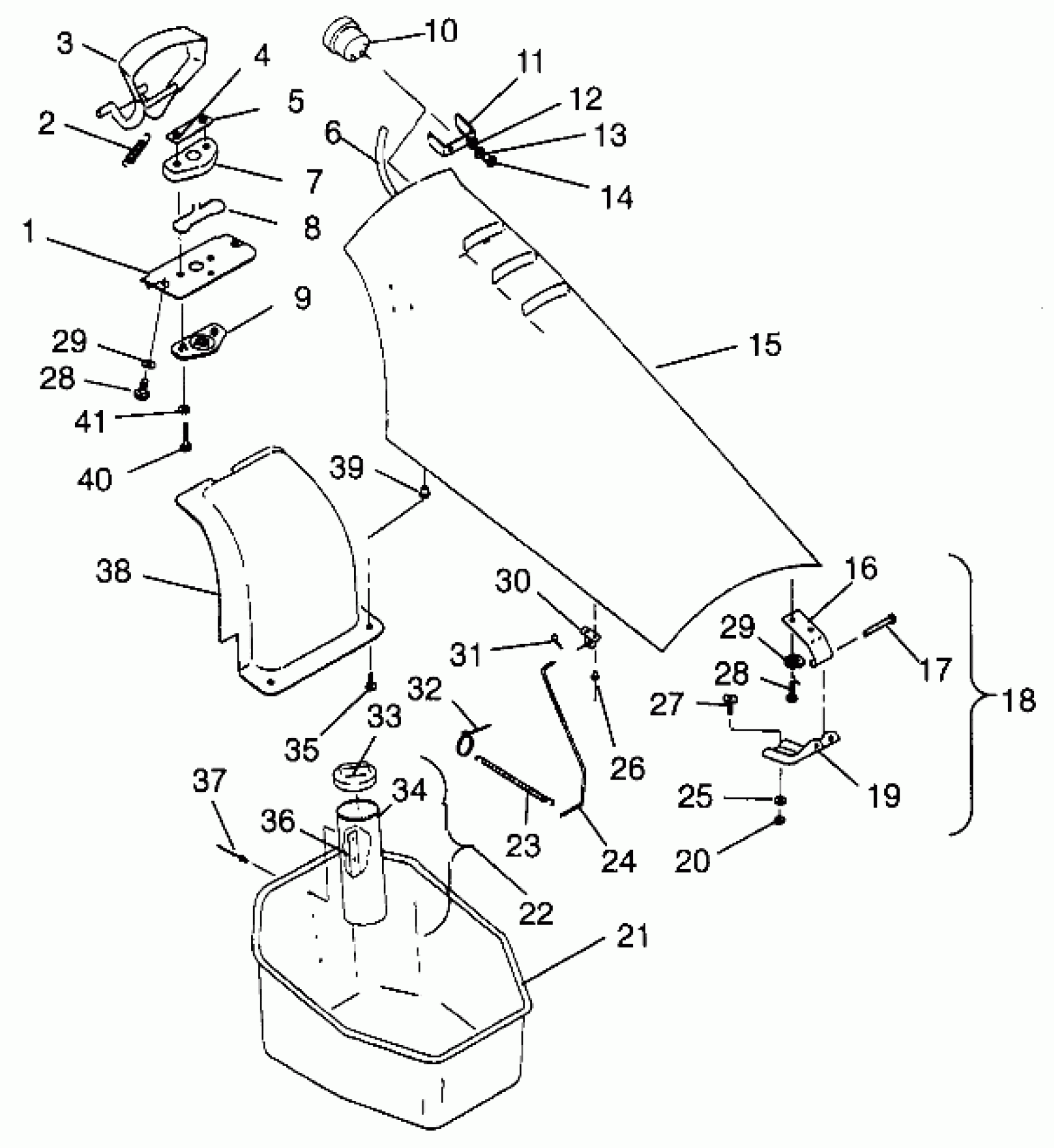

Polaris SLT 700 - B964166 FRONT STORAGE COMPARTMENT SLT 700 B964166 and Intl. SLT 700 I964166 (4933923392A008) Diagram
#
1
BRKT,LATCH,COMP.DOOR
5240617
Unavailable
2
SPRING
7041342
Unavailable
3
HANDLE,STOR.DOOR,BLK.
5431510
Unavailable
4
NUT,NYLOK,S.S.(10)
7542133
Unavailable
5
PLATE,LATCH STOP
1060117
Unavailable
6
FUEL LINE,(427 CM.)
8450058-427
Unavailable
7
Plate, Top, Seat Base Latch (See Pg. A11, Ref. 16)
-------
Unavailable
8
Spring, Seat Base Latch (See Pg. A11, Ref.15)
-------
Unavailable
9
Plate, Bottom, Seat Base Latch (See Pg. A11, Ref. 13)
-------
Unavailable
10
GAUGE,FUEL,SLT
3280223
Unavailable
11
BRKT,MTG,FUEL GAUGE
5241278
Unavailable
12
WASHER, LOCK,(S.S.)(10)
7555868
Unavailable
13
WASHER, FLAT(10)
7555869
Unavailable
14
NUT, BRASS(10)
7541933
$4.99
15
COMP.DOOR ASM,PUR,VEL.
2631742-194
Unavailable
16
HINGE, UPPER [No Longer Available]
5240278
Unavailable
17
PIN, HINGE Substituted by 2635012
7661629
Unavailable
18
HINGE ASM,LID (Incl. 16, 17, 19)
2635014
Unavailable
19
HINGE, LOWER [No Longer Available]
5222699
Unavailable
20
NUT, HEX, S.S.(10)
7542335
Unavailable
21
BUCKET,FR.STORAGE Substituted by 5432281
5431603
Unavailable
22
CONTAINER,FIRE EXTINGUISHER (Incl. 34, 33)
1060114
Unavailable
23
SPRING,DOOR SUPPORT
7042038
Unavailable
24
SUPPORT,DOOR,SLT
5224524
Unavailable
25
WASHER, FLAT, S.S.(10)
7555831
Unavailable
26
RIVET(50)
7621479
$1.99
27
PLATE,SCREW,HINGE
1060111
Unavailable
28
BOLT, S.S.(10)
7515121
Unavailable
28
BOLT, S.S.(10)
7515121
Unavailable
29
WASHER, LOCK, S.S.(10)
7555838
Unavailable
29
WASHER, LOCK, S.S.(10)
7555838
Unavailable
30
RETAINER,DOOR SUPPORT
5240340
Unavailable
31
PIN, COTTER(10)
7661010
$1.49
32
STRAP, PANDUIT,4 IN.(10)
7080483
Unavailable
33
COVER,FIRE EXT. Substituted by 1060114
5431842
Unavailable
34
CONTAINER,FIRE EXT. Substituted by 1060114
5431841
Unavailable
35
BOLT, SS.(10)
7512045
$4.99
36
PLATE,FIRE EXT.SS Substituted by 5244773
5211740
Unavailable
37
RIVET
7621478
Unavailable
38
BAFFLE, AIR INTAKE
5431648
Unavailable
39
NUT-WELL(10)
7541918
Unavailable
40
BOLT, SS.(10)
7515123
Unavailable
41
WASHER, FLAT, S.S.(10)
7555839
Unavailable
