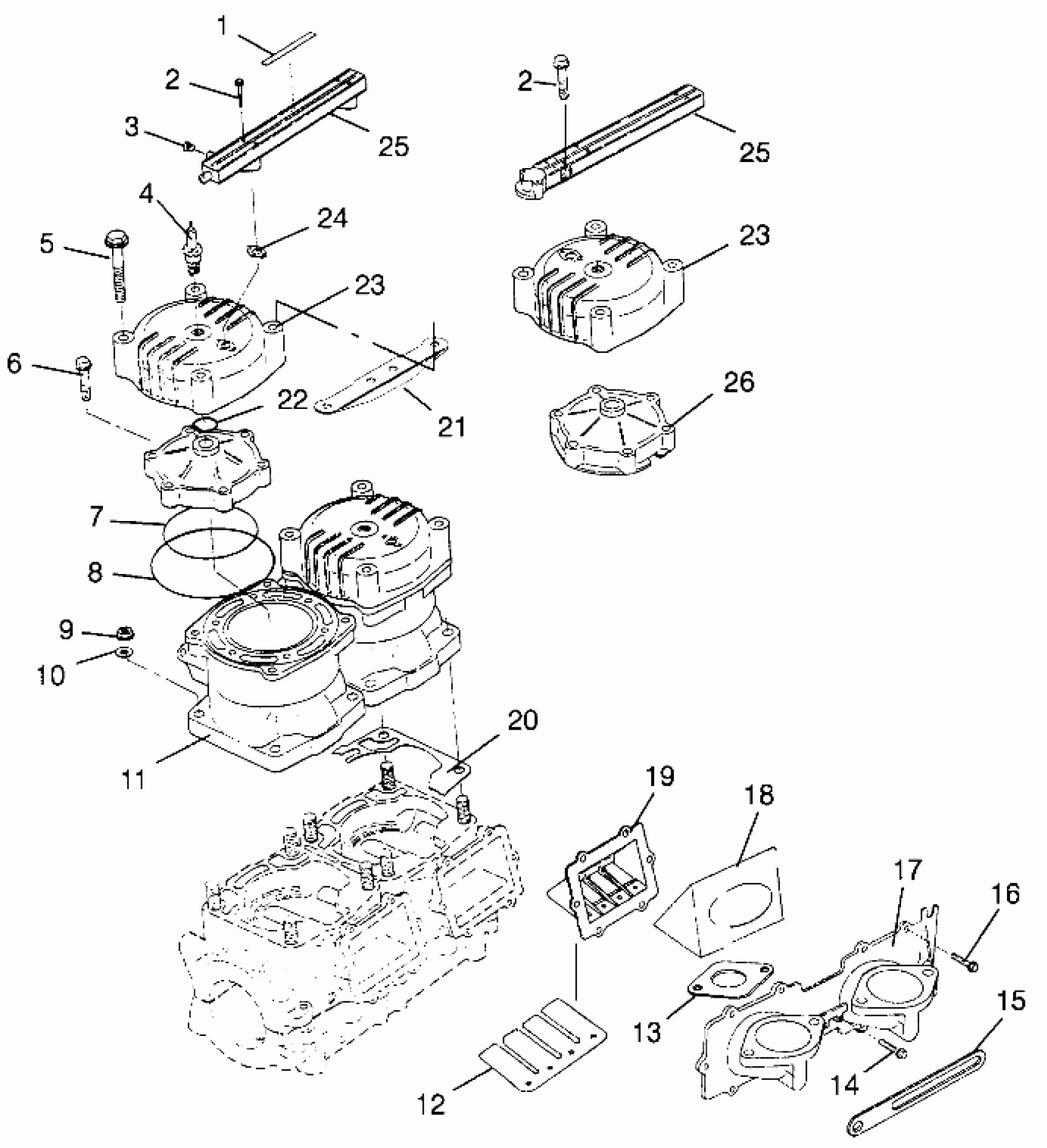

Polaris SLT 700 - B964166 CYLINDER & MANIFOLD SLT 700 B964166 and Intl. SLT 700 I964166 (4933923392B014) Diagram

#

Description
Price

-

KIT,GASKET,TOP END (700 Twin) (Incl. 7, 8, 20, 22)

2200673

Unavailable

-

KIT,GASKET SET,COMP. (700 Twin) (Incl. 7, 8, 20, 22, 24)

2200680

Unavailable

1

Decal, Warning

7075383

Unavailable

2

BOLT(10)

7516806

Unavailable

2

BOLT(10)

7516806

Unavailable

3

PLUG,PIPE(10)

7051527

Unavailable

4

SPARKPLUG, BPR-7ES(10)

3070173

Unavailable

5

BOLT(10)

7516722

Unavailable

6

BOLT(10) Substituted by 7517251

7516724

Unavailable

7

O-RING

5410932

$20.22

8

O-Ring

5410931

Unavailable

9

NUT(10)

7547013

$1.99

10

WASHER,FLAT (10)

7555985

Unavailable

11

CYLINDER,BIGBORE,81MM,PWC

5131081

Unavailable

12

KIT,REED VALVES (Incl. Valve & Screws)

2200677

Unavailable

13

GASKET,CARB.

5830043

Unavailable

14

BOLT(10)

7516814

Unavailable

15

RETAINER,SS.

7080654

$18.32

16

BOLT(10)

7516807

Unavailable

17

MANIFOLD,INTAKE

5630529

Unavailable

18

STUFFER,REED BLOCK Substituted by 5433151

5432104

Unavailable

19

REEDVALVE ASM. Substituted by 1201689

1201592

Unavailable

20

GASKET,CYL.BASE

5811057

$7.67

21

BRKT,HEAD,TWIN,FIRE RED

5241768-093

Unavailable

22

O-RING(10)

5410917

$1.49

23

COVER,HEAD,RED,BIG BORE

5630527-093

Unavailable

23

COVER,HEAD,RED,BIG BORE

5630527-093

Unavailable

24

GASKET,WATER MANIF.

5830061

Unavailable

25

MANIFOLD,OUTLET,FIRE RED Substituted by 5630826-093 (For WC70DCSP02 Engine)

5630622-093

Unavailable

25

MANIFOLD,OUTLET,WATER Substituted by 5630557-093 (For WC70DCSP01 Engine)

5630557

Unavailable

25

MANIFOLD,OUTLET,FIRE RED Substituted by 5630826-093 (For WC70DCSP02 Engine)

5630622-093

Unavailable

25

MANIFOLD,OUTLET,WATER Substituted by 5630557-093 (For WC70DCSP01 Engine)

5630557

Unavailable

26

HEAD,CYL,81MM DIA

3022025

Unavailable
