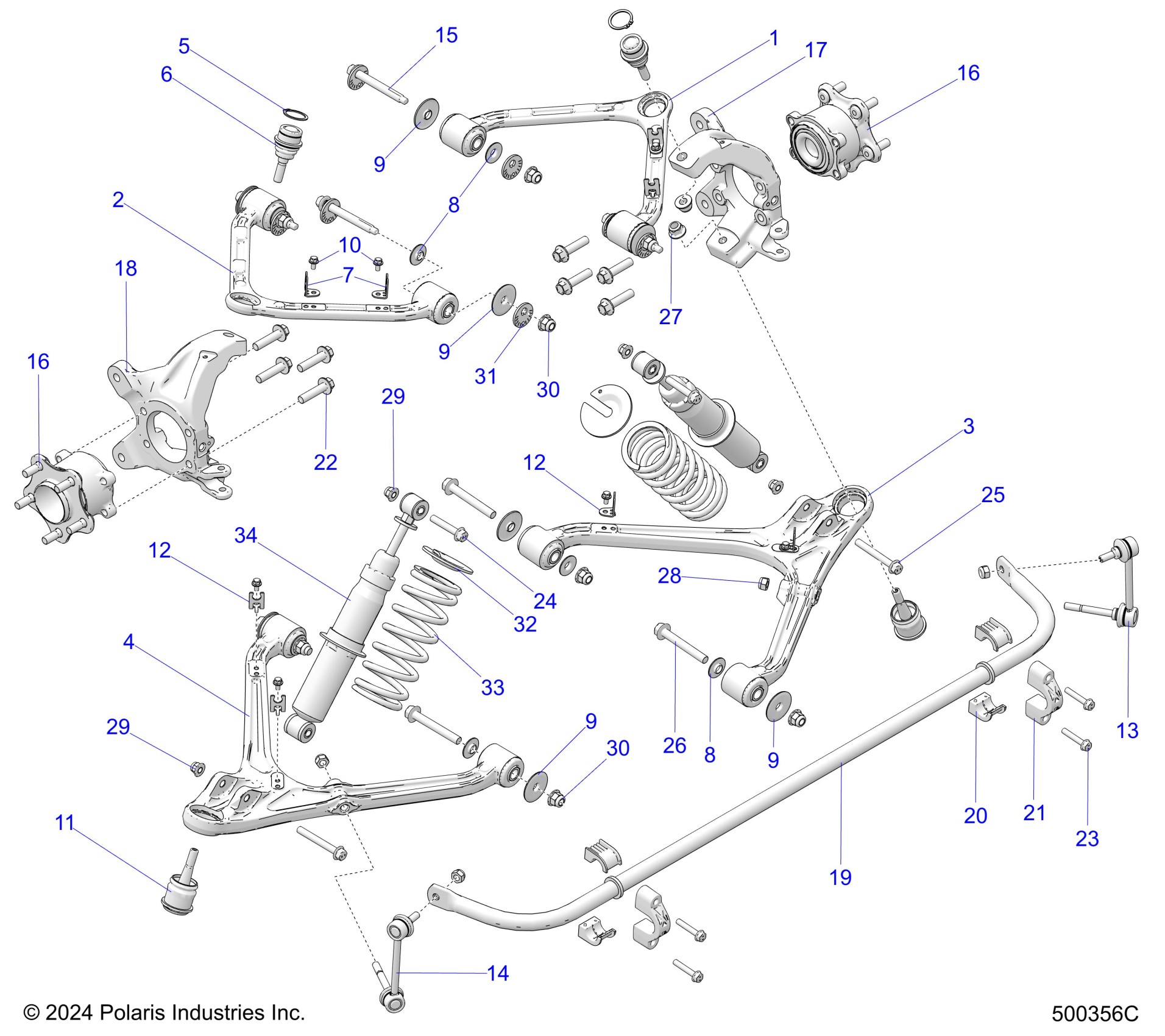

Polaris SLINGSHOT SLR (R01) - T25AAFGB/HB SUSPENSION, FRONT ASM. - T25AAFGB/HB (500356C) Diagram

#

Description
Price

1

ASM-ARM,CONTROL,UPPER,LH [INCLUDES 5-10]

1545128

$274.99

2

ASM-ARM,CONTROL,UPPER,RH [INCLUDES 5-10]

1545129

$274.99

3

ASM-ARM,CONTROL,LOWER,lH [INCLUDES 8-12]

1545130

$304.99

4

ASM-ARM,CONTROL,LOWER,RH [INCLUDES 8-12]

1545131

$304.99

5

RING-RTG,DSH-33ST

7710716

$8.08

6

BALL-JOINT,TAPER,S24MM

7061324

Unavailable

7

MOUNT-LINE,WSS

5273893

$1.59

8

SPACER-BUSHING,SMALL

5273773

$1.59

8

SPACER-BUSHING,SMALL

5273773

$1.59

9

SPACER-BUSHING,DISHED

5274958

$1.59

9

SPACER-BUSHING,DISHED

5274958

$1.59

9

SPACER-BUSHING,DISHED

5274958

$1.59

9

SPACER-BUSHING,DISHED

5274958

$1.59

10

SCREW-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

11

BALL JOINT, TAPERED, LWR TENS

7061202

Unavailable

12

MOUNT-LINE,BRAKE

5273892

$1.59

12

MOUNT-LINE,BRAKE

5273892

$1.59

13

ASM-LINK,STABILIZER BAR,LH

1545086

$125.86

14

ASM-LINK,STABILIZER BAR,RH

1545087

$125.86

15

ASM-FASTENER,ECCENTRIC

1545125

$9.51

16

HUB, FRONT

3515108

$194.99

16

HUB, FRONT

3515108

$194.99

17

KNUCKLE, LH

5139939

$396.97

18

KNUCKLE, RH

5139940

$396.97

19

BAR-STABILIZER

5345462

$309.99

20

BUSHING-STABILIZER BAR

5458673

$7.14

21

BRKT-CAP,STABILIZER BAR

5639273

$11.32

22

SCR-HXFL-M12X1.25X50 10.9 ZB3

7520003

$23.81

23

SCR-HXFL-M8X1.25X45 10.9 ZFB

7521332-45

$3.17

24

SCR-HXFL-M10X1.5X55 10.9 ZFB

7521333-55

$7.14

25

SCR-HXFL-M10X1.5X80 10.9 ZFB

7521333-80

$3.17

26

SCR-HXFL-M12X1.75X9010.9 ZFB

7521334-90

$2.38

27

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.76

28

NUT-HEX-M10X1.5 10 ZB3 NYL

7547746

$2.38

29

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.38

29

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.38

30

NUT-HXFL-M12X1.75 8 ZTB NYL

7548030

$3.17

30

NUT-HXFL-M12X1.75 8 ZTB NYL

7548030

$3.17

31

WSHR-12X38.7X3 ZFS ECC7

7558794

$2.38

32

RETAINER, SPRING, STEEL

7044246

$27.78

33

SPR-30.1N,301FL,60-60ID,BLACK

7045001-266

$109.99

34

SHOCK-FRONT

7045003

$124.99
