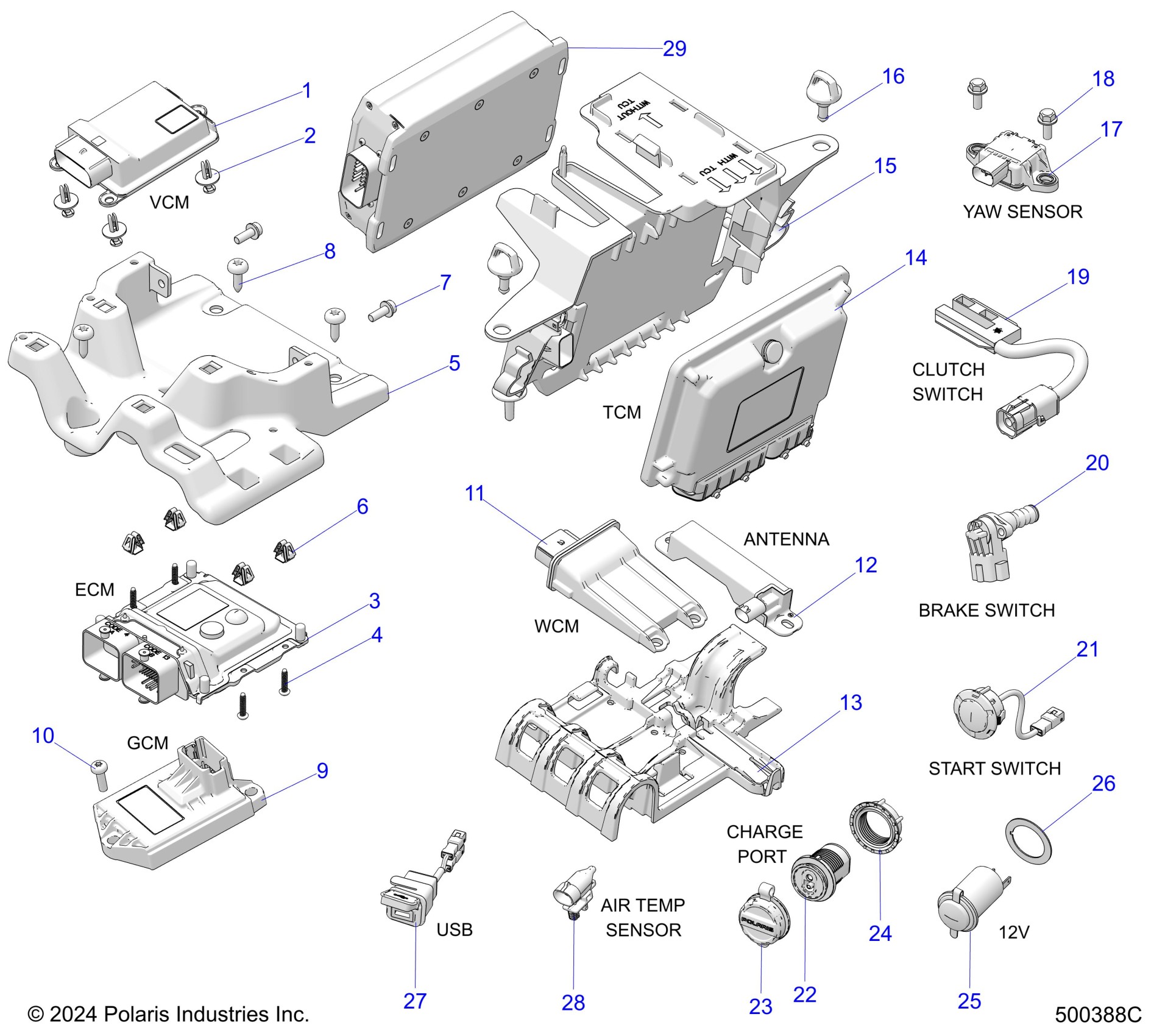

Polaris SLINGSHOT SLR (R01) - T25AAFGB/HB ELECTRICAL, COMPONENTS 1 - T25AAFGB/HB (500388C) Diagram

#

Description
Price

1

VCM-GEN2.1,UNPROGRAMMED,V2 [DEALER INSTALL REQUIRED]

4082236

$304.99

2

RIVET-PLASTIC,PUSH,1/4"

7661927

$1.19

3

ECM-HARD,MG1,112P,3LSF [DEALER INSTALL REQUIRED]

4082489

$344.99

4

SCR-TXPH-#8X0.75 ZOD

7520868

$3.17

5

BRKT-MNT,CONTROLLERS

5454672

$32.37

6

NUT, PAL NUT, M4

7547324

$3.97

7

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.97

8

SCR-TXBH-M6X1.0X21 ZB SH TAP

7520909

$3.17

9

GCM-HARD,4CH,0L,G1,V1 [TO 4/29/2025][DEALER INSTALL REQUIRED]

4080915

$399.99

9

GCM-HARD,4CH,SHORT,V2 [FROM 4/29/2025][DEALER INSTALL REQUIRED]

4082719

$344.99

10

SCR-M6X1.0X20MM,TX,PH,8.8-B

7518546

$3.17

11

WCM,GEN1,UNPROGRAMMED,V1 [DEALER INSTALL REQUIRED]

4019281

$649.99

12

ANTENNA-LF,21KHZ

4018381

$48.56

13

MOUNT-WCM, ANTENNA

5464976

$24.27

14

TCM-PGM,SLG [AUTO ONLY]

2416894

$639.99

15

MOUNT-TCU,AMP,TCM

5465160

$36.41

16

PIN-GROMMET,PUSH

5455693

$4.76

17

SENSOR-YAW,MM7ZC

4081326

$399.99

18

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7517770

$2.38

19

SWITCH-MICRO,CLUTCH,HIGH-CURR [MANUAL ONLY]

4083311

$140.38

20

SWITCH-BRK,PLUNGER,90,SEALED

4082771

$119.99

21

SWITCH-START,MOM,NO,BICLR,LSD

4081300

$104.75

22

ASM-CHARGE PORT,BASE [INCLUDES 22-24]

2415295

$44.51

22

PLUG-HARNESS CHARGE PORT

2415198

$44.51

23

CAP-CHARGE PORT

5417215

$12.94

24

NUT-CHARGE PORT

5456622

$44.51

25

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

26

WASHER,RETAINING-12V DC OUTLET

5260771

$5.56

27

MODULE-USB PORT,CHRG ONLY

4081613

$124.99

27

MODULE-USB

2415518

$184.99

28

SENSOR-GAUGE,AIR TEMP,PNL MNT

4018205

$60.70

29

ASM-AMP,4 CHANNEL

2414533

$369.99
