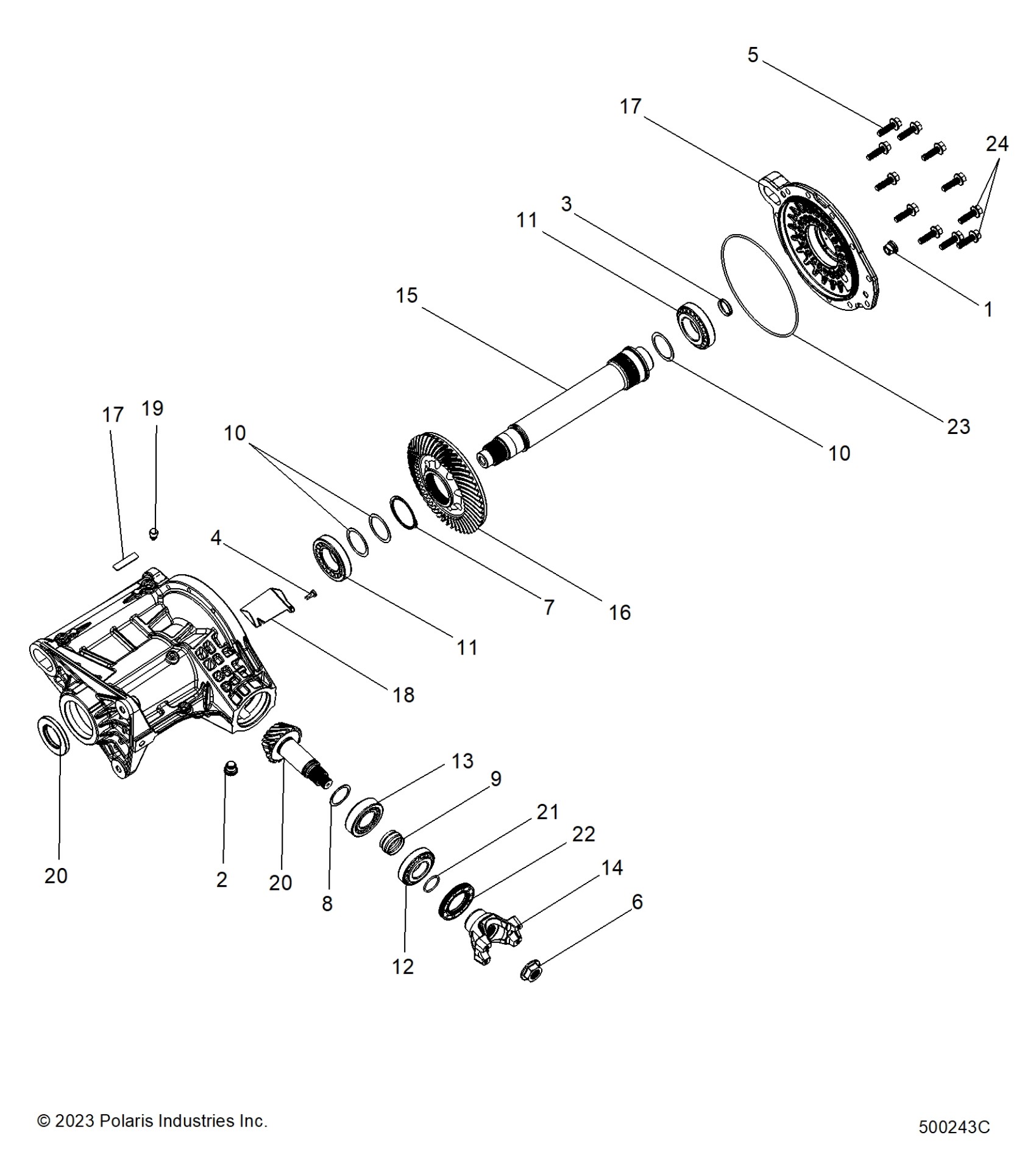

Polaris SLINGSHOT SLR (R01) - T25AAFGB/HB DRIVE TRAIN, RIGHT ANGLE GEARCASE ASM. - T25AAFGB/HB (500243C) Diagram

ASM-GEARCASE,RIGHT ANGLE [INCLUDES ALL]

1334607

$2,699.99

PLUG, M18 X 1.5

3234755

$27.78

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

PLUG, EXPANSION

3236190

$8.99

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

3234309

$7.14

SCREW, HEX FLANGE HEAD, M10 X 1.5 X 35

7520792

$8.99

NUT, HEX, M20 X 1.5

7547656

$31.75

RING-RETAIN,VSH-237(130298)

3235216

$10.32

SHIM, 1.776 OD X 1.452 ID

5263706

$94.99

SLEEVE, CRUSH

5138157

Unavailable

SHIM, 56.6 OD X 45.72 ID

5264019

$149.99

SHIM, 56.6 OD X 45.72 ID

5264019

$149.99

BEARING, TAPERED ROLLER

3514781

$85.70

BEARING, TAPERED ROLLER

3514781

$85.70

BEARING, TAPERED ROLLER

3514782

$66.65

BEARING, TAPERED, ROLLER 32207JR

3515058

$71.41

YOKE, 26T

1334007

$295.30

SHAFT, OUTPUT

5140957

$222.68

SUBASSY, BEVEL GEAR SET 17T/48T

1333967

$459.99

SUBASSEMBLY, CASE/COVER, LINE BORE

----

Unavailable

SUBASSEMBLY, CASE/COVER, LINE BORE

----

Unavailable

DEFLECTOR, OIL

1333103

$48.56

CAP, VENT

5138161

$28.32

SEAL, DUAL LIP

3610206

$35.71

SEAL, DUAL LIP

3610206

$35.71

O-RING

3610207

$5.56

SEAL, TRIPLE LIP, 45 X 75 X 8 (VITON)

3610303

$190.46

O-RING, 2-265

3610300

$43.63

SCREW, HEX FLANGE HEAD M10 X 1.5 X 35

7521254

$6.99
