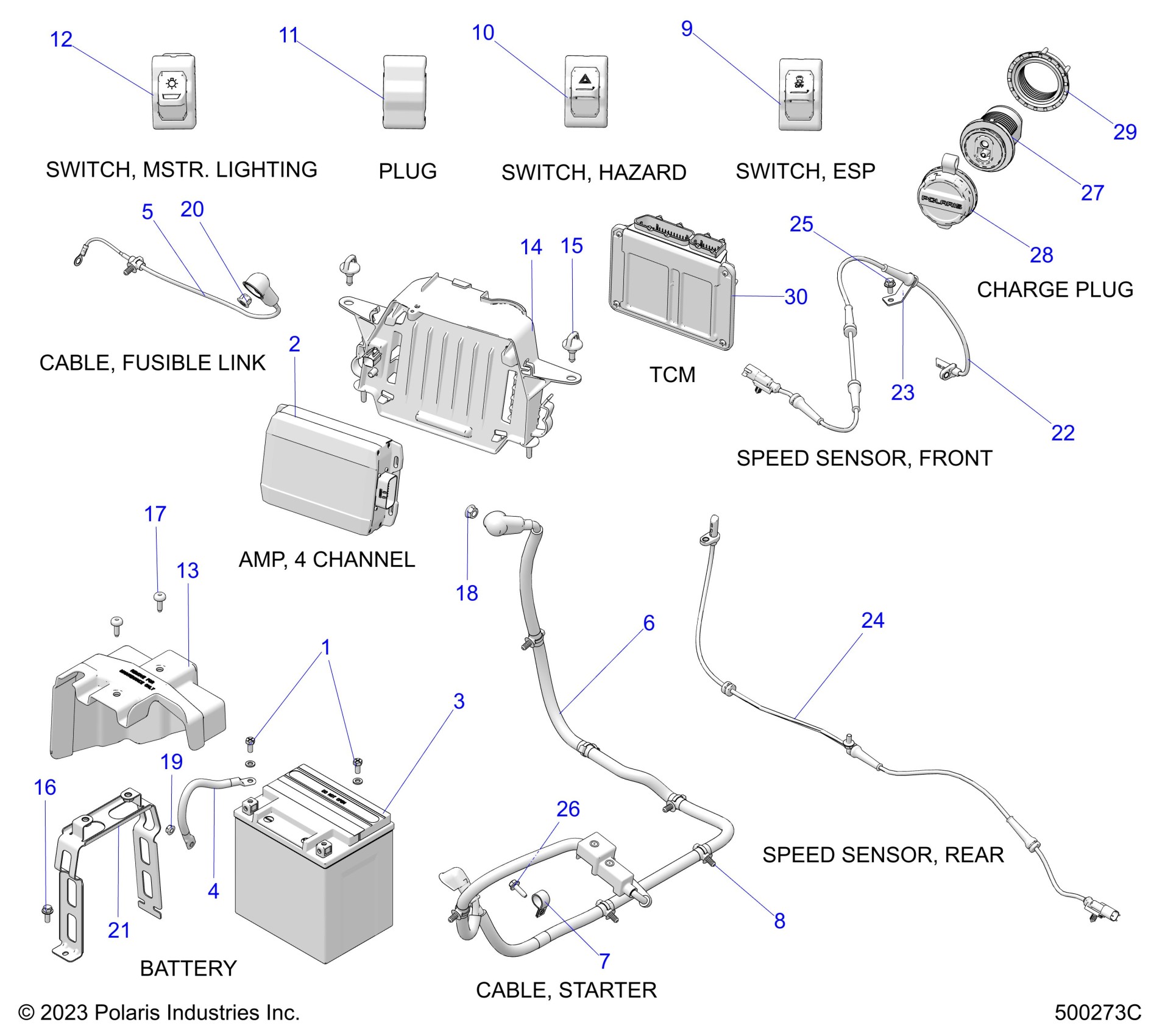

Polaris SLINGSHOT SLR (R01) - T24AAFHB/GB ELECTRICAL, COMPONENTS 2 - T24AAFHD/GD (500273C) Diagram

#

Description
Price

1

K-BATTERY BOLT,14MM [INCLUDES 2 BOLTS, 2 WASHERS, & 2 NUTS]

2208719

$6.39

2

ASM-AMP,4 CHANNEL

2414533

Unavailable

3

BATTERY-30AH,12 VOLT,AGM

4014609

$199.98

4

CABLE-GROUND,4AWG

4080438

Unavailable

5

CABLE-FUSIBLE LINK,G4,12AWG

4017337

Unavailable

6

CABLE-STARTER,SLG,4AWG [INCLUDES 7 & 8]

4080346

Unavailable

7

CLAMP-HOSE,.625 DIA VNL COATED

7080880

$5.59

8

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

9

SWITCH-ESP,SPST,NO,PDL,MOM,B/L

4018411

Unavailable

10

SWITCH-HAZARD,SPST,NO,PDL,B/L

4018412

Unavailable

11

PLUG-SWITCH,ROCKER [QTY. 2 ON USA]

4018508

$27.99

12

SWITCH-MAST LT,SPST,NO,PDL,B/L [CANADA]

4018410

Unavailable

13

SHIELD-HEAT,BATTERY

5454228

Unavailable

14

MOUNT-TCU,AMP,GPS,MODEM

5457729

Unavailable

15

PIN-GROMMET,PUSH

5455693

Unavailable

16

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7517770

$2.39

17

SCREW-TXBH-M6x1.0x15 8.8 ZB3 SH

7520011

Unavailable

18

NUT-HXFLGHD,M8,0600087

7547014

$7.84

19

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

20

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

21

BRKT-BATTERY,STRAP,E-COAT

5264571-329

Unavailable

22

SENSOR, SPEED, WHEEL, FRONT

4013495

Unavailable

23

BRACKET MOUNT, WSS KNUCKLE

5256962

Unavailable

24

SENSOR, SPEED, WHEEL, REAR

4014078

Unavailable

25

SCREW-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.19

26

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

27

ASM-CHARGE PORT,BASE [INCLUDES 27-29]

2415295

$40.46

27

PLUG-HARNESS CHARGE PORT

2415198

Unavailable

28

CAP-CHARGE PORT

5417215

$12.79

29

NUT-CHARGE PORT

5456622

Unavailable

30

TCM-PGM,SLG,NON-PADDLE

2416179

Unavailable
