- SLINGSHOT SL/SLR/R ALL OPTIONS (R01) - T23AAFGB/AAFHB/AAPGD/AAPHD/AARGB/AARHB
ELECTRICAL, WIRE HARNESS - T23AAFGB/HB/PGD/HD/RGB/HB ALL OPTIONS (C0514381-2)

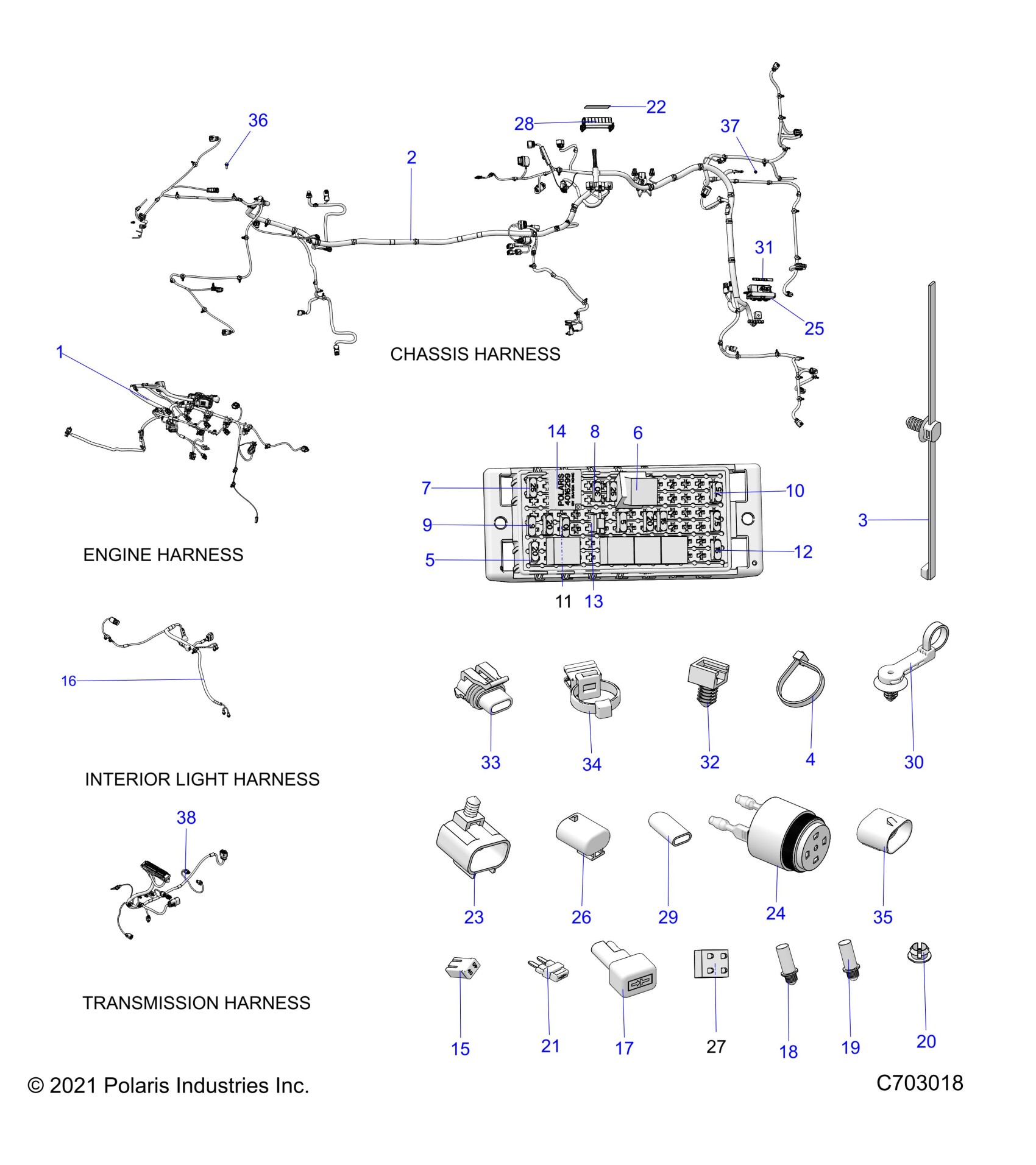

Polaris SLINGSHOT SL/SLR/R ALL OPTIONS (R01) - T23AAFGB/AAFHB/AAPGD/AAPHD/AARGB/AARHB ELECTRICAL, WIRE HARNESS - T23AAFGB/HB/PGD/HD/RGB/HB ALL OPTIONS (C0514381-2) Diagram
#
1
HARNESS-ENGINE,SS,ME17 [INCL. 33]
2415265
Unavailable
2
HARNESS-CHASSIS,SLINGSHOT,US [USA ONLY] [INCL. 2-15,22-31,32,34]
2416174
Unavailable
2
HARNESS-CHASSIS,SLINGSHOT,CND [CANADA ONLY] [INCL. 2-15,21-31,32,34]
2416175
Unavailable
3
CLIP FIR-TREE,DIA6-33MM
7081496
Unavailable
4
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
Unavailable
5
FUSE-PARK,20 AMP
2434017
Unavailable
6
RELAY-SPST,12V,20A,EPXY,HFA
4016819
$32.37
7
FUSE-25A,MINI BLADE
4011653
$7.99
8
FUSE-MAIN,30 AMP
2434015
$7.19
9
FUSE-5A,MINI BLADE
4011652
Unavailable
10
FUSE - 7.5, MINI BLADE (BROWN)
4011068
Unavailable
11
FUSE-IGNITION,10 AMP
2434016
$4.79
12
FUSE-15AMP,MINI BLADE
4010859
$7.19
13
BREAKER-CIRCUIT,20 AMP
4011372
$40.46
14
RELAY-SPDT, 12V, 35A, SEALED, HFA
4016299
$35.99
15
FUSE-MCASE,20AMP
4018414-20
Unavailable
15
FUSE-MCASE,40A
4018414-40
$5.59
15
FUSE-MCASE,50A
4018414-50
$9.59
17
DIODE - 6 AMP, 1/4, 3/16 TERM [R MODELS]
2410000
$35.99
18
LED - PANEL MNT, 12V, BLUE [R MODELS]
2413217
$51.99
19
LED-PANEL MNT,12V,DIODE,WHITE [R MODELS]
2413577
Unavailable
20
CLIP - ROUTING, DIN BOX [R MODELS]
7082020
$5.59
21
DIODE-STARTER CIRCUIT [CANADA ONLY]
2434019
$13.95
22
DECAL-FUSEBOX,SLI,US [USA ONLY]
7193659
Unavailable
22
DECAL-FUSEBOX,SLI,CND [CANANDA ONLY]
7193660
Unavailable
23
COVER-DIAGNOSTIC,W/CLIP
4012170
$8.08
24
MODULE-CHIME,SEAT BELT
4017186
Unavailable
25
FUSE-PDM [INCL. 15,27,31]
4017598
$57.19
26
COVER-DELPHI, 2P
4018133
Unavailable
27
FUSE-ZCASE,80AMP
4018415-80
Unavailable
28
COVER-FUSEBOX,BRIC,SS
4018576
Unavailable
29
CAP - VINYL, 125X375, BLACK
5438230
$5.59
30
CLIP-OFFSET,FT6 FIR TREE
7082405
$3.99
31
DECAL-PDM,SLI,US [USA ONLY]
7190989
Unavailable
31
DECAL-PDM,SLI,CND [CANANDA ONLY]
7190990
Unavailable
32
CLIP-CONNECTOR,GREY
4018311
$3.51
33
COVER-DELPHI,GT150,2P,M
4019858
Unavailable
34
CLIP-EDGE,1-3MM THICKNESS
7082428
$4.79
35
COVER-DELPHI,MP280,2P [SL MODELS]
4019664
Unavailable
36
SCREW-HXFL-M6X1.0X20 8.8 ZOD NYL
7518613
$3.99
37
NUT-HXFLGHD, M6, SERRATED
7547270
$3.99
38
HARNESS-TRANS,SS [AUTODRIVE]
2414604
Unavailable
