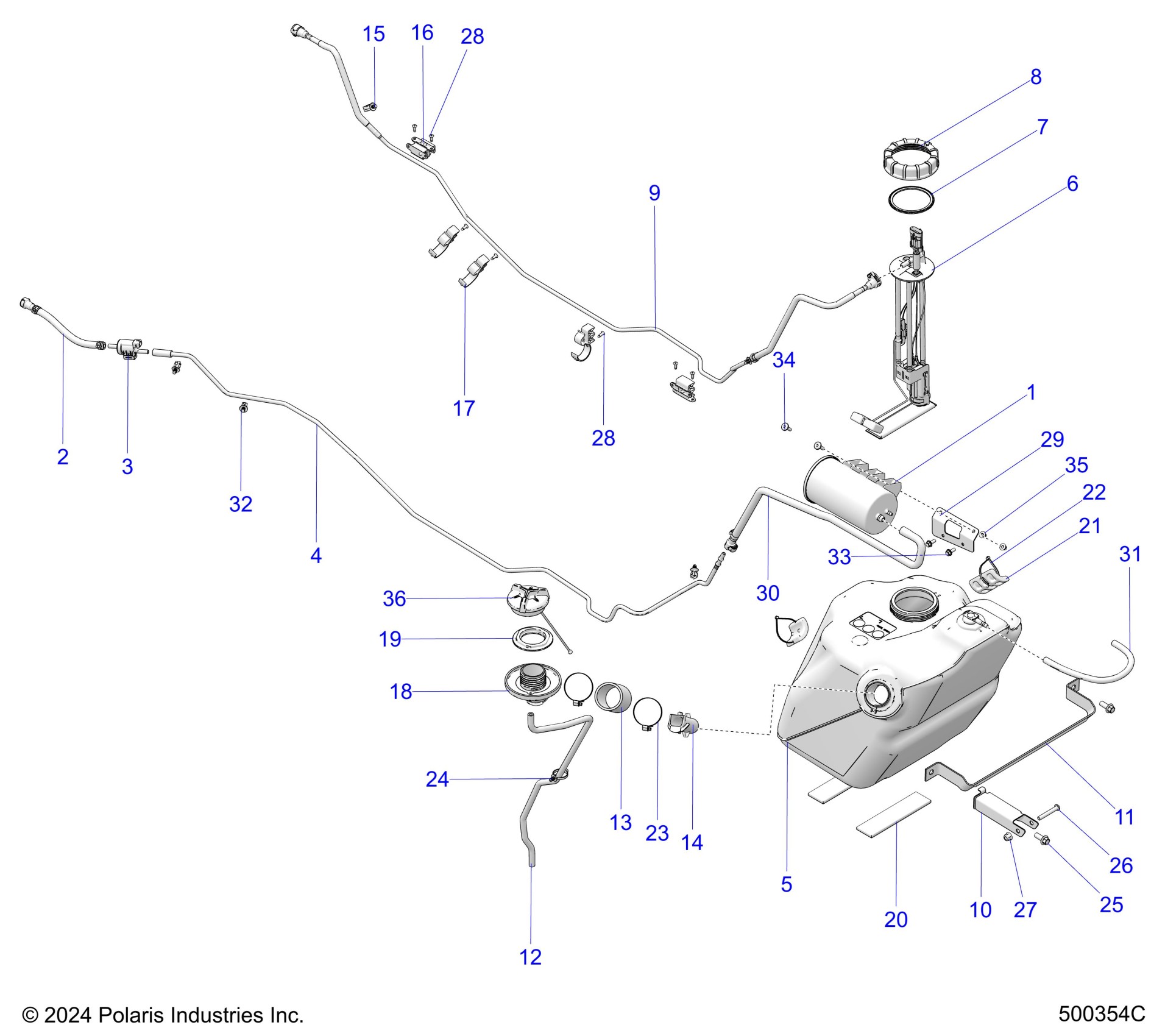

Polaris SLINGSHOT S (R01) - T25AATGD/HD FUEL, FUEL ASSEMBLY, EVAP (CALIFORNIA) - T25AATGD/HD (500354C) Diagram

#

Description
Price

1

CANISTER-EVAP,CHARCOAL,1000CC

2521280

$85.70

2

ASM., THRTL BODY LINE

2521756

$67.76

3

VALVE-PURGE

2521758

$69.99

4

LINE-EVAP,PURGE

2522837

$91.97

5

TANK, FUEL

1018856

$2,493.24

6

K-FUEL,PUMP [INCLUDES PUMP, 7 & 8]

2208889

Unavailable

7

K-FUEL, FILTER [INCLUDES 7 & 8]

2208761

$104.99

7

GASKET-PFA,RIBBED

5413451

$12.13

8

NUT-MASON JAR

5437138

$35.71

9

LINE-FUEL,FRAME

2522835

$106.49

10

BRACE, REAR, SUB-FRAME, E-COAT

5260730-329

$74.99

11

STRAP, FUEL TANK

5262540

$33.87

12

HOSE-FUEL FILL OVERFLOW ROUTED

5414578

$32.37

13

HOSE, FUEL FILL [TO 3/17/2025]

5414709

$72.60

13

HOSE-FUEL FILL,OUTER [FROM 3/17/2025]

5419283

Unavailable

14

INSERT, FUEL FILL

5450366

$36.41

15

CLIP-ROUTING,12.5

5454314

$6.64

16

CLIP-ROUTING,DUAL,90,MNT

5456038

$5.56

17

CLIP-ROUTING,DUAL,TUBE

5456053

$4.76

18

NECK-FUEL,FILL,THREADED

5465067

$43.56

19

NUT-FILLER,NECK

5466396

$4.76

20

PAD, FUEL TANK, MNT. BRKT.

5813873

$20.22

21

PAD, FUEL TANK, FRAME TUBE

5814171

$20.22

22

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

23

CLAMP, BAND, NARROW

7080413

$3.17

24

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

25

SCR-HXFL-M10X1.5X25 8.8 ZPC

7518908

$1.59

26

SCR-HXBH-M8X1.25X55 10.9 ZY3

7520293

$6.10

27

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

28

RIVET-POP3/16X.402(.126-.250)

7621425

$1.19

28

RIVET-POP3/16X.402(.126-.250)

7621425

$1.19

29

BRKT-EVAP, E-COAT

5270937-329

$32.37

30

LINE, PURGE, EVAP CAN TO FRAME

5414551

$124.99

31

HOSE-EVAP

5416486

$32.37

32

CLIP-ROUTING,8

5454313

$3.17

33

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7517770

$2.38

34

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

35

NUT-M6 FLANGE,NYLOC

7547274

$1.19

36

CAP-FUEL,RATCHET,TEXTURE

2522695

$109.99
