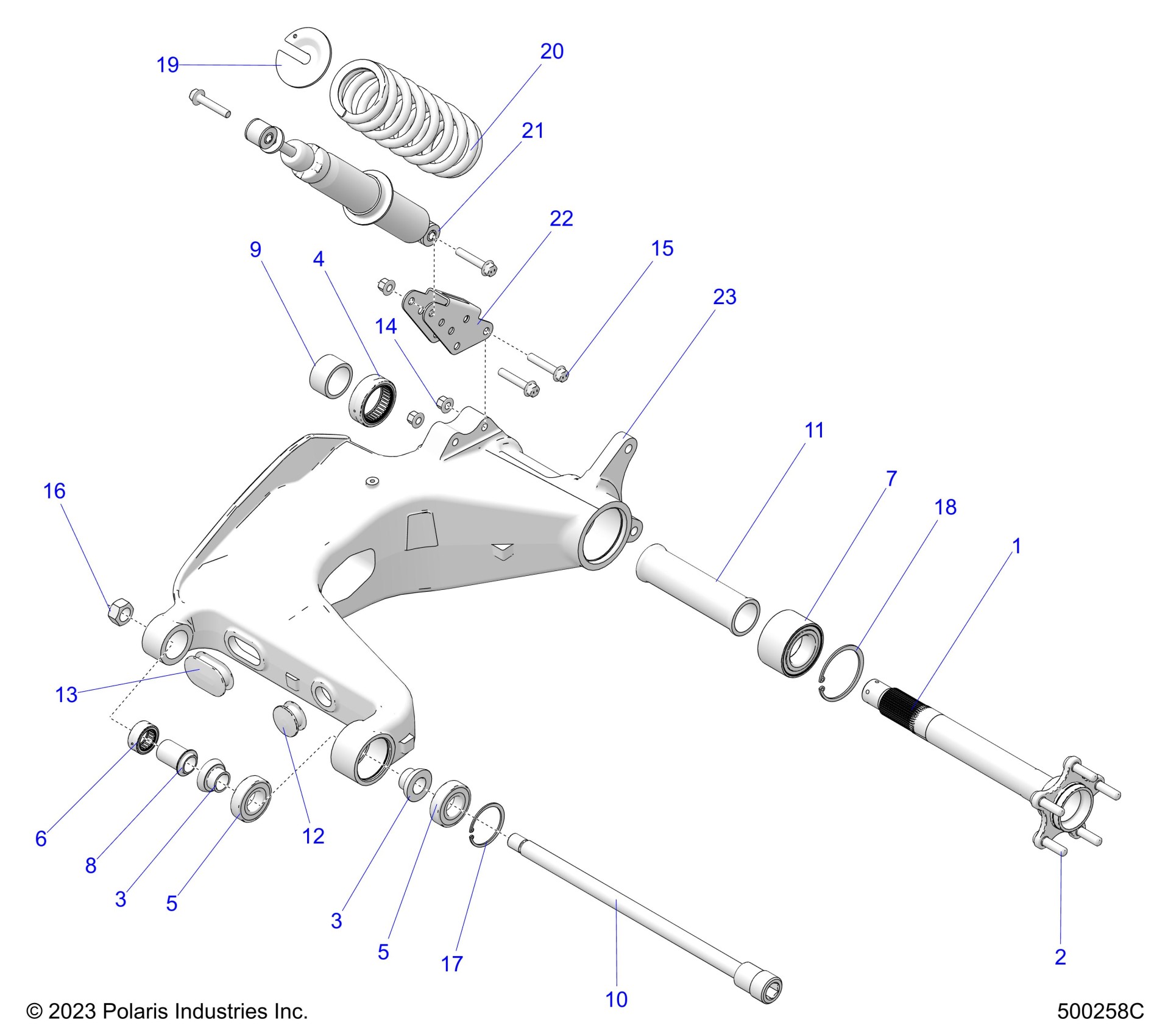

Polaris SLINGSHOT S (R01) - T24AASGD/HD/TGD/HD SUSPENSION, REAR ASM. - T24AASGD/HD/TGD/HD (500258C) Diagram

#

Description
Price

1

ASM-AXLE,REAR [INCLUDES STUDS]

1323825

$279.99

2

STUD-REAR WHEEL

7519649

Unavailable

3

BUSHING, PIVOT, BALL

3514759

$23.81

3

BUSHING, PIVOT, BALL

3514759

$23.81

4

BEARING, REAR, SPROCKET

3514760

Unavailable

5

BEARING, BALL, PIVOT

3514761

$19.84

5

BEARING, BALL, PIVOT

3514761

$19.84

6

BEARING, NEEDLE, PIVOT

3514762

$27.78

7

BEARING-WHEEL,REAR

3514773

Unavailable

8

RACE-BEARING,PIVOT

5142327

$38.08

9

RACE-BEARING,AXLE

5142328

$38.08

10

SHAFT-PIVOT,HOLLOW

5142329

$169.43

11

SPACER-AXLE,STEEL,PROFILED

5142383

$79.37

12

GROMMET, SWING ARM, SMALL

5414601

$2.62

13

GROMMET, SWING ARM, LARGE

5414602

$3.41

14

NUT-HXFL-M10X1.5 8 ZB3 NYL

7520117

$6.35

15

SCR-HXFL-M10X1.5X55 10.9 ZFB

7521333-55

$7.14

16

NUT-HEX-M20X1.5 10 ZPB

7547618

$27.78

17

RING-RTNG,DHO-62

7710681

$7.14

18

RING, RETAINING

7710693

$23.81

19

RETAINER, SPRING, STEEL

7044246

$27.78

20

SPR-350#,12FL,2.36-2.36ID, BLACK

7044846-266

$114.99

21

SHOCK-REAR

7045004

$164.99

22

CLEVIS-SHOCK,RR FNDR,G4,20,GBK

5266882-266

$91.97

23

K-ASM,SWINGARM,CRUISER BLK

2208117-266

$1,049.99
