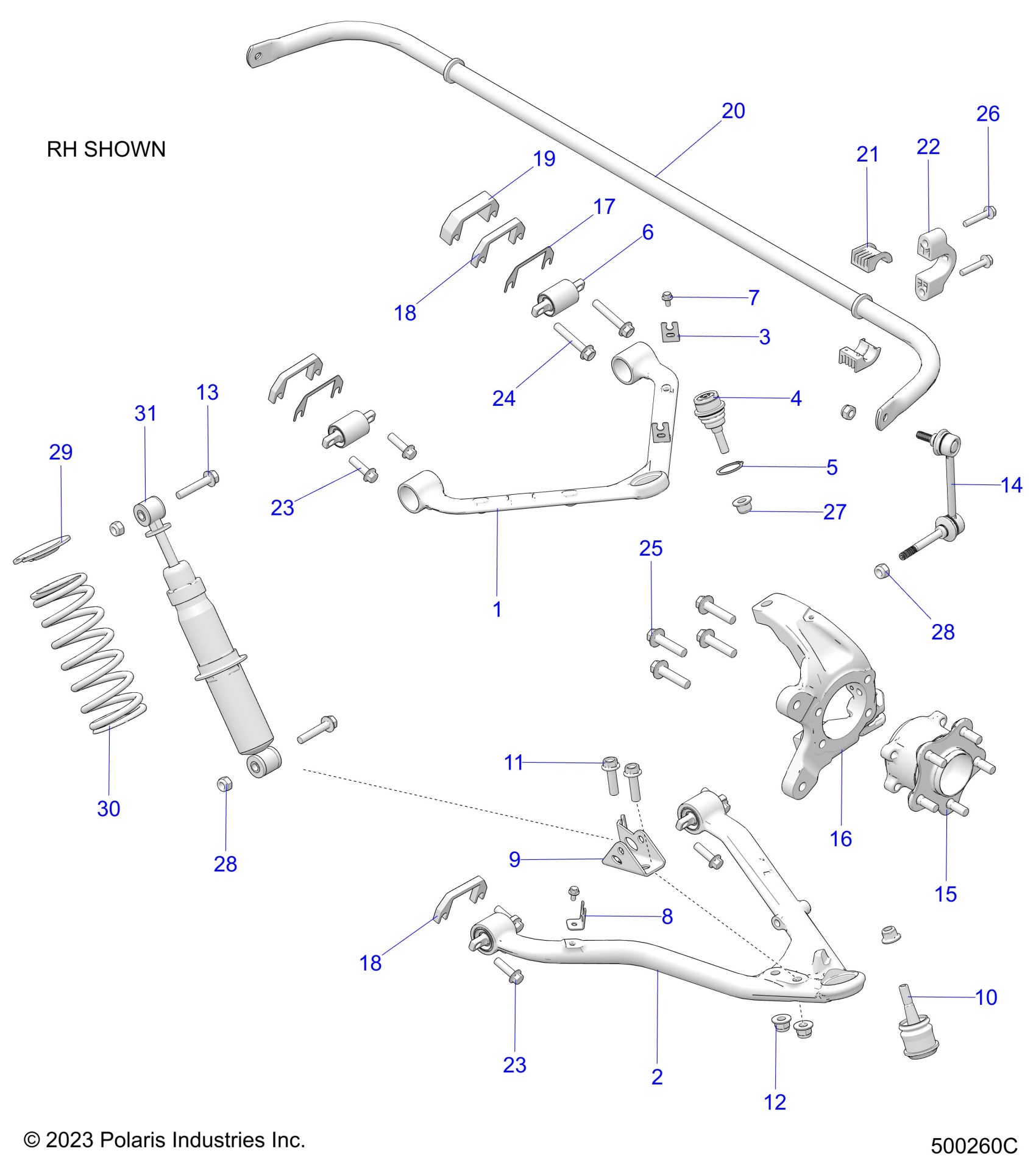

Polaris SLINGSHOT S (R01) - T24AASGD/HD/TGD/HD SUSPENSION, FRONT ASM. - T24AASGD/HD/TGD/HD (500260C) Diagram

#

Description
Price

1

ASM-ARM,CONTROL,UPPER,LH [INCLUDES 3-7]

1025377

$289.99

1

ASM-ARM,CONTROL,UPPER,RH [INCLUDES 3-7]

1025378

$289.99

2

ASM., ARM,CONTROL,LOWER,LH [INCLUDES 6-11]

1025381

$319.99

2

ASM., ARM,CONTROL,LOWER,RH [INCLUDES 6-11]

1025382

$319.99

3

MOUNT, CABLE

5258502

$39.99

4

BALL-JOINT,TAPER,S24MM

7061324

Unavailable

5

RING-RTG,DSH-33ST

7710716

$8.08

6

BUSHING-CONTROL ARM,ALUM

5417157

$49.99

7

SCREW-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

8

MOUNT, BRAKE LINE

5258501

$4.84

9

CLEVIS-FRONT,SHOCK,LH

5261010

$27.78

9

CLEVIS-FRONT,SHOCK,RH

5261634

$27.78

10

BALL JOINT, TAPERED, LWR TENS

7061202

Unavailable

11

SCR-HXFLGHD,M12X40,SPRKT BOLT

7518878

$4.76

12

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

$4.76

13

SCR-HXFL-M10X1.5X55 10.9 ZFB

7521333-55

$7.14

14

ASM-LINK,STABILIZER BAR,LH

1544823

$121.02

14

ASM-LINK,STABILIZER BAR,RH

1544824

$121.02

15

HUB, FRONT

3515108

$194.99

16

KNUCKLE, LH

5139939

$396.97

16

KNUCKLE, RH

5139940

$396.97

17

SHIM-ALIGNMENT, 1MM ALUM

5260616

Unavailable

18

SHIM-ALIGNMENT,10MM ALUM

5262689

$36.41

18

SHIM-ALIGNMENT,10MM ALUM

5262689

$36.41

19

SHIM-ALIGNMENT,20MM ALUM

5262690

$36.41

20

BAR-STABILIZER

5345462

$309.99

21

BUSHING-STABILIZER BAR

5458673

$7.14

22

BRKT-CAP,STABILIZER BAR

5639273

$11.32

23

SCR-HXFL-M10X1.5X35 8.8 ZPC

7518644

$4.76

23

SCR-HXFL-M10X1.5X35 8.8 ZPC

7518644

$4.76

24

SCR-M10X1.5X60-8.8 HFS ZOD

7518941

$3.97

25

SCR-HXFL-M12X1.25X50 10.9 ZB3

7520003

$23.81

26

SCR-HXFL-M8X1.25X45 10.9 ZFB

7521332-45

$3.17

27

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.76

28

NUT-HEX-M10X1.5 10 ZB3 NYL

7547746

$2.38

28

NUT-HEX-M10X1.5 10 ZB3 NYL

7547746

$2.38

29

RETAINER, SPRING, STEEL

7044246

$27.78

30

SPR-30.1N,301FL,60-60ID,BLACK

7045001-266

$109.99

31

SHOCK-FRONT

7045003

$124.99
