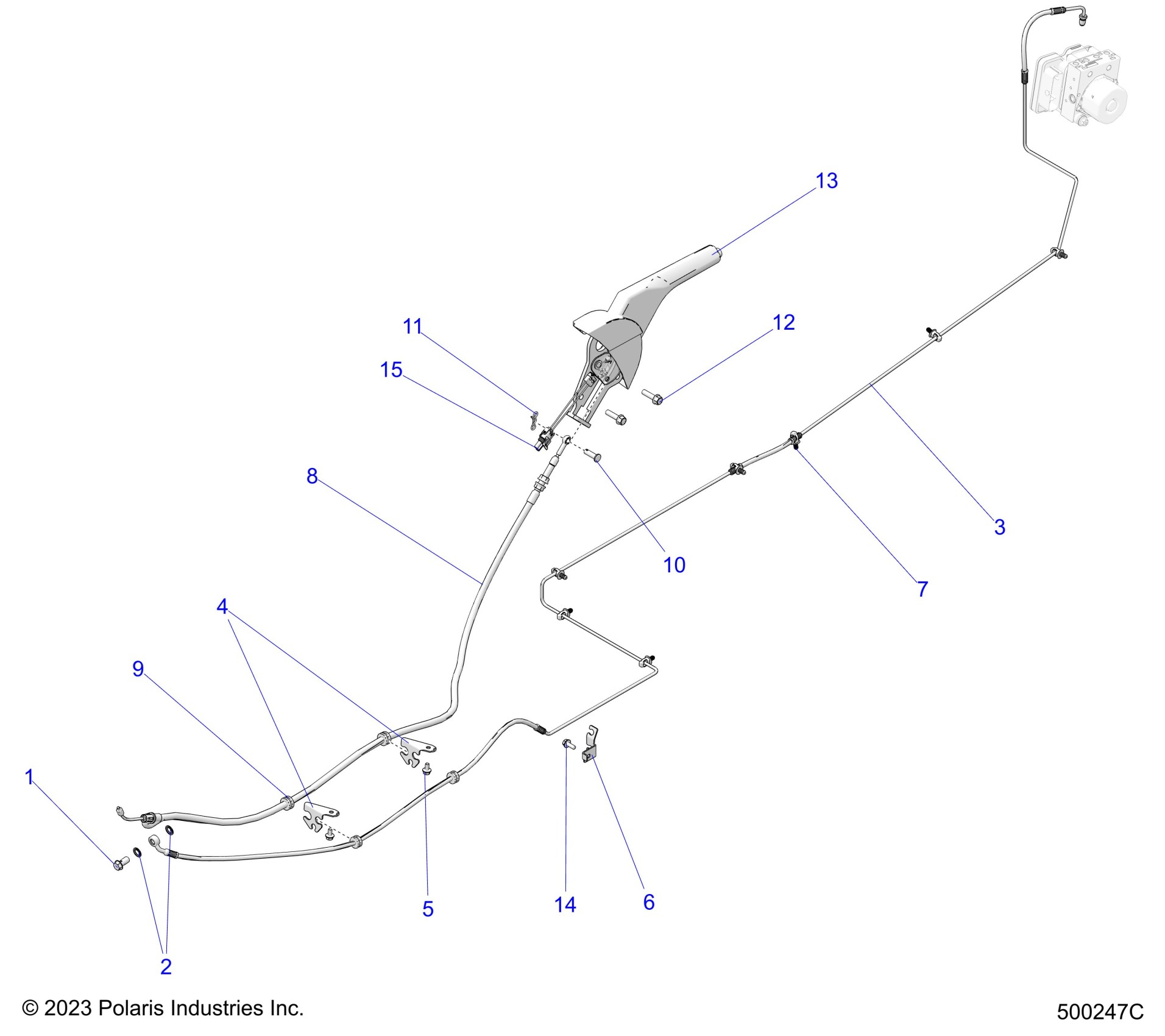

Polaris SLINGSHOT S (R01) - T24AASGD/HD/TGD/HD BRAKES, REAR BRAKE LINE and PARK BRAKE - T24AASGD/HD/TGD/HD (500247C) Diagram

#

Description

Price

1

BOLT-BANJO,10MMX1.00-6G

1910499

Unavailable

2

SEAL-STAT-0-3/8, 70EP

5413212

$4.84

3

HOSE-BRAKE,CALIPER,LR

1913859

$329.99

4

BRACKET-MNT,BRKE,EBRAKE,WSS

5256663

$4.94

5

SCREW-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

6

BRACKET-MNT,HOSE,BRAKE,REAR

5264551

$7.27

7

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

8

CABLE-PARKING BRAKE,LH [INCLUDES 9]

7082478

$121.02

9

GRMT-9.5X2.5X15.5MM

5414615

$5.56

10

PIN-CLEVIS

7662149

$28.56

11

CLIP-PIN

7662195

$3.97

12

SCR-HXFL-M8X1.25X30 8.8 ZPC

7518800

$4.76

13

ASM-LEVER,E BRAKE,LH [INCLUDES 15]

1913670

$203.32

14

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7517770

$2.38

15

SWITCH-PARK BRAKE, SVC

1911443

$109.24
