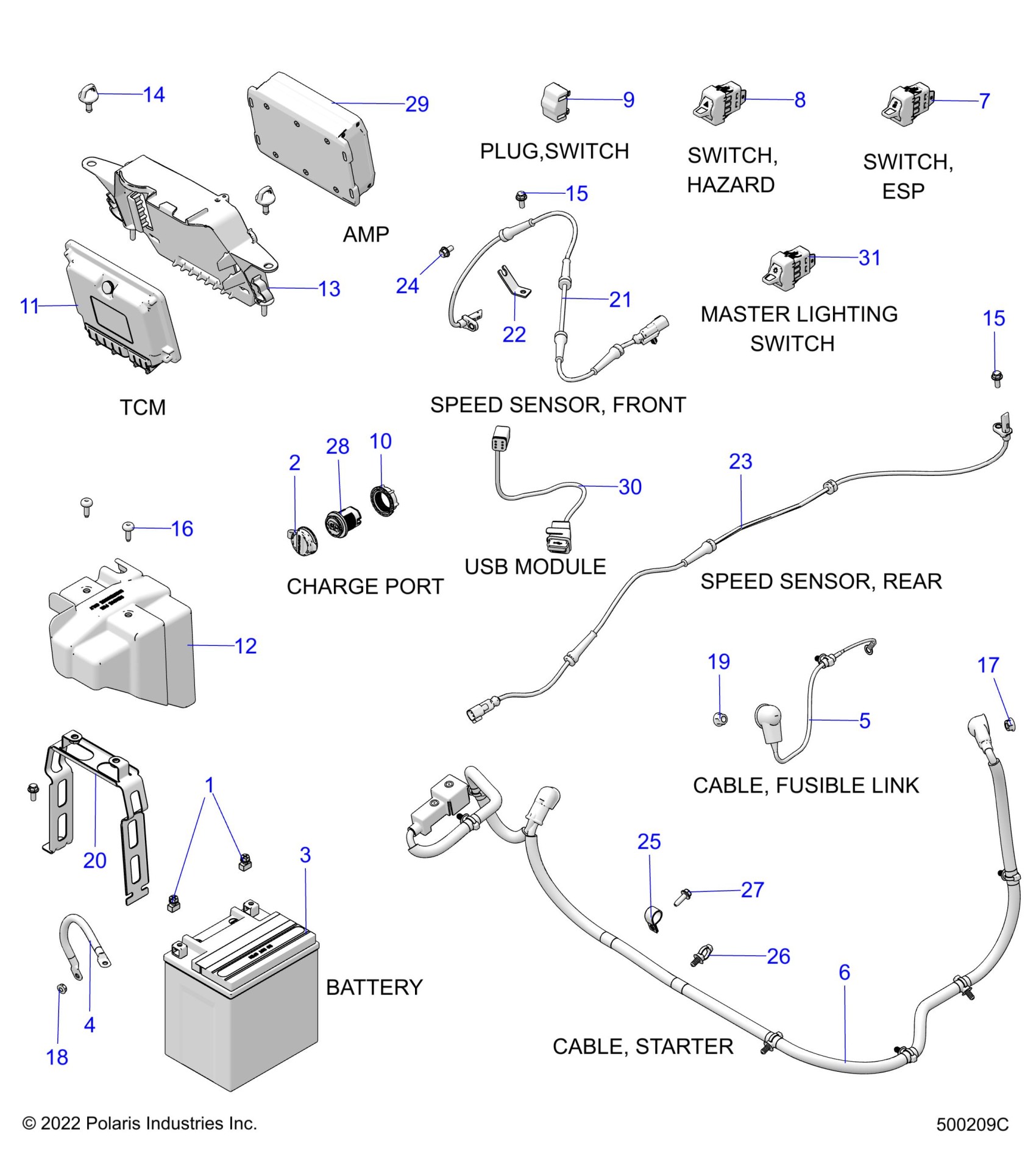

Polaris SLINGSHOT S/LE (R02) - T22AASGD/AASHD/AATGD/AATHD/AALHD/AALGD ELECTRICAL, COMPONENTS 2 - T22AASGDAA/BA/SHDAA/BA/TGDAA/AB/BA/BB/THDAA/AB/BA/BB/LHDAR/BR/CR/LGDAR/BR/CR (C0514381-1) Diagram

ASM-CHARGE PORT,BASE (INCL. 2,10,28)

2415295

$40.46

K-BATTERY BOLT,14MM (INCL. 2 BOLTS, 2 WASHERS, AND 2 NUTS)

2208719

$6.39

CAP-CHARGE PORT

5417215

$12.79

BATTERY-30AH,12 VOLT,AGM

4014609

$199.98

CABLE-GROUND,4AWG

4080438

Unavailable

CABLE-FUSIBLE LINK,G4,12AWG

4017337

Unavailable

CABLE-STARTER,SLG,4AWG (INCL. 25,26)

4080346

Unavailable

SWITCH-ESP,SPST,NO,PDL,MOM,B/L

4018411

Unavailable

SWITCH-HAZARD,SPST,NO,PDL,B/L

4018412

Unavailable

PLUG-SWITCH,ROCKER (QTY. 2 ON USA S & S TECH MODELS)

4018508

$27.99

NUT-CHARGE PORT

5456622

Unavailable

TCM-PGM,SLG,NON-PADDLE

2416179

Unavailable

SHIELD-HEAT,BATTERY

5454228

Unavailable

MOUNT-TCU,AMP,GPS,MODEM

5457729

Unavailable

PIN-GROMMET,PUSH

5455693

Unavailable

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7517770

$2.39

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7517770

$2.39

SCREW-TXBH-M6x1.0x15 8.8 ZB3 SH

7520011

Unavailable

NUT-HXFLGHD,M8,0600087

7547014

$7.84

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

BRKT-BATTERY,STRAP,E-COAT

5264571-329

Unavailable

SENSOR, SPEED, WHEEL, FRONT

4013495

Unavailable

BRACKET MOUNT, WSS KNUCKLE

5256962

Unavailable

SENSOR, SPEED, WHEEL, REAR

4014078

Unavailable

SCREW-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.19

CLAMP-HOSE,.625 DIA VNL COATED

7080880

$5.59

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

PLUG-HARNESS CHARGE PORT

2415198

Unavailable

ASM-AMP,4 CHANNEL (LE MODELS)

2414533

Unavailable

MODULE-USB (LE MODELS)

2415518

Unavailable

SWITCH-MAST LT,SPST,NO,PDL,B/L (CANADA ONLY)

4018410

Unavailable
