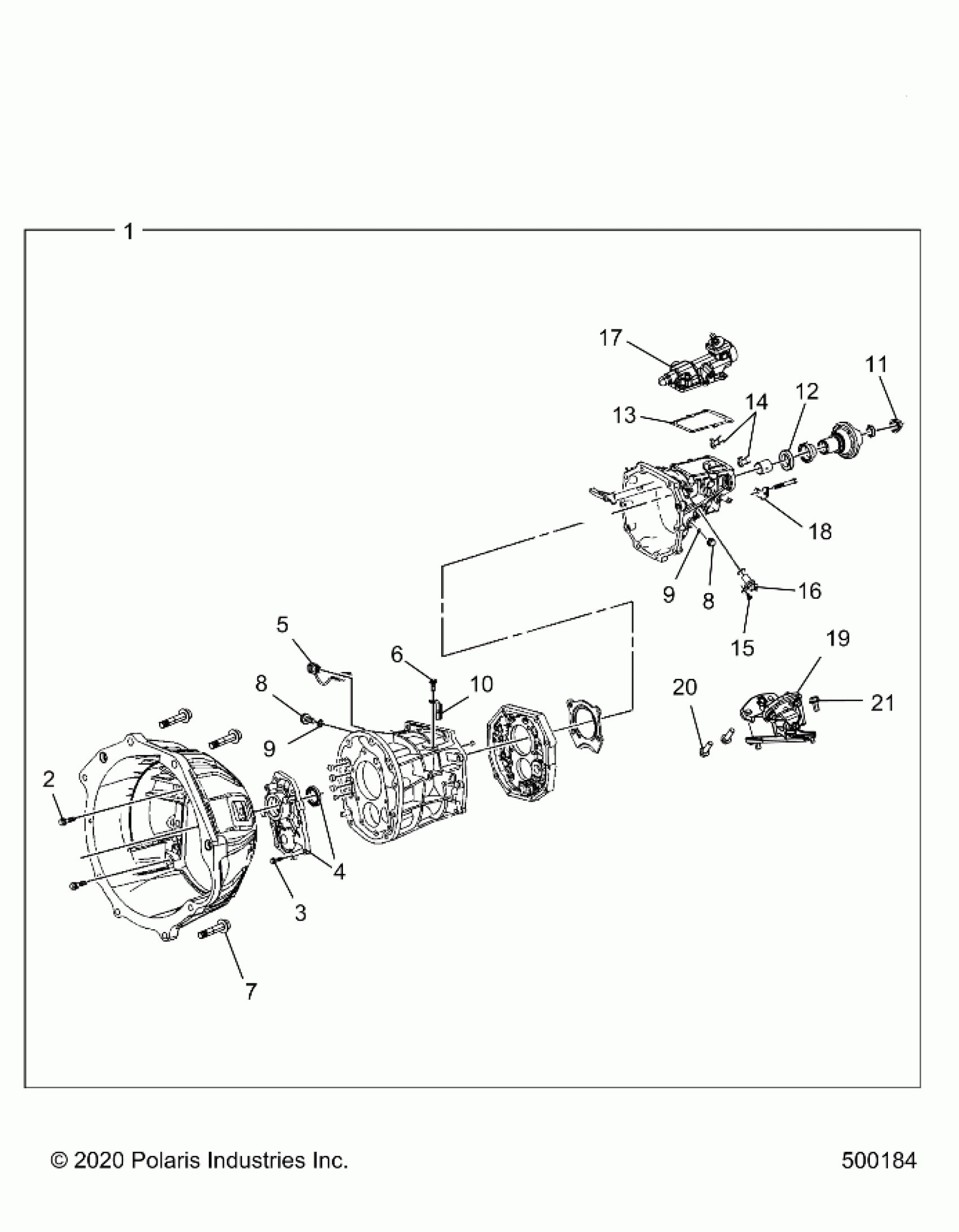

Polaris SLINGSHOT S/LE (R02) - T22AASGD/AASHD/AATGD/AATHD/AALHD/AALGD DRIVE TRAIN, TRANSMISSION CASE MANUAL - T22AASGDAA/BA/TGDAA/AB/BA/BB/LGDAR/BR/CR (500184) Diagram

#

Description
Price

1

ASM-TRANSMISSION,M (INCL. 1-6,8-18)

1336992

$7,999.99

2

BOLT, W/WASHER

3235663

$3.97

3

BOLT, W/WASHER

3235662

$3.97

4

ASM., RETAINER, BEARING, FRONT, W/SEAL (INCL. SEAL)

3235660

$309.99

5

CLAMP

3235651

$35.71

5

SWITCH, BACK UP LAMP

3235649

$139.99

6

BOLT, W/WASHER

3235650

$3.97

7

SCR-HXFL-M10X1.5X50 10.9 ZOD

7519783

$23.81

8

PLUG, STRAIGHT SCREW W/HEAD

3235643

$47.60

8

PLUG, STRAIGHT SCREW W/HEAD

3235643

$47.60

9

GASKET

3235642

$15.87

9

GASKET

3235642

$15.87

10

CLAMP

3235653

$43.65

11

NUT

3235688

$64.99

12

SEAL, MAIN SHAFT, REAR

3610371

$23.81

13

GASKET,CONTROL SHIFT LEVER RETAINER

3235675

$135.30

14

CLAMP

3235652

$43.65

15

BOLT, FLANGE

3235656

$23.81

16

SENSOR, SPEED

3235655

$319.99

17

LEVER, SHIFT ASSEMBLY

3235647

$198.48

18

CLAMP

3235654

$43.65

19

ISOLATOR-TRANS MNT

1333741

$119.99

20

SCR-HXFL-M10X1.5X30 10.9 ZB

7517425

$4.84

21

SCR-HXFL-M10X1.5X20 8.8 Z NYL

7518460

$1.59
