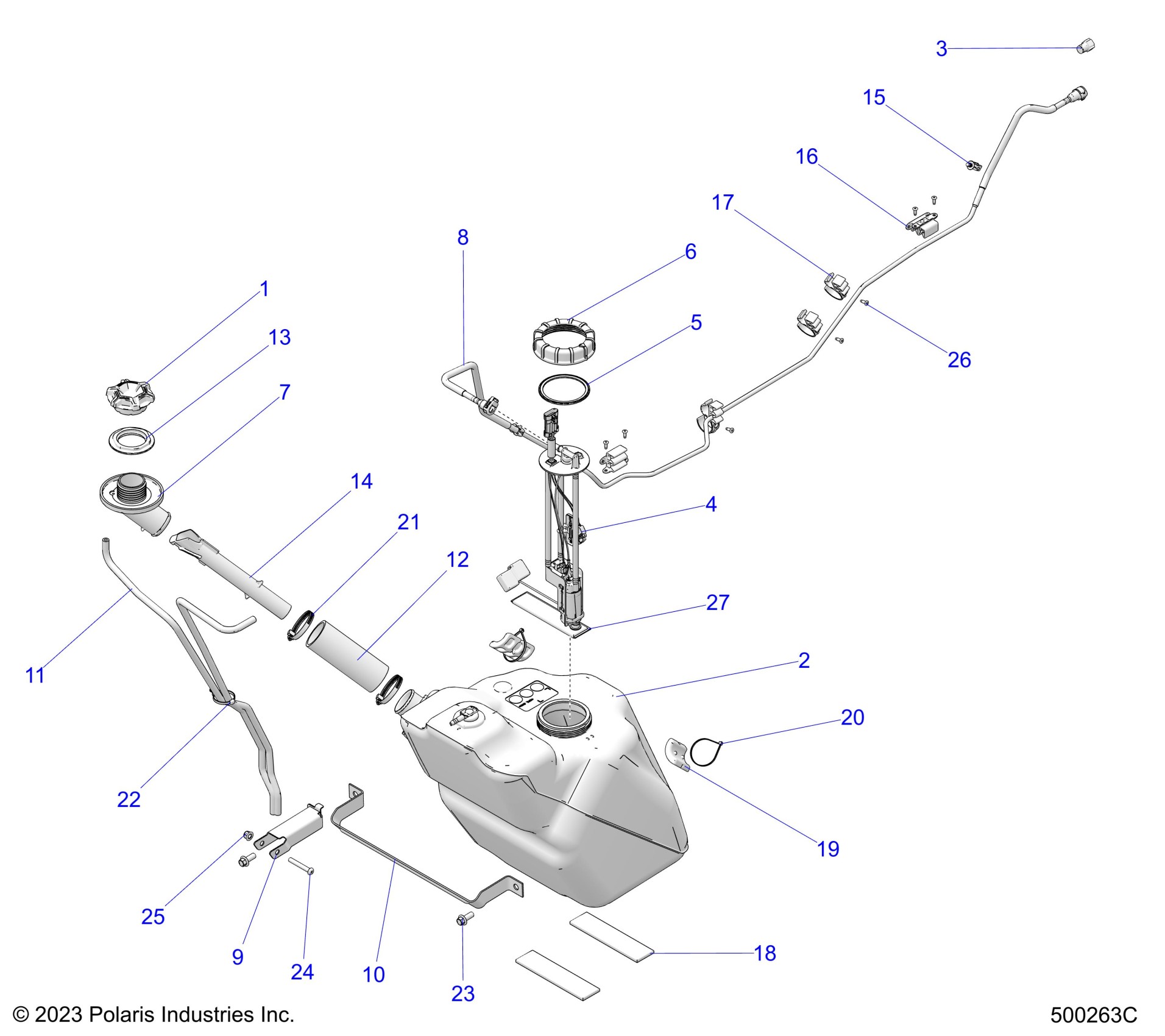

Polaris SLINGSHOT ROUSH EDITION (R01) - T24AALHB/GB FUEL SYSTEM, FUEL TANK ASM. - T24AALHB/GB (500263C) Diagram

#

Description
Price

1

CAP, FUEL, NON VENTED

2521278

Unavailable

1

CAP-FUEL, NON VENTED, BLACK [CRUISER BLACK]

2521278-266

Unavailable

1

CAP-FUEL,NON VENTED,GHST WHT [GHOST WHITE]

2521278-774

Unavailable

1

CAP-FUEL,NON VENTED,SLG ORG [SLINGSHOT ORANGE]

2521278-881

Unavailable

1

CAP-FUEL,NON VENTED,INDSKY BL [INDIAN SKY BLUE]

2521278-737

Unavailable

1

CAP-FUEL,NON VENTED,POL.BLU [POLARIS BLUE]

2521278-795

Unavailable

2

TANK, FUEL

1018856

Unavailable

3

CAP-EVAP,THROTTLE BODY [NON EVAP ONLY]

2521948

$12.79

4

PUMP-FUEL

2521753

Unavailable

5

GASKET-PFA,RIBBED

5413451

$11.99

6

NUT-MASON JAR

5437138

$35.99

7

NECK-FUEL,FILL,THREADED

5465067

Unavailable

8

LINE-FUEL,FRAME

2522091

Unavailable

9

BRACE, REAR, SUB-FRAME, E-COAT

5260730-329

Unavailable

10

STRAP, FUEL TANK

5262540

Unavailable

11

HOSE-FUEL FILL OVERFLOW ROUTED

5414578

Unavailable

12

HOSE, FUEL FILL

5414709

$55.99

13

Nut, Filler Neck

5435156

$4.79

14

INSERT, FUEL FILL

5450366

Unavailable

15

CLIP-ROUTING,12.5

5454314

$4.79

16

CLIP-ROUTING,DUAL,90,MNT

5456038

Unavailable

17

CLIP-ROUTING,DUAL,TUBE

5456053

Unavailable

18

PAD, FUEL TANK, MNT. BRKT.

5813873

Unavailable

19

PAD, FUEL TANK, FRAME TUBE

5814171

Unavailable

20

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

21

CLAMP, BAND, NARROW

7080413

$3.19

22

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

23

SCR-HXFL-M10X1.5X25 8.8 ZPC

7518908

$1.59

24

SCR-HXBH-M8X1.25X55 10.9 ZY3

7520293

Unavailable

25

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

26

RIVET-POP3/16X.402(.126-.250)

7621425

$1.49

27

K-FUEL, FILTER [INCLUDES 5 & 6]

2208761

Unavailable
