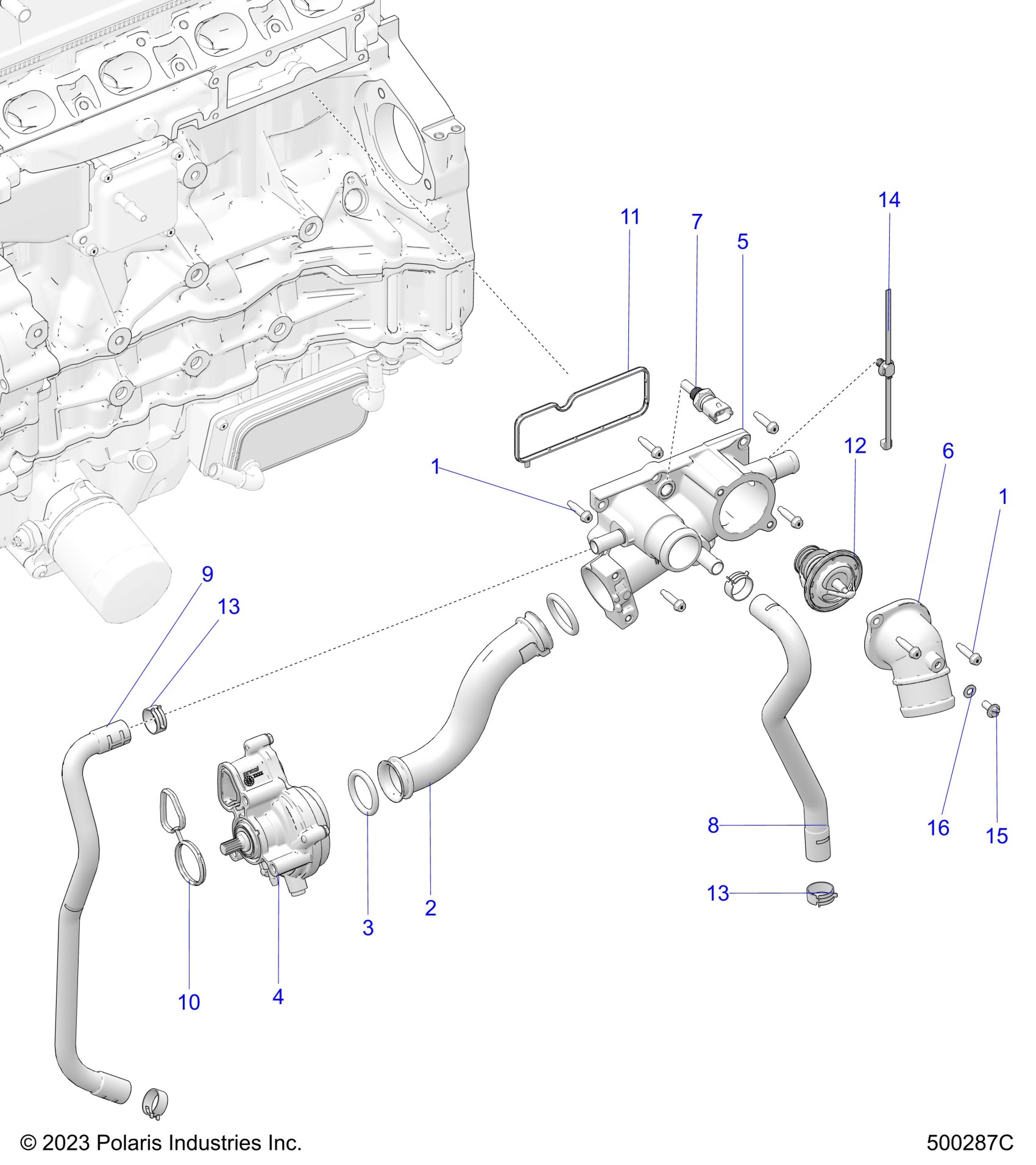

Polaris SLINGSHOT ROUSH EDITION (R01) - T24AALHB/GB ENGINE, WATER PUMP AND RELATED - T24AALHB/GB (500287C) Diagram

#

Description
Price

1

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.17

1

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.17

2

TUBE-TRANSFER [INCLUDES 3]

3024146

$62.21

3

O-RING

5815287

$23.81

4

ASM-PUMP,COOLANT,HIGHFLOW

3023613

$249.99

5

HOUSING-, THERMOSTAT

3023628

$154.99

6

COVER, THERMOSTAT

3023629

$36.41

7

SENSOR-THERMISTER

4010644

$91.97

8

HOSE-OIL COOLER,SUPPLY

5416615

$36.41

9

HOSE-OIL COOLER,SUPPLY

5416903

$40.46

10

GASKET, COOLANT PUMP

5814464

$7.14

11

GASKET, MODULE,COOLING

5814698

$10.32

12

THERMOSTAT

7052666

Unavailable

13

CLAMP-HOSE,SPRING .81

7081026

$7.94

13

CLAMP-HOSE,SPRING .81

7081026

$7.94

14

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

15

SCR-M6X1.0X13,SL/HX/FL-Z,BLEED

7520470

$4.76

16

WASHER-FLAT

7556578

$3.97
