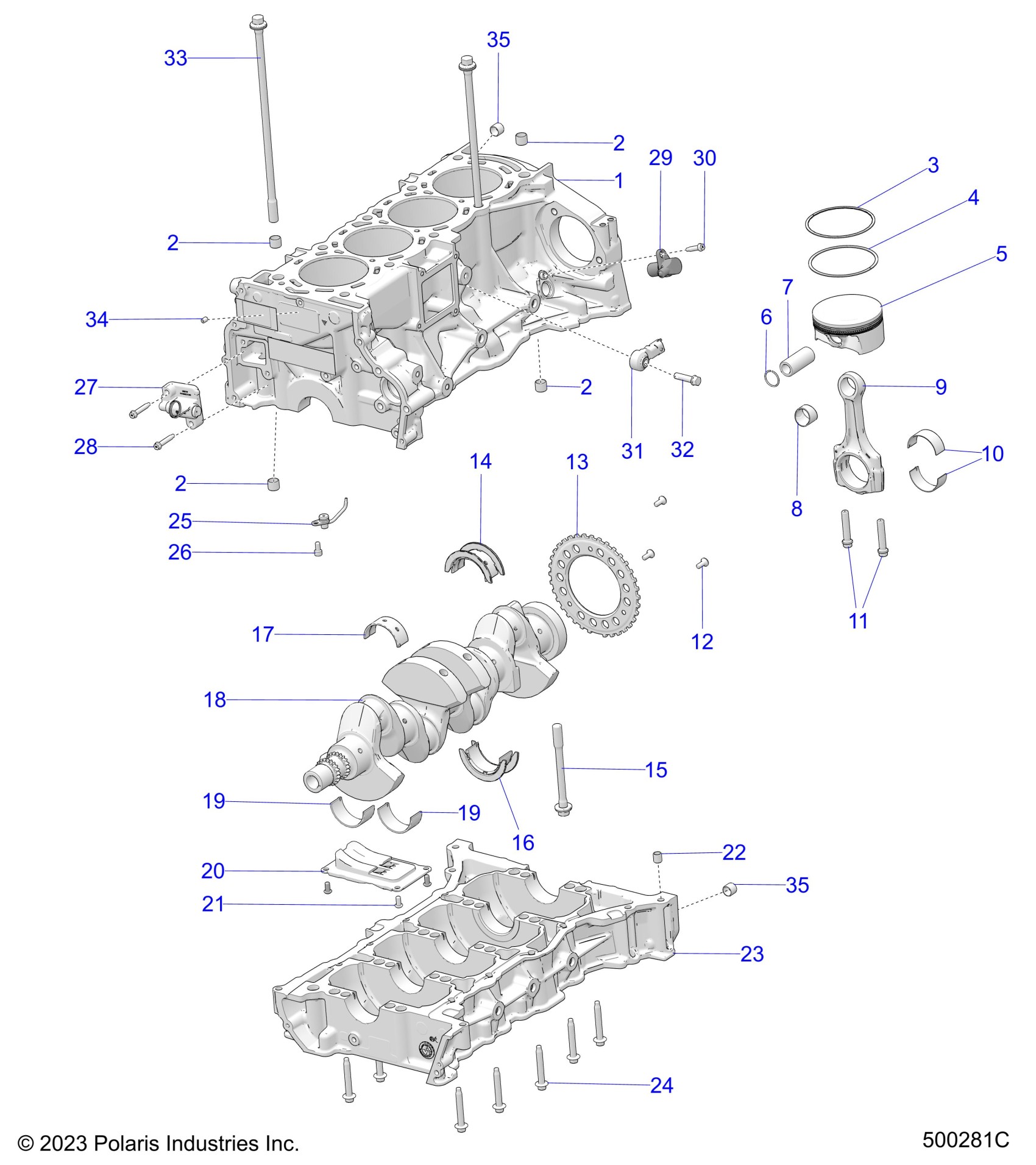

Polaris SLINGSHOT ROUSH EDITION (R01) - T24AALHB/GB ENGINE, CYLINDER BLOCK AND RELATED - T24AALHB/GB (500281C) Diagram

#

Description
Price

1

ASM-BLOCK,MACH [INCLUDES 2,15,23,33] [REQUIRES 2521817]

3024114

$1,049.99

2

DOWEL-HOLLOW, M15, SS

7663078

$4.76

2

DOWEL-HOLLOW, M15, SS

7663078

$4.76

2

DOWEL-HOLLOW, M15, SS

7663078

$4.76

2

DOWEL-HOLLOW, M15, SS

7663078

$4.76

3

RING-TOP

3023463

$39.99

4

RING-SECOND

3023464

$34.99

5

ASM., PISTON [INCLUDES 3-7]

3023462

$183.32

5

PISTON

3023198

Unavailable

6

RING-RTNG,RND,22.0X1.6,0600102

7710479

$7.14

7

PIN-PISTON

3023199

$29.99

8

BUSHING-WRIST PIN

----

Unavailable

9

ASM-ROD,CONNECTING,2 [INCLUDES 8 & 11]

3024356

$104.99

10

BEARING-CON ROD,RED

3514998-015

$21.81

10

BEARING-CON ROD,WHITE

3514998-016

$21.81

10

BEARING-CON ROD,BLUE

3514998-027

$21.81

10

BEARIN-CON ROD,YELLOW

3514998-053

$21.81

11

BOLT-CONROD MJ9X1.0X44

7520356

$23.81

12

SCR-CSK-M6X1 8.8

7520501

$3.17

13

WHEEL-CPS,36-1

3024233

$64.99

14

BEARING-MAIN,UPR,THRUST, BLACK

3023376-001

$21.81

14

BEARING-MAIN,UPR,THRUST, BLUE

3023376-002

$21.81

14

BEARING-MAIN,UPR,THRUST, GREEN

3023376-003

$21.81

14

BEARING-MAIN,UPR,THRUST, YELLOW

3023376-004

$21.81

14

BEARING-MAIN,UPR,THRUST, RED

3023376-005

$21.81

15

SCR-HXFL M12X1.5X123 10.9 SEMS

7527896

$7.14

16

BEARING-MAIN,LWR THRUST,GRADE 1 BLACK

3023374-001

$21.81

16

BEARING-MAIN,LWR THRUST,GRADE 2 BLUE

3023374-002

$21.81

16

BEARING-MAIN,LWR THRUST,GRADE 3 GREEN

3023374-003

$21.81

16

BEARING-MAIN,LWR THRUST,GRADE 4 YELLOW

3023374-004

$21.81

16

BEARING-MAIN,LWR THRUST,GRADE 5 RED

3023374-005

$21.81

17

BEARING-MAIN,UPR,GRADE 1 BLACK

3023375-001

$17.44

17

BEARING-MAIN,UPR,GRADE 2 BLUE

3023375-002

$17.44

17

BEARING-MAIN,UPR,GRADE 3 GREEN

3023375-003

$17.44

17

BEARING-MAIN,UPR,GRADE 4 YELLOW

3023375-004

$17.44

17

BEARING-MAIN,UPR,GRADE 5 RED

3023375-005

$17.44

18

CRANKSHAFT-MACH [TO 05/08/24]

3024307

$1,299.99

18

CRANKSHAFT-MACH,IH [FROM 05/08/24]

3024069

$1,299.99

19

BEARING-MAIN,LWR,GRADE 1 BLACK

3023373-001

$17.44

19

BEARING-MAIN,LWR,GRADE 2 BLUE

3023373-002

$17.44

19

BEARING-MAIN,LWR,GRADE 3 GREEN

3023373-003

$17.44

19

BEARING-MAIN,LWR,GRADE 4 YELLOW

3023373-004

$17.44

19

BEARING-MAIN,LWR,GRADE 5 RED

3023373-005

$17.44

19

BEARING-MAIN,LWR,GRADE 1 BLACK

3023373-001

$17.44

19

BEARING-MAIN,LWR,GRADE 2 BLUE

3023373-002

$17.44

19

BEARING-MAIN,LWR,GRADE 3 GREEN

3023373-003

$17.44

19

BEARING-MAIN,LWR,GRADE 4 YELLOW

3023373-004

$17.44

19

BEARING-MAIN,LWR,GRADE 5 RED

3023373-005

$17.44

20

ASM., REED VALVE

3023317

$53.24

21

SCR-TORX BTNHD,M6X12,0600129

7518330

$4.76

22

DOWEL-M11,H6

7052670

$5.56

23

BEDPLATE-CAST

----

Unavailable

24

SCR-HXFL-M8X1.25X50 8.8 DOG

7520503

$3.17

25

JET-PISTON COOLING,0.8

2521788

$48.56

26

SCREW-SH-M6X1.0X12 10.9 ZPB D204

7517739

$10.46

27

TENSIONER-CHAIN

3023189

$87.30

28

SCR-HXFL-M6X1.0X30 8.8 DOG

7520497

$3.17

29

SENSOR-CRANK POSITION,445MM

4015068

$135.54

30

SCR-HXFL-M6X1.0X20 8.8 DOG

7520496

$3.17

31

SENSOR-KNOCK BOSCH

2413713

$64.75

32

SCREW-M8X1.25X30,HX/FL-YD

7517262

$5.56

33

SCR-HXFL-M12X1.5X300 10.9 SEMS

3024115

$7.94

34

JET-OIL,M6X1.0,1.0 ORIFICE

2521817

$5.56

35

DOWEL-HOLLOW,M15

7662300

$29.99

35

DOWEL-HOLLOW,M15

7662300

$29.99
