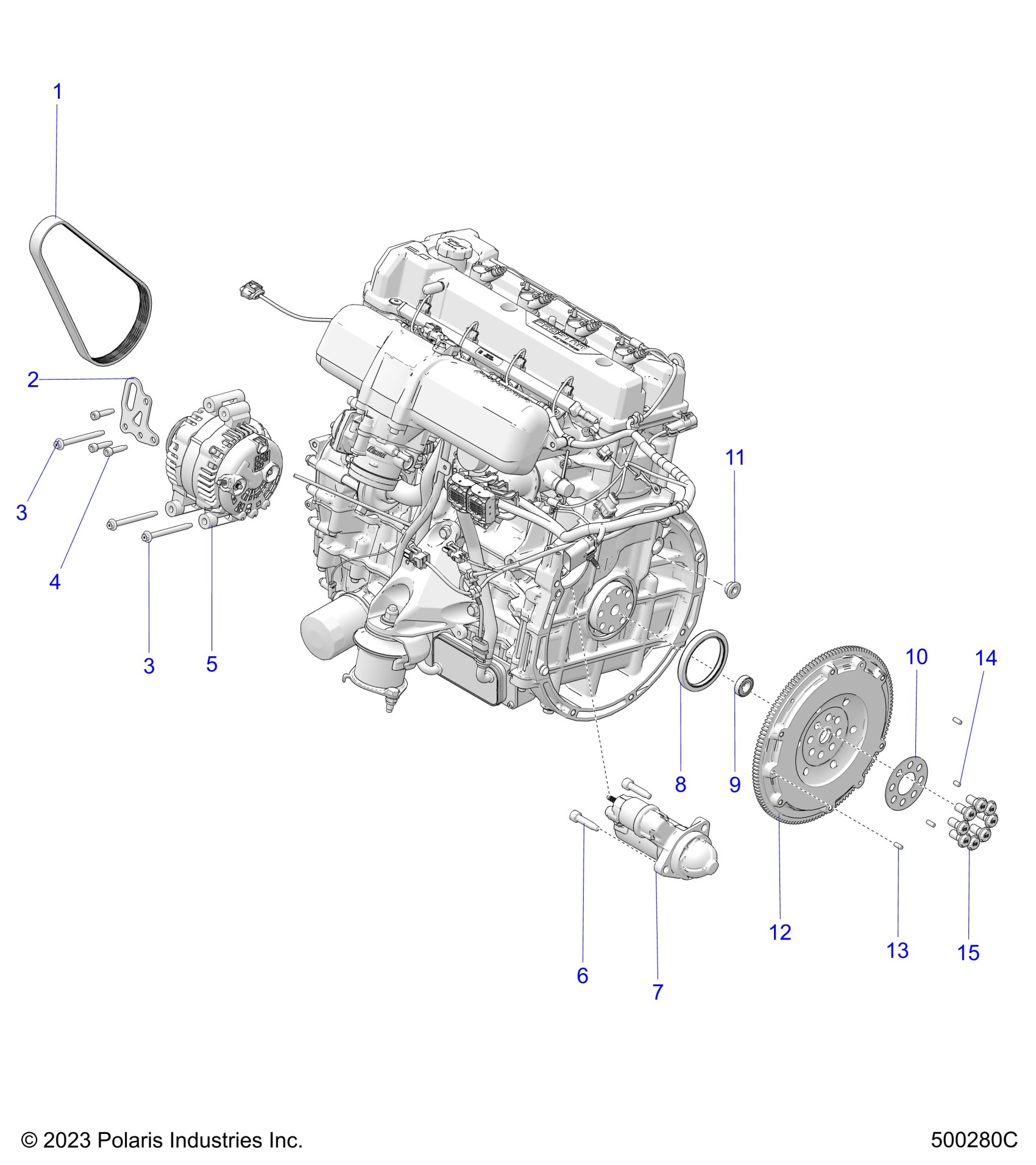

Polaris SLINGSHOT ROUSH EDITION (R01) - T24AALHB/GB ENGINE, ALTERNATOR, FLYWHEEL, and STARTER - T24AALHB/GB (500280C) Diagram

BELT-ALT,STRETCH

5418710

$47.49

BRACKET-ALT,MANIFOLD,LIFT

5263743

$82.29

SCR-HXFL-M8X1.25X90 8.8 DOG

7520504

$3.17

SCR-HXFL-M8X1.25X90 8.8 DOG

7520504

$3.17

SCR-SHCS-M8X1.25X30 8.8 DOG

7520502

$3.17

ALTERNATOR-140AMP [TO 12/09/2024]

4017547

$549.99

ALTERNATOR-140AMP [FROM 12/09/2024]

4081616

$549.99

SCR-SHFL-M10X1.5X35 8.8 DOG

7520506

$3.97

STARTER

4017137

$429.99

SEAL-MAIN,80MM

3610274

$66.65

BEARING-PILOT

3514986

$34.90

PLATE-FLYWHEEL

5265252

$54.99

PLUG-HEX SCKT,W/O-RING,M20X1.5

7052643

$7.94

FLYWHEEL-RING,GEAR [INCLUDES 9,13 & 14]

3023447

$189.99

PIN-DOWEL,M6X14

5141966

$3.17

PIN-DOWEL,M6X10

5140875

$5.56

SCR-HXFL-M12X1.0X25 10.9,NYLOC [SINGLE-USE FASTENERS]

3023657

$7.14
