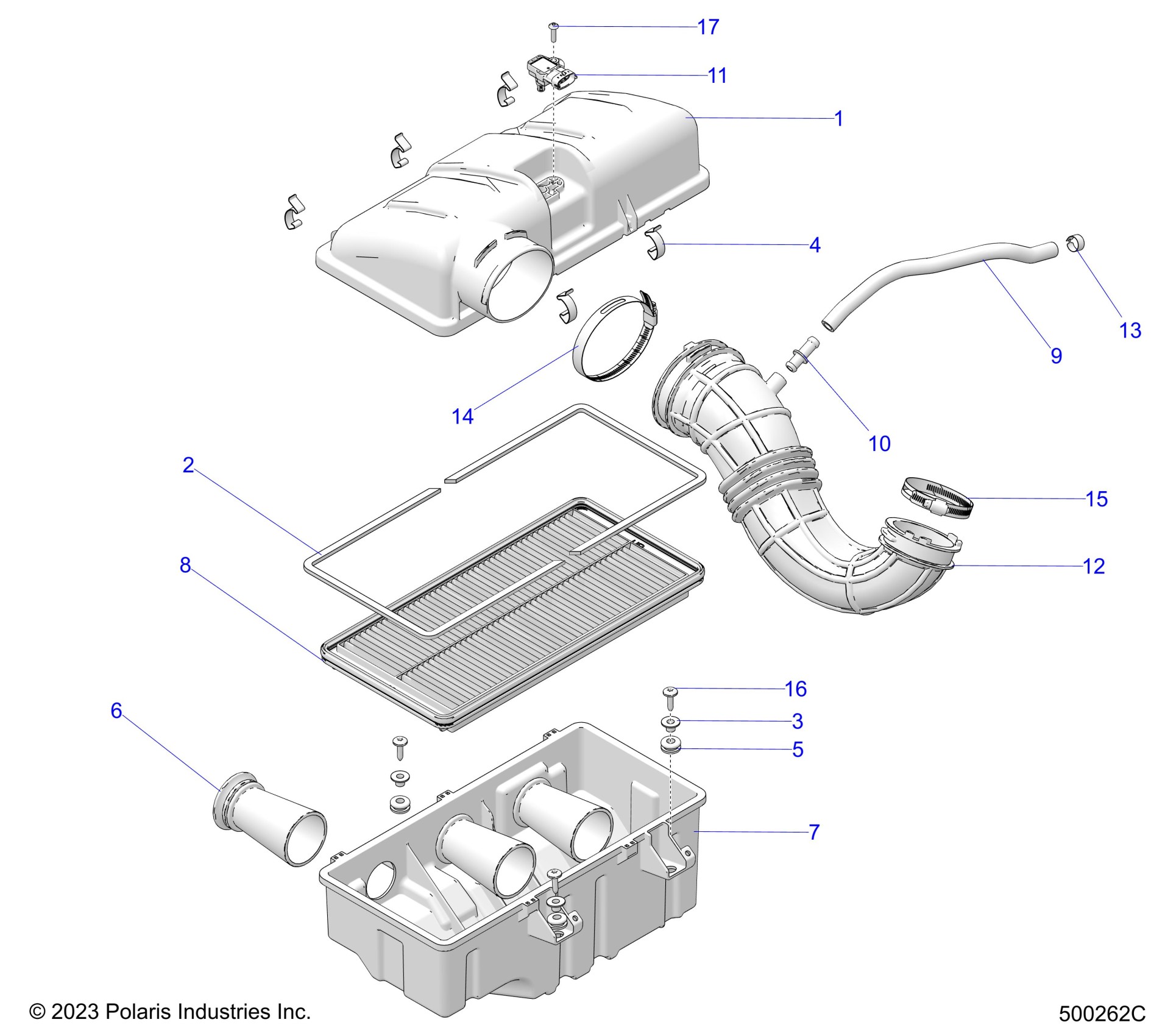

Polaris SLINGSHOT ROUSH EDITION (R01) - T24AALHB/GB ENGINE, AIR INTAKE - T24AALHB/GB (500262C) Diagram

Description

Price

ASM., AIRBOX [INCLUDES 1-8]

1241136

$199.99

ASM-COVER, SEALS [INCLUDES 2]

1206268

$57.76

SEAL-FILTER, COVER

5814959

$23.81

BSHG-FLG,21X10X11

5137652

Unavailable

CLIP, AIRBOX

5256201

$7.14

GROMMET, BASE, TOP

5414160

$3.97

HORN,AIR-INTAKE

5416092

$72.60

AIRBOX

5465019

$89.99

FILTER-AIR INTAKE

7082252

Unavailable

HOSE-BREATHER

5416062

$36.41

FITTING-BREATHER

7052558

$10.51

SENSOR-TMAP DSS3-TF

2411528

$97.13

HOSE-INTAKE

5418015

$72.60

CLAMP-HOSE,SPRING,.69"

7081533

$3.97

CLAMP-WORMDRIVE,105DIA,9/16WD

7082295

$32.37

CLAMP-WORMDRIVE,SAE-48,9/16WD

7082324

$6.46

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

SCREW-PLASTITE,5.0MMX20-PN-T25

7519952

$3.97
